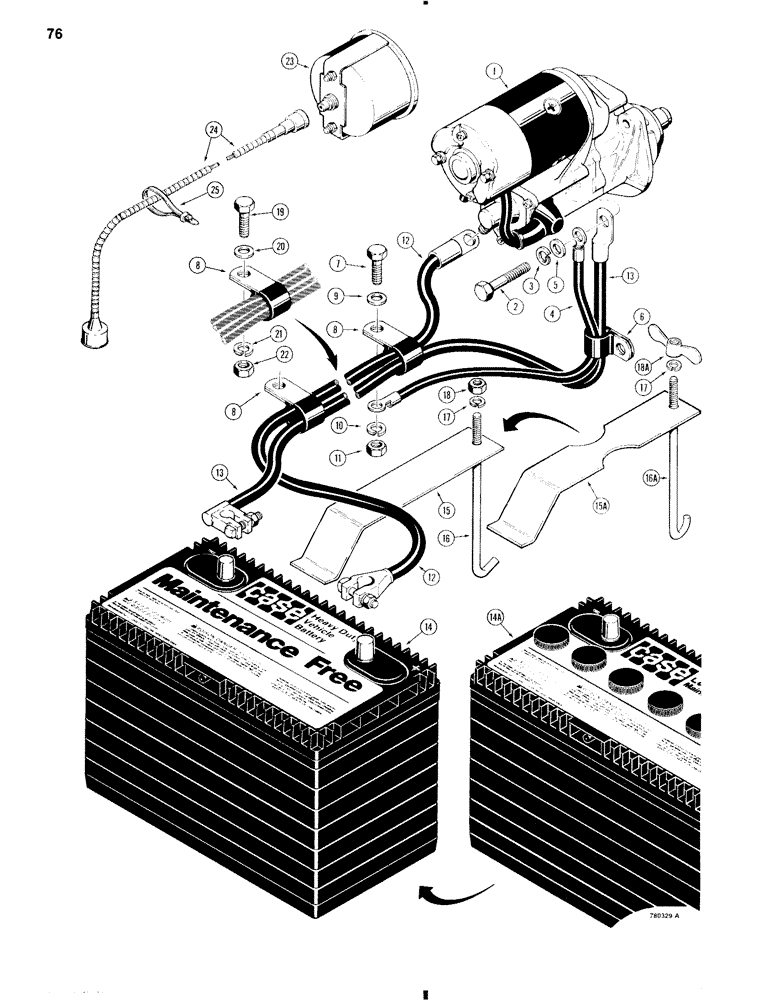

Запчасти Case W11 (076) - BATTERY, STARTER, CABLES, AND TACHOMETER (04) - ELECTRICAL SYSTEMS

1

R39341

STARTING MOTOR

STARTER - parts list Fig. 72

1шт.

87297364

REMAN-STARTER

Remanufactured STARTER - NA Only

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

L40793

ELECTRICAL WIRE

CABLE - ground

1шт.

5

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

6

51200329

CLIP

CLAMP - cable

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

51200320

CLAMP

- cable

3шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

L100862

ELECTRICAL WIRE

CABLE -, Serial Range: starter-battery

1шт.

13

L14542

CABLE

- ground

1шт.

14

NSS

NOT SOLD SEPARAT

BATTERY, used before tractor SN 9141078, has flat top, order

1шт.

A145205 dry battery and L109248 bar

1шт.

14a

A145205

WET BATTERY

- with caps, dry type, service battery for use before

1шт.

tractor SN 9141078

1шт.

14a

NSS

NOT SOLD SEPARAT

BATTERY - with caps, used on tractor SN 9141078 and after, order

1шт.

A38411 dry battery

1шт.

14a

A38411

DRY BATTERY

- with caps, dry type, service battery for use on tractor

1шт.

SN 9141078 and after

1шт.

15

L76373

STRAP

BAR - retaining, flat top battery only

1шт.

15a

L109248

STRAP

BAR - retaining, batteries with caps

1шт.

16

L60509

BOLT

- J-type, used with item 15 only

1шт.

16a

T31481

SCREW

BOLT - J-type, used with item 15A only

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

1шт.

18a

L77802

NUT

WING NUT - 5/16" - 18 NC, if used

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

20

95-8

WASHER,1/2"

flat 1/2"

1шт.

21

92-8

LOCK WASHER,1/2"

1шт.

22

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

23

A11190

TACHOMETER

1шт.

24

L74736

CABLE

tachometer

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, tachometer

1шт.
