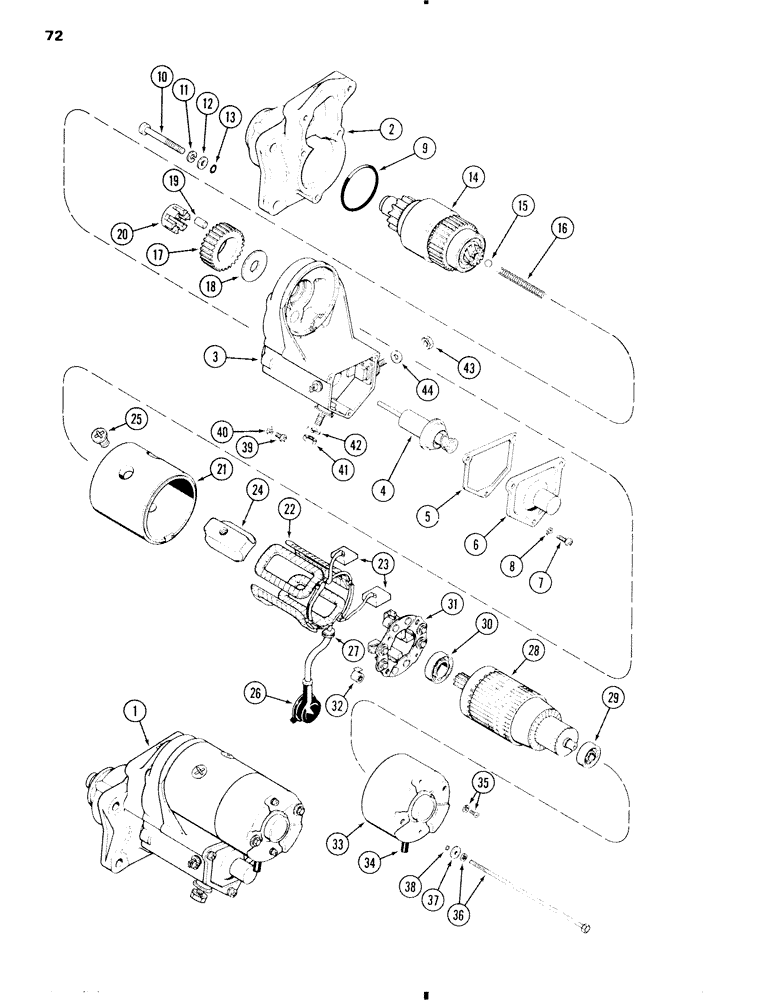

Запчасти Case W11 (072) - R39341 STARTER (04) - ELECTRICAL SYSTEMS

1

R39341

STARTING MOTOR

STARTER ASSEMBLY - new (Nippondenso No. 028000-5880), Incls. Ref. 2-44

1шт.

1

87297364

REMAN-STARTER

Remanufactured STARTER

1шт.

1

87297365

CORE-STARTER

Return Part Number

1шт.

1

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

1

104451A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104451A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

1

A47496

STARTER MOTOR

STARTER ASSEMBLY - remanufactured, Incls. Ref. 2-44

1шт.

1

A47497

CORE-STARTER

Return Part Number - starter (Use this number to return starter core) Incls. Ref. 2-8

1шт.

2

A47227

HOUSING

HOUSING - drive end

1шт.

3

A47228

SWITCH

SWITCH ASSEMBLY - magnetic, Incls. Ref. 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING -, Serial Range: switch-housing

1шт.

A47243

BOLT

BOLT ASSEMBLY - through, Incls. Ref. 10-13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT - through

1шт.

Note - In the Artwork, Ref #10 & #11 should be Ref #36. Ref #12 Should be #37. Ref #13 should be #38. Ref #36 Bolt should be #10, and the lock washer should be #11. Ref #37 should be #12. Ref #38 should be #13 05/28/96

1шт.

11

592-24

WASHER

WASHER - 1/4 inch lock

1шт.

12

195-516

WASHER,#12

WASHER - 1/4 x 9/16 x 1/16 inch (6.4 x 14.3 x 1.6 mm)

1шт.

Note - In the Artwork, Ref #10 & #11 should be Ref #36. Ref #12 Should be #37. Ref #13 should be #38. Ref #36 Bolt should be #10, and the lock washer should be #11. Ref #37 should be #12. Ref #38 should be #13 05/28/96

1шт.

13

A47127

O-RING

O-RING - bolt seal

1шт.

Note - In the Artwork, Ref #10 & #11 should be Ref #36. Ref #12 Should be #37. Ref #13 should be #38. Ref #36 Bolt should be #10, and the lock washer should be #11. Ref #37 should be #12. Ref #38 should be #13 05/28/96

1шт.

14

A47231

CLUTCH

CLUTCH ASSEMBLY - drive

1шт.

15

211-10

BALL

BALL - thrust, 3/8 inch (9.53 mm) diameter steel

1шт.

16

A47232

SPRING

SPRING - clutch drive, 2-13/16 inch (71.44 mm) free length

1шт.

17

A47233

GEAR

PINION - idler

1шт.

18

A47234

WASHER

WASHER - thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER - idler pinion bearing

6шт.

20

A47236

RETAINER

RETAINER - roller bearings

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - with coil and brushes, Incls. Ref. 21-26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE - lock

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY - starter, Incls. Ref. 29 & 30

1шт.

29

A47248

BALL BEARING

BEARING - commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY - brush (Includes 2 brushes), Incls. Ref. 32

1шт.

32

A47249

SPRING

SPRING - tension, brush

4шт.

33

A47237

FRAME

FRAME - commutator end

1шт.

34

A47238

COVER

COVER - end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY - brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY - commutator end cover to drive end housing, Incls. Ref. 36-38

3шт.

36

NSS

NOT SOLD SEPARAT

BOLT - with lock washer

1шт.

Note - In the Artwork, Ref #10 & #11 should be Ref #36. Ref #12 Should be #37. Ref #13 should be #38. Ref #36 Bolt should be #10, and the lock washer should be #11. Ref #37 should be #12. Ref #38 should be #13 05/28/96

1шт.

37

195-516

WASHER,#12

WASHER - 1/4 x 9/16 x 1/16 inch (6.4 x 14.3 x 1.6 mm)

1шт.

Note - In the Artwork, Ref #10 & #11 should be Ref #36. Ref #12 Should be #37. Ref #13 should be #38. Ref #36 Bolt should be #10, and the lock washer should be #11. Ref #37 should be #12. Ref #38 should be #13 05/28/96

1шт.

38

A47130

O-RING

O-RING - bolt seal

1шт.

Note - In the Artwork, Ref #10 & #11 should be Ref #36. Ref #12 Should be #37. Ref #13 should be #38. Ref #36 Bolt should be #10, and the lock washer should be #11. Ref #37 should be #12. Ref #38 should be #13 05/28/96

1шт.

39

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW - No. 8-32 x 3/8 inch pan head

1шт.

40

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Battery terminal Jam, 3/8"-16, G5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

825-1110

NUT,M10, Cl 8

NUT, , Field coil terminal M10, Cl 8

1шт.

44

A10454

WAVE WASHER

WASHER - field coil terminal

1шт.
