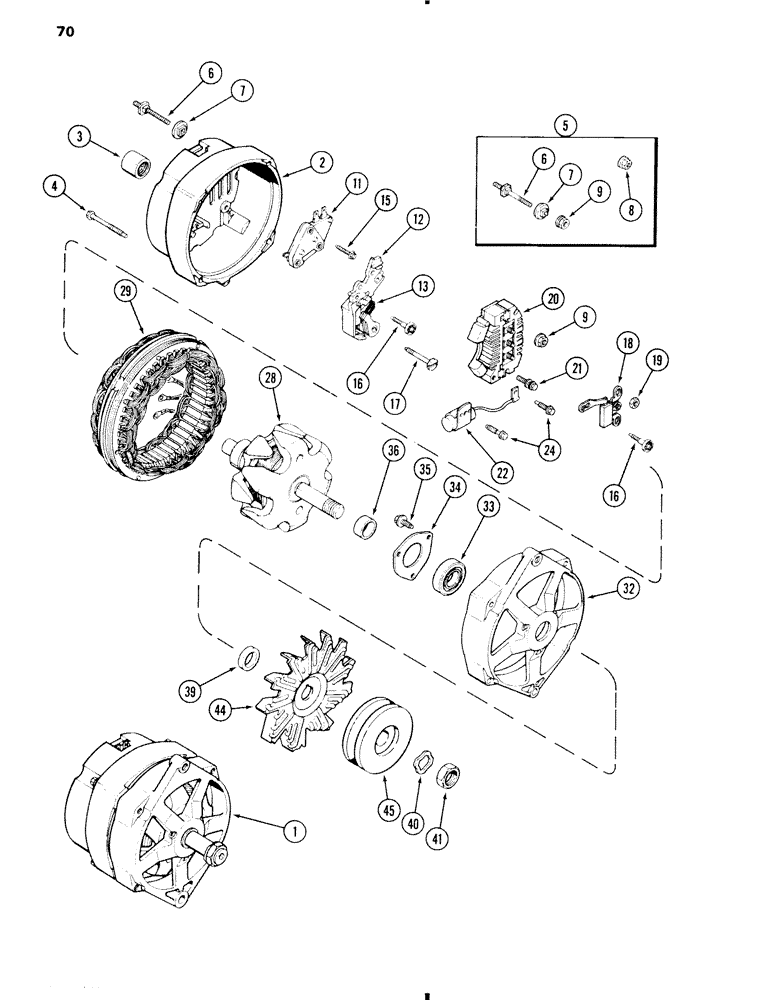

Запчасти Case W11 (070) - A167153 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A167153

ALTERNATOR

ALTERNATOR ASSEMBLY - J I Case installed, 12 volt-63 Ampere, Incls. Ref. 1-41

1шт.

(Delco 1105160)(Order A46932 alternator, A51560 fan and A51561 pulley)

1шт.

1

A46932

ALTERNATOR

ALTERNATOR ASSEMBLY - repair, 12 volt-63 ampere (Delco No. 1105422) Incls. Ref. 2-41

1шт.

Ref #1A - A47436 Reman Alternator

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 61 ampere,

1шт.

1

87297245

CORE-ALTERNATOR

Return Number, Alternator, 12 volt, 61 ampere,

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere,

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 volt 63 ampere,

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volts 63 ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number, 12 volts 63 ampere

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere,

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through, No. 10-24 x 1-3/4 inch hex head (With washer)

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT - battery, Incls. Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal

1шт.

11

A45213

REGULATOR

REGULATOR - voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY - brush, Incls. Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH - alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A47581

SCREW,#8 - 32 x 1.43"

SCREW - brush holder attaching

1шт.

18

A48339

DIODE

DIODE - trio

1шт.

19

129-16

NUT,#8-32

NUT, , Diode to rectifier bridge #8-32

3шт.

20

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE - alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket and lead

2шт.

28

A46935

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

29

A46936

STATOR

STATOR ASSEMBLY - alternator

1шт.

32

A46933

FRAME

FRAME - drive end

1шт.

33

A47579

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING - ball, drive end

1шт.

34

R15101

PLATE

PLATE - bearing retainer

1шт.

35

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW - bearing plate retaining

3шт.

36

A48261

COLLAR

COLLAR - rotor shaft, inner

1шт.

39

A47580

COLLAR

COLLAR - rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

41

A25546

NUT

NUT - pulley and fan retaining

1шт.

44

A43384

FAN

FAN - ventilating

1шт.

45

A51561

PULLEY

PULLEY - drive

1шт.
