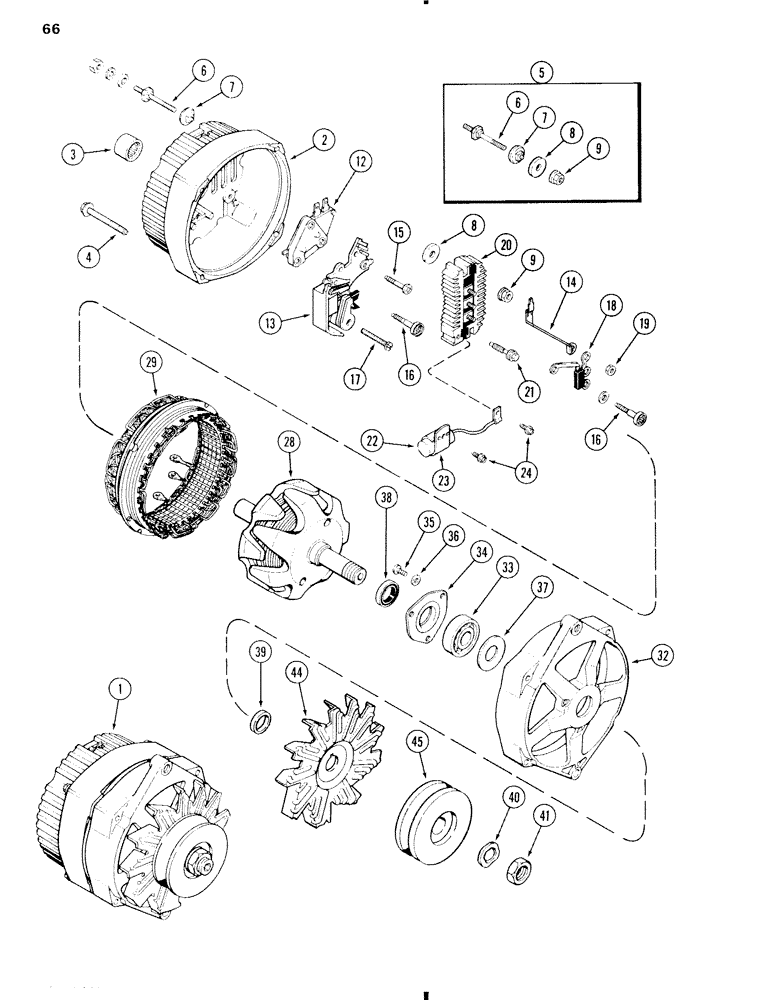

Запчасти Case W11 (066) - D77810 ALTERNATOR, (USES U.S. STANDARD HARDWARE) (04) - ELECTRICAL SYSTEMS

1

D77810

ALTERNATOR ASSEMBLY - new (Delco-Remy No. 1102927)(J I Case installed)(Order A47623 alternator, A43384 fan, A51561 pulley

1шт.

814-8025 bolt, 592-26 lock washer, 525-25 nut and 592-24 lock washer)

1шт.

1

D78005

ALTERNATOR

ALTERNATOR ASSEMBLY - new (Delco-Remy No. 1102920)(Used for repairs only)(Order A47623 alternator, 814-8025 bolt, 592-26

1шт.

lock washer, 525-24 nut and 592-24 lock washer)

1шт.

1

A47436

ALTERNATOR

Alternator Assembly - remanufactured

1шт.

1

A47437

CORE-ALTERNATOR

Alternator - core number (Used to return alternator for credit), Incls. Ref. 2-41

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 61 ampere

1шт.

1

87297245

CORE-ALTERNATOR

Return Number, Alternator 12 volt, 61 ampere,

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactired 12 VOLT, 63 AMP Alternator

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMP ALTERNATOR - NA Only

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere,

1шт.

1

103804A1C

CORE-ALTERNATOR

1шт.

1

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47041

FRAME

FRAME ASSEMBLY - slip ring end

1шт.

3

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through, No. 10-24 x 1-3/4 inch hex head with washer

4шт.

5

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Incls. Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY - terminal

2шт.

12

A45213

REGULATOR

REGULATOR - voltage

1шт.

13

A47042

HOLDER

HOLDER ASSEMBLY - brush (Includes brushes)

1шт.

14

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

182-558

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

SCREW - brush holder attaching

1шт.

18

A48339

DIODE

DIODE - trio

1шт.

19

129-16

NUT,#8-32

NUT, , Trio diode to rectifier bridge #8-32

3шт.

20

A45394

RECTIFIER

RECTIFIER BRIDGE - alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge attaching

1шт.

22

A45017

CAPACITOR

CAPACITOR - alternator

1шт.

23

A45227

CLAMP

BRACKET - capacitor mounting

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket and lead

2шт.

28

A47047

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

29

A47048

ARMATURE

STATOR ASSEMBLY - alternator

1шт.

32

A47839

SPARE PART

FRAME - drive end

1шт.

33

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

34

A44433

PLATE

PLATE - bearing retaining

1шт.

35

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate retaining

3шт.

36

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16 inch (5.6 x 11.1 x 1.6 mm)

3шт.

37

A45232

WASHER

WASHER - grease slinger, bearing

1шт.

38

A43693

SEAL

SEAL - oil

1шт.

39

A72047

COLLAR

COLLAR - rotor shaft

1шт.

40

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

41

A25546

NUT

NUT - pulley and fan retaining

1шт.

44

A43384

FAN

FAN - ventilating

1шт.

45

A51561

PULLEY

PULLEY - drive

1шт.
