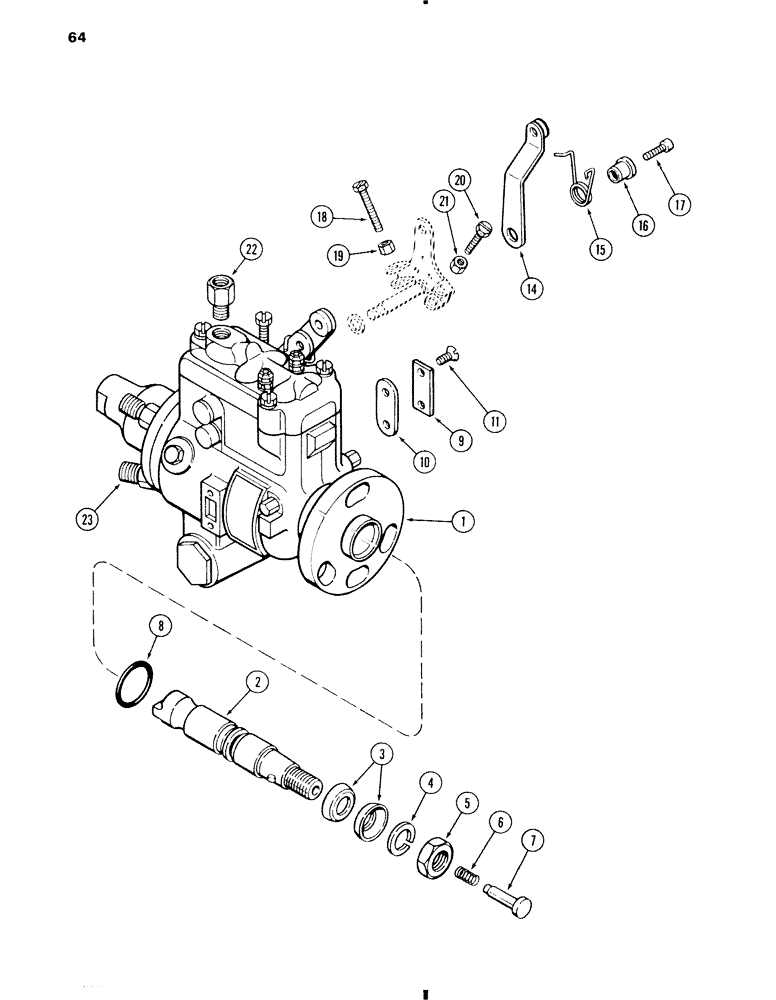

Запчасти Case W11 (064) - INJECTION PUMP, 207 DIESEL ENGINE, ENGINE SERIAL NO. 4310686 AND AFTER (03) - FUEL SYSTEM

1

A156554

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (With electrical shuf-off), Incls. Ref. 2-23

1шт.

2

A44710

SHAFT

ASSEMBLY - pump drive

1шт.

3

R14711

SEAL

- pump shaft

2шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

129-126

NUT,9/16"-18, G8

- 9/16 inch NF hex

1шт.

6

G48502

SPRING

- thrust bumper, 1-3/16 inch (30.16 mm) free length

1шт.

7

A44653

PLUNGER

BUMPER - thrust, pump drive shaft

1шт.

8

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube (o-ring)

1шт.

9

73452

COVER

- timing hole

1шт.

10

73453

GASKET

- timing hole cover

1шт.

11

A47591

SCREW

- timing hole cover

2шт.

14

A47180

LEVER ASSY.

LEVER - throttle

1шт.

15

G48505

SPRING

- throttle lever

1шт.

16

G49621

RETAINER

- throttle lever spring

1шт.

17

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - retainer

1шт.

18

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- high idle adjustment No.10-32 x 1-3/4 inch

1шт.

19

51200274

NUT

- lock, high idle adjustment screw No. 10-32, hex

1шт.

20

A48268

ADJUSTMENT SCREW,#10 - 32 x 1.531"

SCREW - low idle adjusting

1шт.

21

NSS

NOT SOLD SEPARAT

NUT - lock, low idle adjusting screw

1шт.

22

A47592

ROD, CONNECTING

CONNECTOR - return line

4шт.

23

A47593

CONNECTOR, ELEC

CONNECTOR - fuel lines

4шт.
