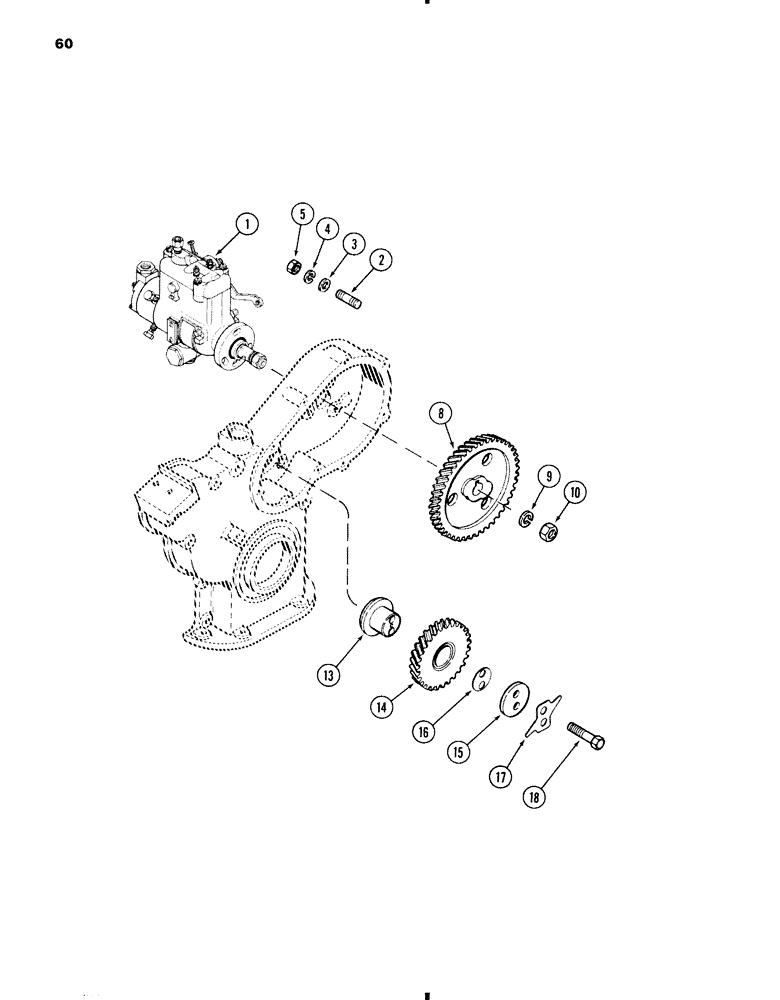

Запчасти Case W11 (060) - INJECTION PUMP DRIVE, 207 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See figure 62 and 64)

1шт.

2

G102128

BOLT

- pump mounting

3шт.

3

A30043

WASHER

- mounting studs (Clipped)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- 3/8 inch NC hex

3шт.

8

G2076

GEAR

- drive, injection pump

1шт.

9

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

10

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16 inch NF hex jam

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSEMBLY - idler, with bushing

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.14 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.16 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.18 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.23 mm) .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.
