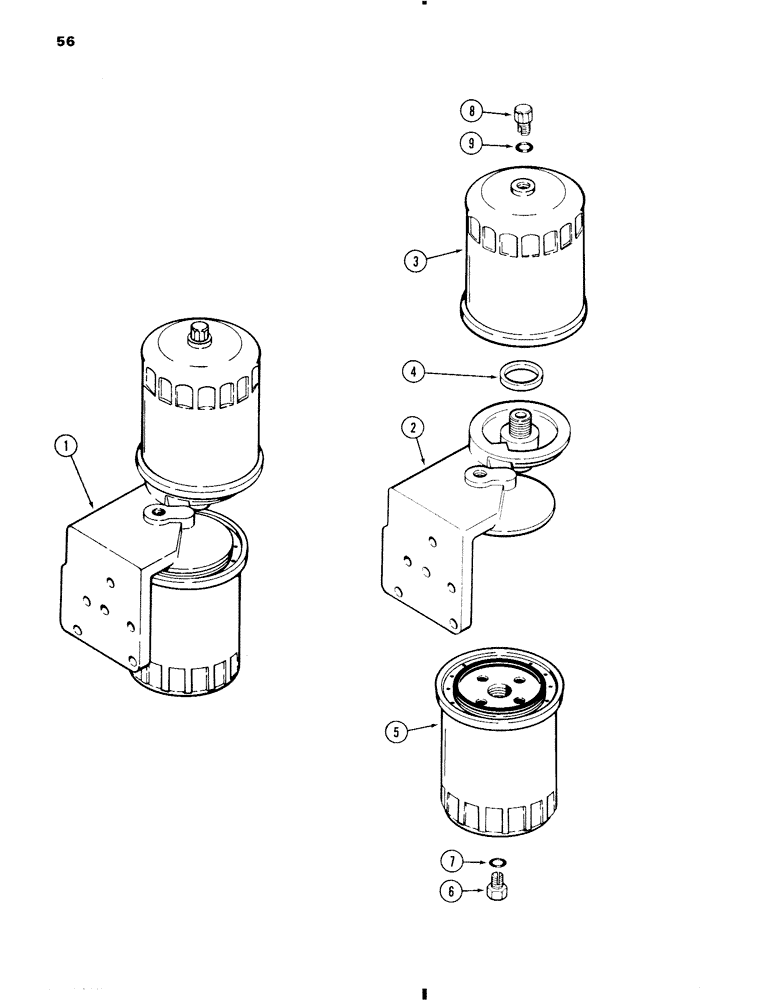

Запчасти Case W11 (056) - FUEL FILTER (03) - FUEL SYSTEM

1

A154934

FILTER

ASSEMBLY - fuel, Incls. Ref. 2-9

1шт.

2

A154909

HEAD

- filter base (Order Ref 1)

1шт.

A151281

FUEL FILTER

FILTER KIT - fuel, Incls. Ref. 3-5

1шт.

3

A39867

FUEL FILTER

ASSEMBLY - secondary, 15/16 inch threads (Order A151281)

1шт.

4

A42315

GASKET

-, Serial Range: filter-head

1шт.

5

A39868

FUEL FILTER

ASSEMBLY - primary, 13/16 inch threads (Order A151281)

1шт.

6

G49080

PLUG

- drain, primary filter, 3/8 inch NC, 12 point head, nylon

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Drain, Secondary filter, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.
