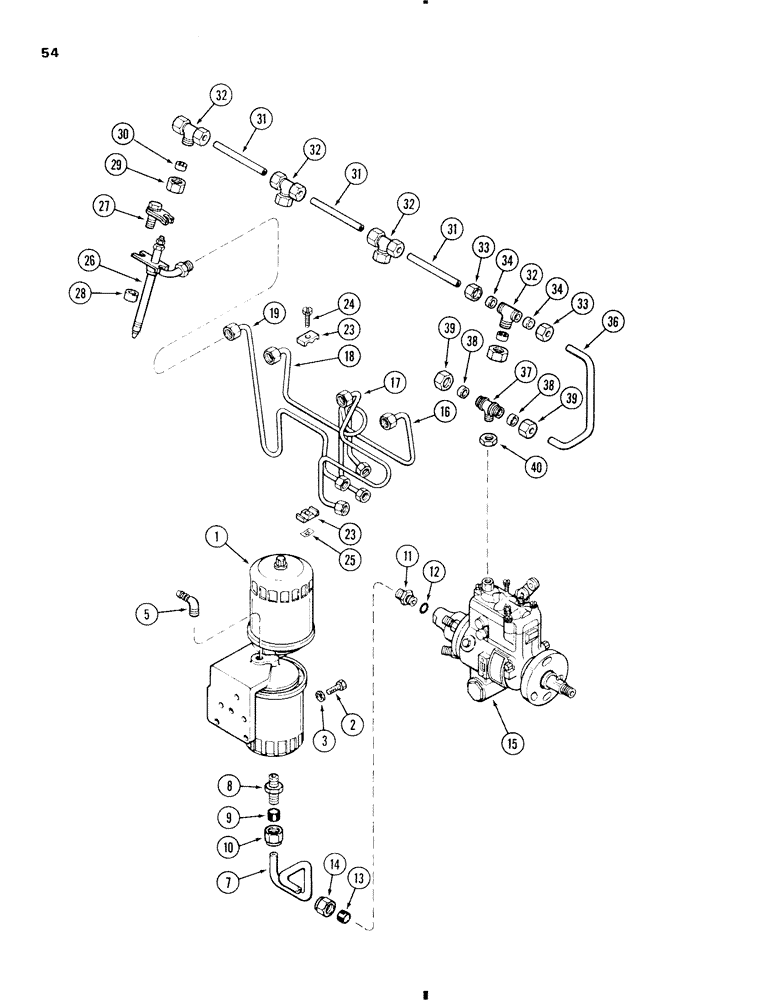

Запчасти Case W11 (054) - FUEL INJECTION AND FILTER SYSTEM, 207 DIESEL ENGINE, ENGINE S/N 4310686 AND AFTER (03) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (Fig. 56)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

5

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 PT x 1/4 inch hose end

1шт.

7

A154898

TUBE

LINE -, Serial Range: filter-pump

1шт.

8

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - straight, 9/16 thread x 1/4 inch PT, Incls. Ref. 9 & 10

1шт.

9

222-103

SLEEVE,5/16" Tube

1шт.

10

222-113

TUBE NUT,9/16"-24

NUT - tube retaining

1шт.

11

A51986

FITTING

- pump inlet

1шт.

12

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk (10.52 x 1.83 mm)

1шт.

15

REF

INSTRUCTION

PUMP ASSEMBLY - injection (Fig. 64)

1шт.

16

A153634

LINE

TUBE ASSEMBLY - injection pump to No. 1 cylinder

1шт.

17

A153635

LINE

TUBE ASSEMBLY - injection pump to No. 2 cylinder

1шт.

18

A153636

LINE

TUBE ASSEMBLY - injection pump to No. 3 cylinder

1шт.

19

A153637

LINE

TUBE ASSEMBLY - injection pump to No. 4 cylinder

1шт.

23

A58709

BRACKET

CLAMP - fuel injection lines

6шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, No. 10 x 1 inch round head

2шт.

25

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - No. 10 Tinnerman

2шт.

26

REF

INSTRUCTION

NOZZLE ASSEMBLY - injector (Fig. 58)

4шт.

27

A37837

CLAMP

ASSEMBLY - injector nozzle

4шт.

28

A37839

SPACER

- nozzle clamp

4шт.

29

A58961

NUT

- injector nozzle

4шт.

30

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injector nozzle

4шт.

31

A38644

TUBE

- fuel leak-off

3шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CONNECTOR - nozzle and leak-off lines junction (T-Type)

4шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch (6.35 mm) tube

8шт.

34

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

8шт.

36

A142906

TUBE

- fuel leak-off (at pump)

1шт.

37

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSEMBLY - fuel leak-off line (at pump) Incls. Ref. 38 & 39

1шт.

38

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

2шт.

39

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch (6.35 mm) tube

2шт.

40

A38160

LOCK NUT

- sealing, 1/8 inch PT (at pump)

1шт.
