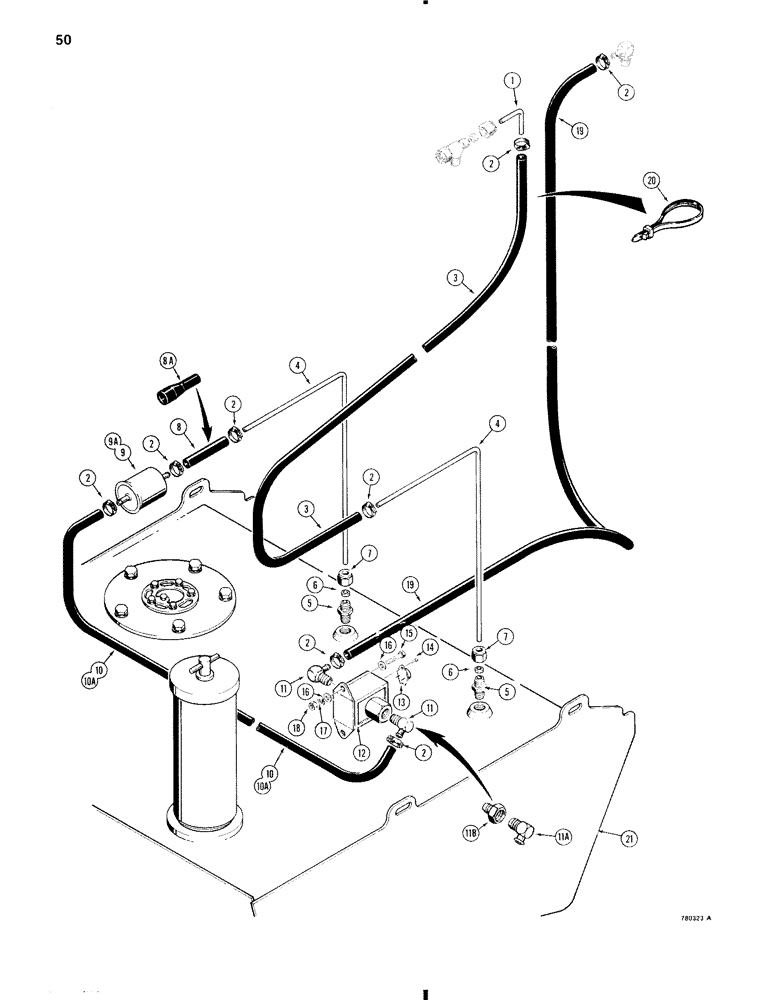

Запчасти Case W11 (050) - FUEL LINES (03) - FUEL SYSTEM

1

L74248

TUBE,0.25" OD x 1.5, 1.5" L

- at engine

1шт.

2

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

8шт.

3

D69490

HOSE

- 1/4" (6 mm) ID x 42" (1067 mm) long

1шт.

4

L77779

FUEL TUBE,0.25" OD x 12.6, 7.5" L

TUBE - tank inlet and outlet

2шт.

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - tube

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

6

222-102

SLEEVE,1/4" Tube

1шт.

7

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

8

L79326

HOSE

- 1/4" (6 mm) I.D. x 3" (76 mm) long, used with Ref. 9 only

1шт.

8a

L104714

ADAPTER

HOSE - special adapter, 1/4" (6 mm) ID to 3/8" (10 mm) ID, used with Ref. 9A only

1шт.

Part of Fuel Filter Kit, P/N L104852

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, 1/4" (6 mm) inlet and outlet tubes, order, L104852 kit below

1шт.

9a

L104831

FILTER

- fuel, 3/8" (10 mm) inlet and outlet tubes

1шт.

Part of Fuel Filter Kit, P/N L104852

1шт.

10

L79327

HOSE

- 1/4" (6 mm) ID x 18" (457 mm) long, used with Ref. 9 only

1шт.

10a

L104713

HOSE

- 3/8" (10 mm) ID x 16" (406 mm) long, used with Ref. 9A only

1шт.

Part of Fuel Filter Kit, P/N L104852

1шт.

11

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

FITTING - 90 degree, used with Ref. 9 and 10 only

2шт.

11a

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree, used with Ref. 9A, and 10A only

1шт.

Part of Fuel Filter Kit, P/N L104852

1шт.

11b

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

REDUCER - 1/4" NPT to 1/8" NPT, used with Ref. 9A and 10A only

1шт.

Part of Fuel Filter Kit, P/N L104852

1шт.

12

S226800

PUMP

ASSEMBLY - fuel, Incls. Ref. 13 & 14

1шт.

13

D72785

TRANSISTOR

- fuel pump

1шт.

14

163-17

SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

BOLT - hex head, No. 6 - 32 NC x 3/8"

2шт.

15

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

26-104

NUT - hex, 1/4" - 20 NC

2шт.

19

D64267

FUEL HOSE,0.25" ID x 31.00", SAE 30R7

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

REF

INSTRUCTION

TANK - fuel, parts list Fig. 49

1шт.

L104852

FILTER

KIT - fuel filter, Includes: Ref. 8A, 9A, 10A, 11A, and 11B

1шт.
