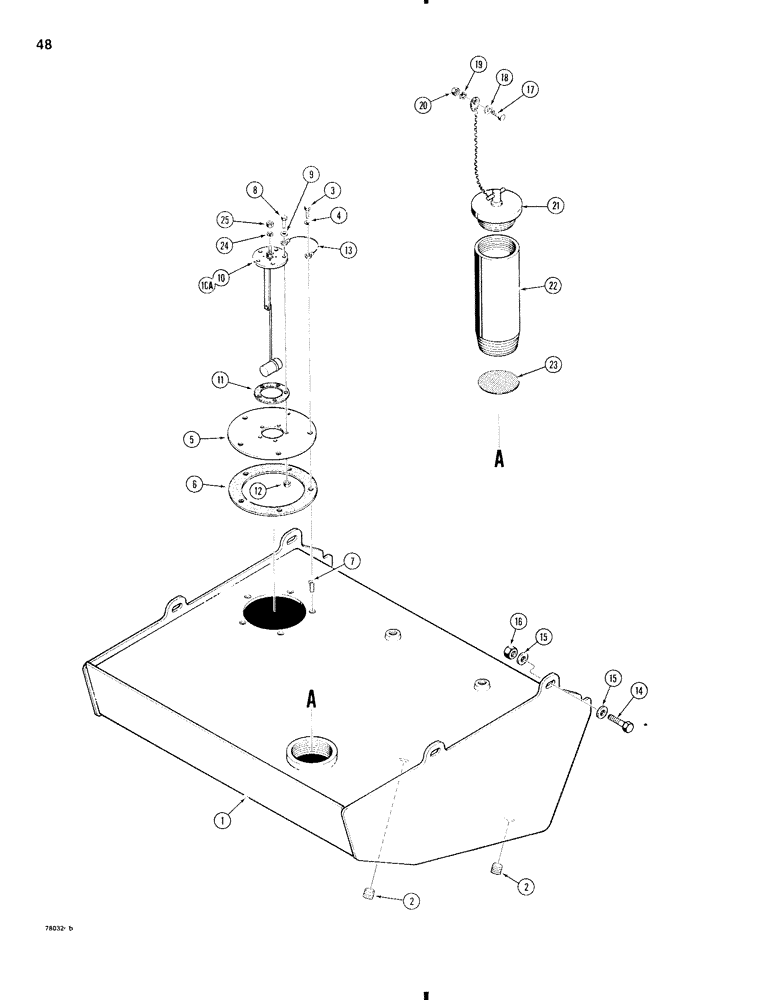

Запчасти Case W11 (048) - FUEL TANK (03) - FUEL SYSTEM

L60674

TANK

ASSEMBLY - fuel, Incls. 1-13

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

2

221-6

X,Sq Hd, 1"-11 1/2 NPTF

PLUG - square socket head, 1" NPT

2шт.

3

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

5

L77441

PLATE

- sender

1шт.

6

L79876

GASKET,4.57mm Thk

- plate

1шт.

7

L13176

NUT

- special, 1/4" - 20 NC

5шт.

8

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - hex head, No. 10 - 24 NC x 5/8"

5шт.

9

L77590

WASHER

- special sealing

5шт.

10

L74166

SENSOR

SENDER - fuel level, uses separate gasket, Ref. 11

1шт.

10a

L110129

TRANSMITTER

SENDER - fuel level, does not uses separate gasket

1шт.

11

A11822

GASKET

- used with Ref. 10 only

1шт.

12

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

13

A31060

ELECTRICAL WIRE

WIRE - ground

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

15

R24718

WASHER

- flat, 1/2", special

8шт.

16

25-106

NUT,3/8"-16, G5

- hex, 1/2" - 13 NC

4шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

19

92-5

LOCK WASHER,5/16"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 5/16" - 18 NC

1шт.

21

L74929

FILLER CAP

CAP, FILLER

1шт.

22

L74246

PIPE

- fill cap

1шт.

23

L77398

STRAINER ELEMENT

SCREEN - strainer

1шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

25

129-27

NUT,Hex, #10 - 32

- hex head, No. 10 - 32 NF

1шт.
