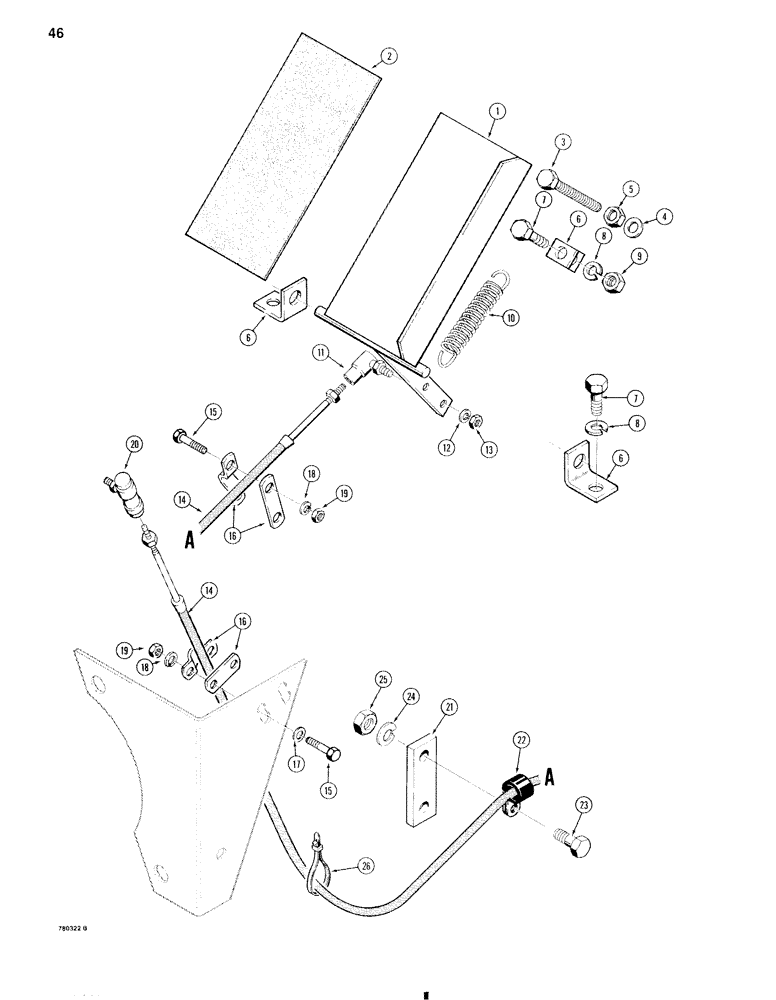

Запчасти Case W11 (046) - ACCELERATOR AND LINKAGE (02) - ENGINE

1

L70914

PEDAL ASSY.

PEDAL - accelerator

1шт.

2

D55216

PAD,2" x 9"

PAD - accelerator pedal

1шт.

3

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

1шт.

4

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

6

L73462

BRACKET

- pivot and pedal stop

3шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

10

L79116

SPRING

- pedal return

1шт.

11

L12437

BALL JOINT,#10 - 32 x 7/8"

- cable end at pedal

1шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

13

129-37

NUT,#10-32

- hex, No. 10 - 24 NC

1шт.

14

L103675

CABLE PULLING GRIP

CABLE - accelerator

1шт.

15

163-12

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4", plated

4шт.

16

L110453

CLAMP

- cable

2шт.

17

95-3

WASHER,#12

- flat, 3/16"

2шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

19

129-7

NUT,Hex, #10 - 24

- hex, No. 10 - 24 NC

4шт.

20

L12450

BALL

JOINT - cable end at engine

1шт.

21

L100188

BRACKET

- cable support

1шт.

22

49838

CLAMP

- cable

1шт.

Ref #22 - 49845 Clamp can be used.

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - NC

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
