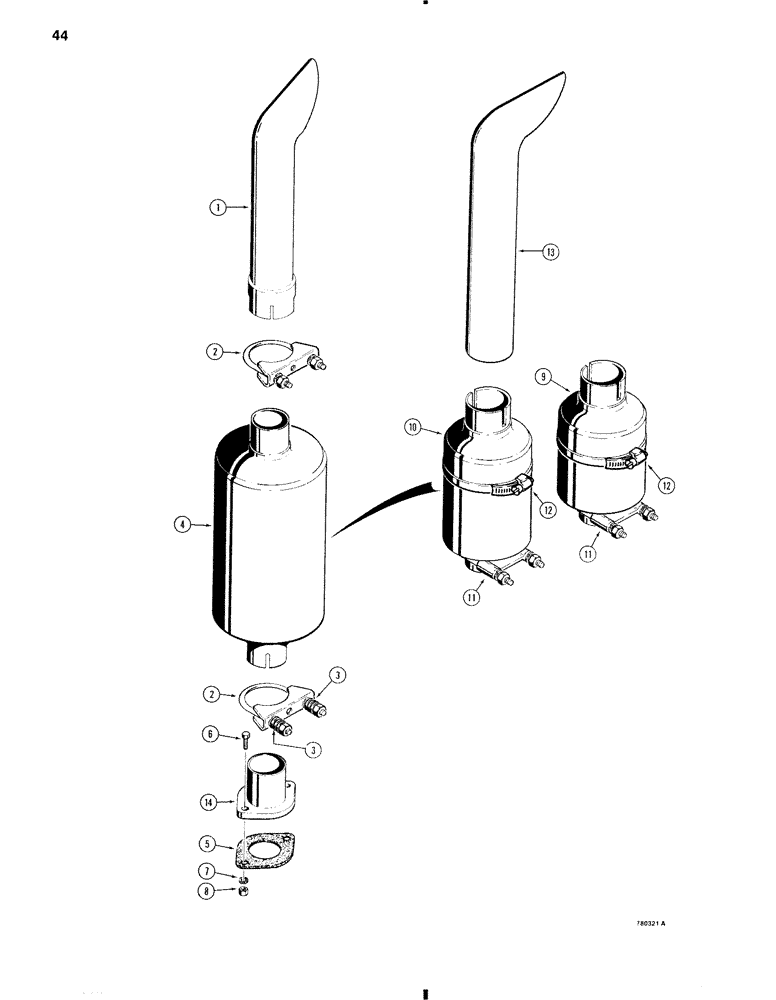

Запчасти Case W11 (044) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

L74728

PIPE

EXTENSION - muffler exhaust, used with Ref. 4 and 9 only

1шт.

2

A13240

CLAMP,2-5/8" ID

- muffler, includes hardware

2шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

6шт.

4

L76524

MUFFLER

- standard, used with item 1 only

1шт.

5

G46853

MANIFOLD GASKET

- exhaust pipe

1шт.

6

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

9

D45256

MUFFLER,W/ Spark Arrester

- spark arresting, includes clamps, 11" (279 mm)

1шт.

long, used with item 1 only

1шт.

10

L109992

MUFFLER

- spark arresting, includes clamps, 13" (330 mm), Incls Ref. 11 & 12

1шт.

long, used with Ref. 13 only

1шт.

11

A13240

CLAMP,2-5/8" ID

- lower, D45256 and L109992 mufflers

1шт.

12

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - band, worm screw type, D45256 and L109992 mufflers

1шт.

13

L109993

PIPE, EXHAUST SYSTEM

EXTENSION - muffler, exhaust, used with item 10 only

1шт.

14

D29308

OUTLET

PIPE - exhaust

1шт.

Ref #14 - Used on spark arresting mufflers only. The L76524 Std Muffler has it built onto the muffler end.

1шт.
