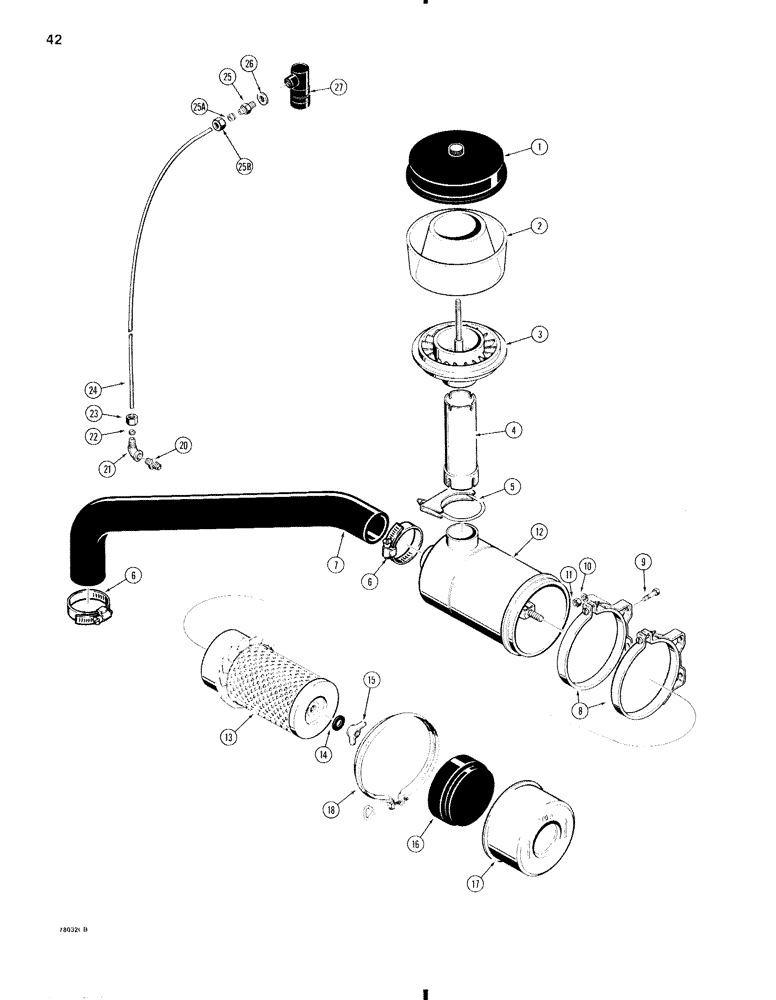

Запчасти Case W11 (042) - AIR CLEANER AND AIR INTAKE PARTS (02) - ENGINE

A64589

PRECLEANER

PRE-CLEANER ASSEMBLY - air, Incls. Ref. 1-3

1шт.

1

73187

COVER

- precleaner

1шт.

2

73186

HOUSING

BOWL - precleaner

1шт.

3

73185

SLEEVE

BODY - precleaner

1шт.

4

L78026

TUBE,2.5" OD x 8" L

- precleaner

1шт.

5

A13240

CLAMP,2-5/8" ID

AND HARDWARE - tube

1шт.

6

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- air cleaner hose #36, 1.81/2.75 Type F Worm

2шт.

7

L77159

INTAKE AIR HOSE,2.25" ID, SAE 20R4 Class D2

- Air Cleaner 2.25" ID, SAE 20R4 Class D2

1шт.

8

L11247

BAND

CLAMP AND HARDWARE - air cleaner

2шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

H213157

CLEANER

AIR CLEANER ASSEMBLY - engine, Incls. Ref. 12-18

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

13

A42274

AIR FILTER

ELEMENT - air cleaner

1шт.

F91761

WING NUT

WASHER AND NUT ASSEMBLY - air cleaner

1шт.

14

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

WASHER - wing nut

1шт.

15

NSS

NOT SOLD SEPARAT

WING NUT - element

1шт.

16

F22312

BAFFLE

- air cleaner

1шт.

17

F91760

CUP

- air cleaner

1шт.

18

F84999

CLAMP,168.28mm

- air cleaner

1шт.

19

RESERVED

1шт.

20

D36264

FITTING

FILTER - safety, air restriction

1шт.

222-5390

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT

ASSEMBLY - 90 degree, Incls. Ref. 21-23

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

22

222-5054

SLEEVE - elbow

1шт.

23

222-5067

NUT - elbow

1шт.

24

D36946

TUBE

- 1/8" (3 mm) ID x 28-1/16" (713 mm)

1шт.

222-5104

FITTING,5/16"-24 x 1/8" NPT

ASSEMBLY - straight, Incls. 25-25B

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

25a

222-5054

SLEEVE - fitting

1шт.

25b

222-5067

NUT - fitting

1шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

27

A17652

ELECTRICAL GAUGE

INDICATOR - filter restriction

1шт.
