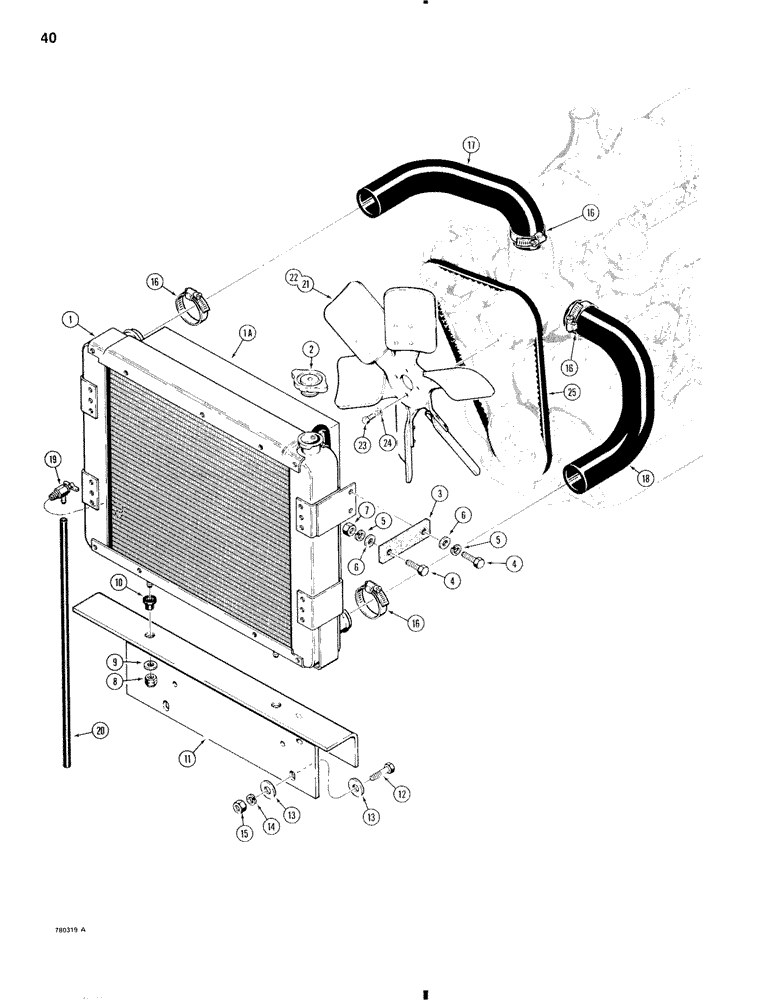

Запчасти Case W11 (040) - RADIATOR, FAN, AND BELT (02) - ENGINE

1

L103034

RADIATOR

- engine cooling, Incls. Ref.1A

1шт.

1a

N6185

SHROUD

- fan, Serial Range: welds-radiator

1шт.

2

F23120

CAP

- radiator

1шт.

3

L50641

CONNECTING STRIP

STRAP - radiator mounting, side

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special

2шт.

10

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber

2шт.

11

L77335

BRACKET

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

95-8

WASHER,1/2"

flat 1/2"

4шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

17

L74743

RADIATOR HOSE,2.00" ID x 11.30", SAE 20R4 Class D2

Upper 2.00" ID x 11.30", SAE 20R4 Class D2

1шт.

18

L101052

RADIATOR HOSE,2.00" ID x 9.00", SAE 20R4 Class D-2

Lower 2.00" ID x 9.00", SAE 20R4 Class D-2

1шт.

19

A27862

COCK, DRAIN

VALVE - drain

1шт.

20

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

21

L104443

FAN

PUSHER FAN - engine cooling

1шт.

22

D34717

FAN

PULLER FAN - engine cooling

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

25

L57804

BELT,0.50" W

- fan and alternator

1шт.
