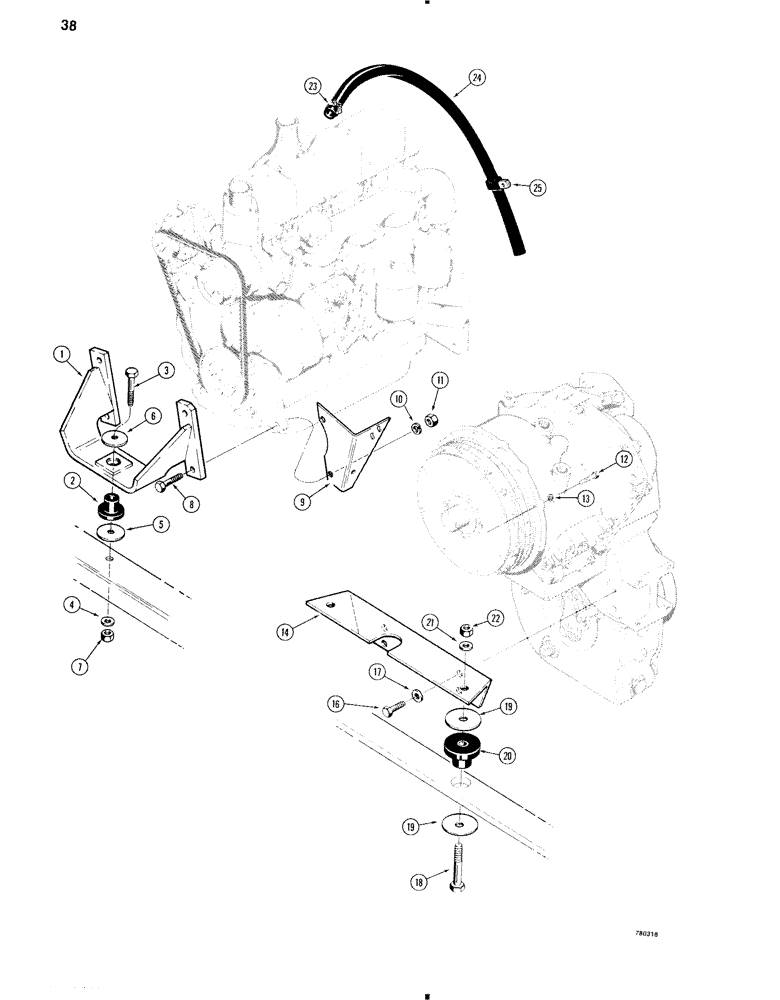

Запчасти Case W11 (038) - ENGINE AND TRANSMISSION MOUNTING (02) - ENGINE

1

D63931

MOUNTING PARTS

SUPPORT - engine, front, Incls. Ref. 2

1шт.

2

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR - rubber, engine mount

1шт.

3

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- hex head, 5/8" - 11 NC x 3-1/2"

1шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

1шт.

5

L78455

WASHER

- special

1шт.

6

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- special

1шт.

7

131-656

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8" x 11 NC

1шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

9

L105652

BRACKET

- cable and hose

1шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1010

NUT,5/8"-11, G5

4шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

13

92-6

LOCK WASHER,3/8"

12шт.

14

L104595

MOUNTING PARTS

SUPPORT - transmission

1шт.

15

RESERVED

1шт.

16

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-3/4", grade 8

4шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

4шт.

18

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

19

A19068

WASHER

- special

4шт.

20

A19066

MOUNTING PARTS

INSULATOR - rubber, transmission mount

2шт.

21

L79179

WASHER

- hardened

2шт.

22

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" - 10 NC

2шт.

23

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

at engine breather tube #16, 0.81/1.50 Type F Worm

1шт.

24

L78902

HOSE

- 3/4" (19 mm) ID x 44" (1118 mm) engine breather

1шт.

25

A39468

CLAMP,1 1/8", 3/8" Bolt

- hose, uses transmission bolt

1шт.
