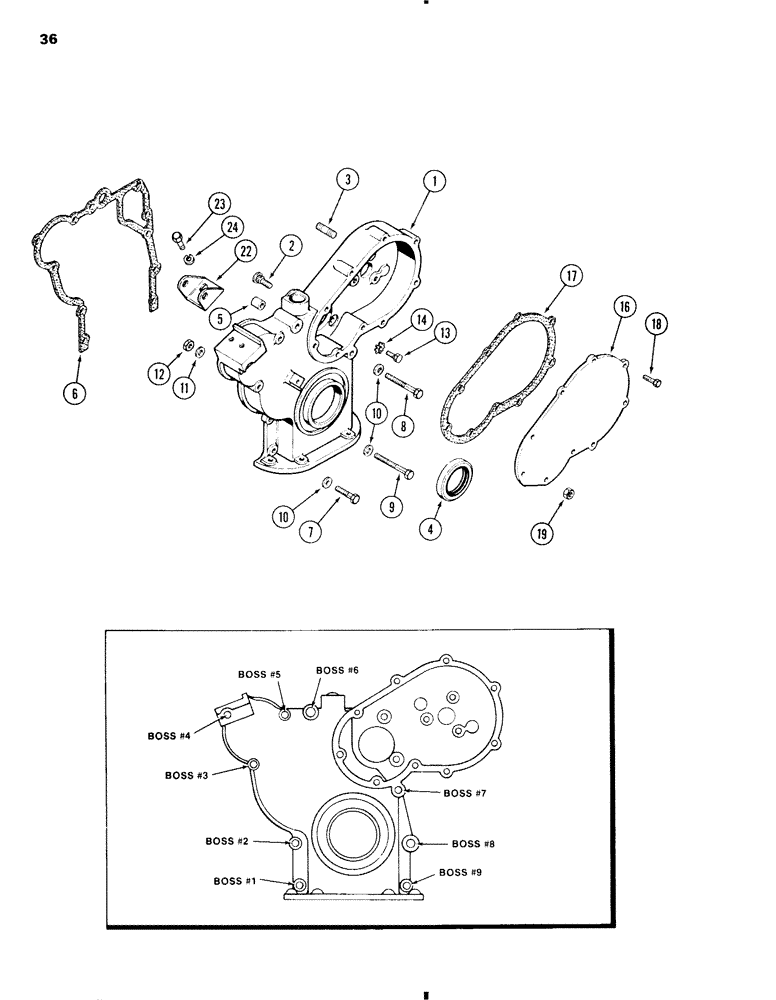

Запчасти Case W11 (036) - TIMING GEAR COVER, 207 DIESEL ENGINE (02) - ENGINE

1

A51981

COVER

ASSEMBLY - timing gears, Incls. Ref. 2-4

1шт.

2

A51649

STUD

- cover

2шт.

3

G102128

BOLT

- pump mounting, 3/8 NC x 1-7/16 inch

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft, front

1шт.

5

A29442

RING

DOWEL - cover locating

2шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover (Boss No. 1, 2 and 9) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8 x 1-1/2 inch NC hex (Boss No. 8)

1шт.

8

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- cover, 3/8 x 3 inch NC hex (Boss No. 6)

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- cover, 3/8 x 2-3/4 inch NC hex (Boss No. 7)

1шт.

9

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover 3/8 x 3-1/2 inch NC hex (Boss No. 3, 4 and 5)

3шт.

10

A50820

WASHER

- cover bolt

9шт.

10

95-6

WASHER,3/8"

- cover bolt, 3/8 x 1 x 1/16 inch (9.5 x 25.4 x 3.2 mm) (Boss No. 8)

1шт.

11

195-25

WASHER,3/8"

- cover bolt, 3/8 x 13/16 x 1/16 inch (9.5 x 20.6 x 1.6 mm)

1шт.

(Boss No. 3, 4 and 5)

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8 inch NC hex (Boss No. 3, 4 and 5)

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

14

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

16

A51908

COVER

PLATE - cover, injection pump gears

1шт.

17

A39925

GASKET

- cover plate

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover plate Hex, 3/8"-16 x 1", G5, Full Thd

7шт.

19

25-106

NUT,3/8"-16, G5

- cover studs, 3/8 inch NC hex

2шт.

22

A160391

BRACKET

- alternator mounting (Replaces A38492)

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Bracket to cover Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.
