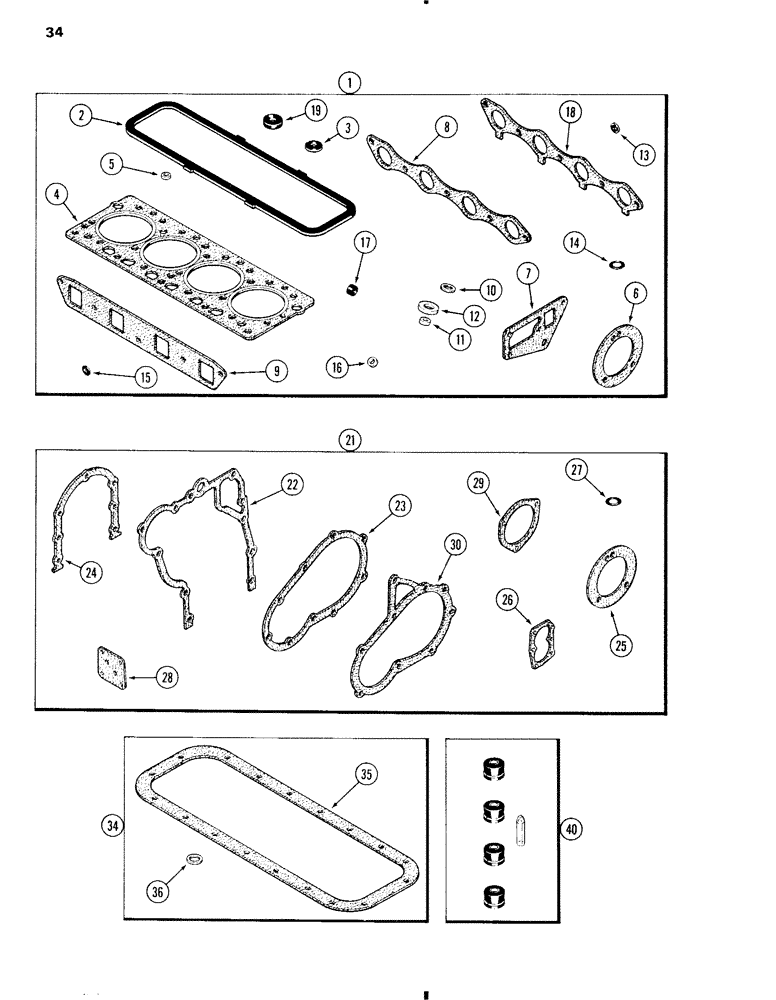

Запчасти Case W11 (034) - ENGINE GASKET KITS, 207 DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE

1

A155589

GASKET KIT

- valve grind , Incls. Ref. 2-17

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

A142098

GROMMET

- valve cover studs (rubber)

2шт.

4

A148745

CYLINDER HEAD GASKET

- cylinder head

1шт.

5

G46851

SEAL

- valve stem (rubber)(Ref. 40)

8шт.

6

A38083

GASKET

- water, Serial Range: pump-body

1шт.

7

A38084

GASKET,1.27mm Thk

- water pump body to cylinder head

1шт.

8

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

9

G46871

GASKET

- intake manifold

1шт.

10

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel injection, Serial Range: lines-pump

8шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzles

4шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- seat, injector nozzles

4шт.

13

A50694

DISC

WASHER - seal, manifold studs

3шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body

1шт.

15

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- manifold stud (Not used this application)

3шт.

16

G49068

GASKET

- (Not used this application)

4шт.

17

222-101

SLEEVE,3/16" Tube

- (for 3/16 inch tube)

4шт.

17

222-103

SLEEVE,5/16" Tube

4шт.

18

A155137

GASKET

- exhaust manifold (Not used this application)

1шт.

19

G46867

GROMMET

- cover

2шт.

21

A43198

GASKET

KIT - cylinder block (See Note), Incls. Ref. 22-30

1шт.

22

A51529

GASKET

- timing gear cover, cylinder block kit

1шт.

23

A39925

GASKET

- injection pump drive cover, cylinder block kit

1шт.

24

A39188

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

25

A38083

GASKET

- water pump, cylinder block kit

1шт.

26

G46852

GASKET

- oil pump cover, cylinder block kit

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body to cover, cylinder block kit

1шт.

28

G46854

GASKET

- (Not used this application), cylinder block kit

1шт.

29

A30042

GASKET

- (Not used this application), cylinder block kit

1шт.

30

G46859

GASKET

- (Not used this application), cylinder block kit

1шт.

34

A44758

GASKET

KIT - oil pan (See Note)

1шт.

35

A51891

OIL PAN GASKET SET

- oil pan, kit

1шт.

36

A58608

GASKET

- drain plug (Nylon), oil pan kit

1шт.

36

A34827

GASKET

- drain plug (Copper), oil pan kit

1шт.

40

M20611

SEAL KIT

SEAL KIT - valves (Includes 4 seals and installation sleeve), oil pan

1шт.
