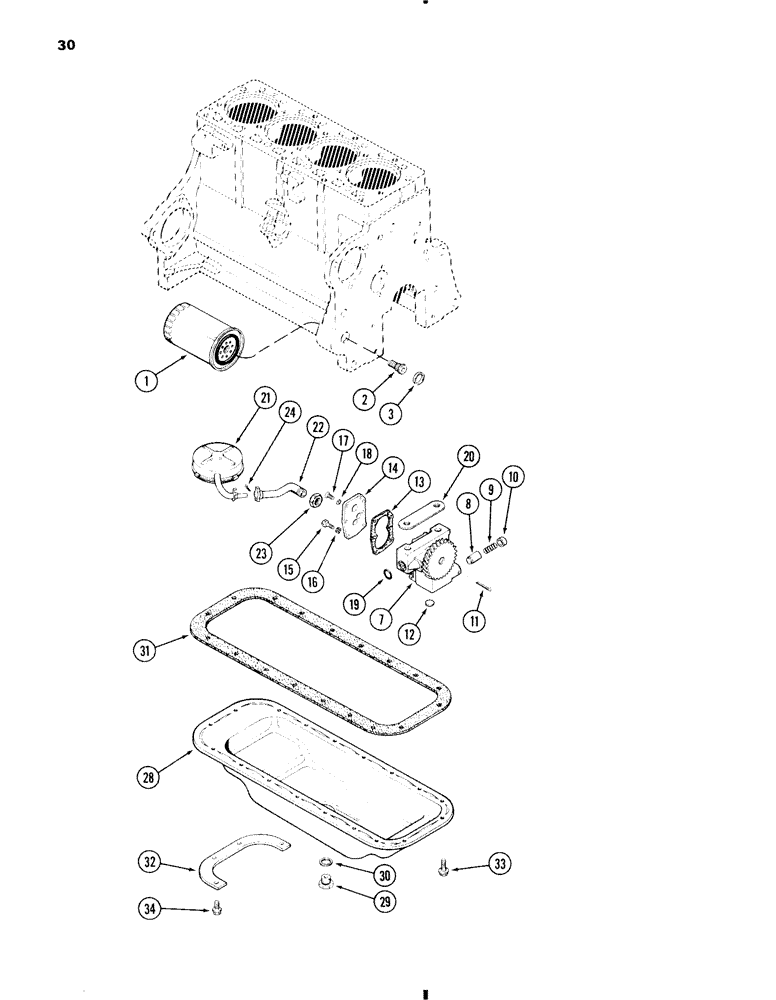

Запчасти Case W11 (030) - OIL FILTER, 207 DIESEL ENGINE (02) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER - engine oil

1шт.

2

A153552

ADAPTER

ADAPTER -, Serial Range: filter-block

1шт.

3

41-1016

PLUG,Cup, 1"

PLUG - adapter hole, 1 inch cup (25.4 mm)

1шт.

7

A38372

PUMP

PUMP ASSEMBLY - engine oil, with float type screen, Incls. Ref. 8-18

1шт.

7

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

7

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

8

A155144

VALVE, PRESSURE RELI

EF VALVE - relief, oil pump with float type screen

1шт.

9

G48500

SPRING

SPRING - relief valve, 2-1/8 inch free length (53.98 mm), oil pump with float type screen

1шт.

10

A29260

RETAINER

RETAINER - relief valve spring, oil pump with float type screen

1шт.

11

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (3.2 x 31.8 mm), oil pump with float type screen 1/8" x 1 1/4"

1шт.

12

A39321

PLUG,Cup, 7/16"

PLUG - body, 1/2 inch cup (12.70 mm), oil pump with float type screen

1шт.

13

G46852

GASKET

GASKET - pump cover, oil with float type screen

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - pump body, oil with float type screen

1шт.

15

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, , Oil pump with float type screen Hex, 1/4"-20 x 1 1/4", G5

1шт.

15

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Oil pump with float type screen Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Oil pump with float type screen 1/4"

4шт.

17

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

SCREW - 1/4 x 5/8 inch NC slotted flat head, oil pump with float type screen

2шт.

18

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, , Oil pump with float type screen Ext Csk Tooth, 1/4"

2шт.

19

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

O-RING - oil port, pump with float type screen

1шт.

20

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap (0.06 mm), Oil with float type screen .002" Thk

1шт.

20

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap (0.13 mm), Oil with float type screen .005" Thk

1шт.

21

A39037

FLOAT

FLOAT ASSEMBLY - with screen, oil pump with float type screen

1шт.

Order Ref. 21-28 on Fig. 33

1шт.

22

A39035

TUBE

PIPE ASSEMBLY - suction, oil pump with float type screen

1шт.

Order Ref. 21-28 on Fig. 33

1шт.

23

223-207

LOCK NUT

NUT - pipe to pump, oil with float type screen

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), (3.2 x 31.8 mm), oil pump with float type screen 1/8" x 1 1/4"

1шт.

28

A36717

PAN

PAN ASSEMBLY - oil, Incls. Ref. 29, 30

1шт.

29

A140222

PLUG

PLUG - drain, oil pan

1шт.

30

A58608

GASKET

GASKET - drain plug, oil pan

1шт.

31

REF

INSTRUCTION

GASKET - oil pan (Fig. 34)

1шт.

32

A151279

REINFORCEMENT

STRIP - pan reinforcement, oil pan

1шт.

33

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT ASSEMBLY - 5/16 x 3/4 inch NC hex Sems, oil pan

14шт.

34

193-552

BOLT

BOLT ASSEMBLY - 5/16 x 7/8 inch NC hex, oil pan

4шт.
