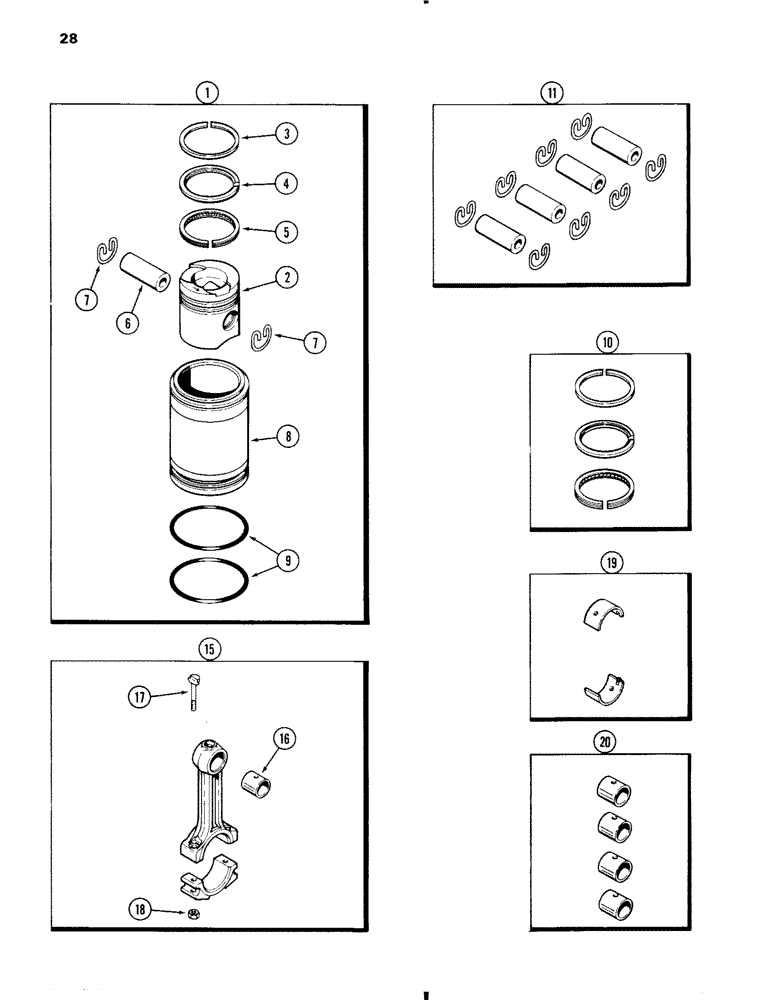

Запчасти Case W11 (028) - PISTONS, 207 DIESEL ENGINE (02) - ENGINE

1

A46382

PACKAGE, REPAIR

PISTON ASSEMBLY - engine (Set of 1), Incls. Ref. 2-9

4шт.

Shallow Bowl, 17.1 compression Ratio

1шт.

2

A151244

PISTON

- cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order Ref. 10)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order Ref. 10)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order Ref. 10)

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 11)

1шт.

7

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

8

A136474

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner)

1шт.

9

A51916

O-RING,4.115" ID x 4.281" OD

- sleeve

2шт.

10

A151892

RING

SET - piston re-ring (Set of 1)

4шт.

11

A35771

KIT

PIN SET - piston (set of 4 pins and 8 retaining rings)

1шт.

15

A51913

RING

ROD ASSEMBLY - connecting, Incls. Ref. 16-18

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref 20), connecting rods

1шт.

17

A51914

BOLT

- connecting rod cap

2шт.

18

A51904

NUT

NUT - connecting rod bolt

2шт.

19

A50975

BEARING LINER,58.67mm ID x 62.48mm OD x 27.69mm W

LINER KIT - rod bearing, standard (Set of 2), connecting

4шт.

19

A50976

BEARING

LINER KIT - rod bearing, 0.002 inch (0.06 mm) undersize (Set of 2), connecting

4шт.

19

A50977

BEARING,58.42mm ID x 62.48mm OD x 27.69mm W

LINER KIT - rod bearing, 0.010 inch (0.26 mm) undersize (Set of 2), connecting

4шт.

19

A50978

BEARING,58.17mm ID x 62.48mm OD x 27.69mm W

LINER KIT - rod bearing, 0.020 inch (0.51 mm) undersize (Set of 2), connecting

4шт.

19

A50979

BEARING

LINER KIT - rod bearing, 0.030 inch (0.77 mm) undersize (Set of 2), connecting

4шт.

20

A44083

KIT

BUSHING KIT - piston pin (Set of 4), connecting

1шт.

395949R1

SHIM

Connecting rods

1шт.

Used if dealer is looking for sleeve protrusion

1шт.
