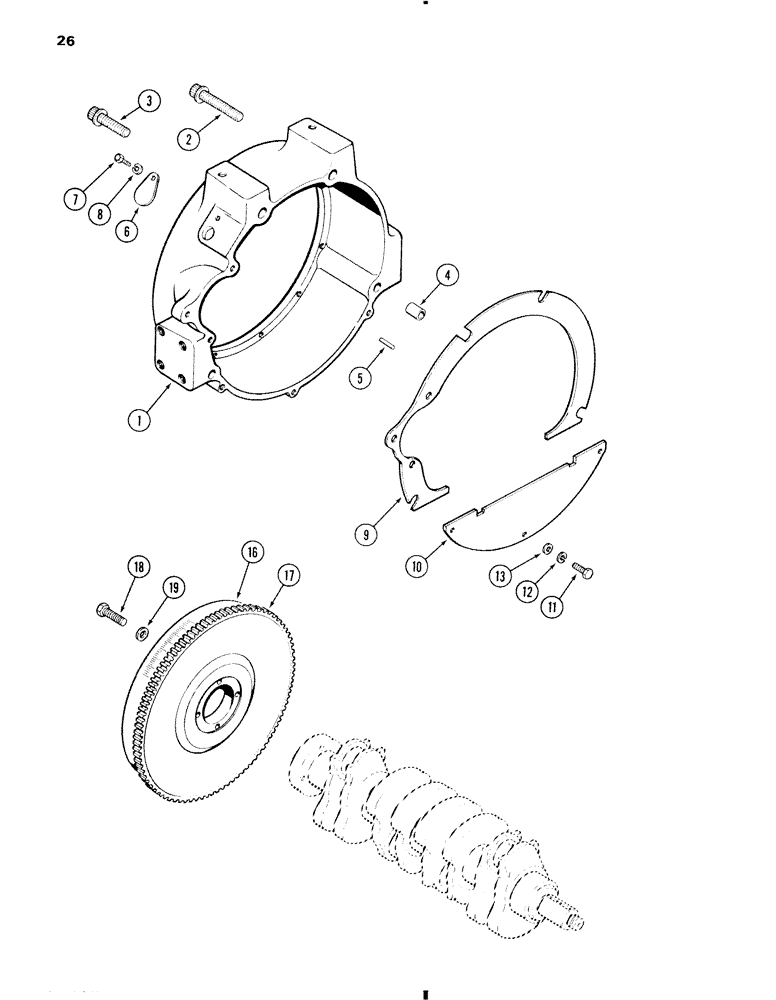

Запчасти Case W11 (026) - FLYWHEEL HOUSING, 207 DIESEL ENGINE (02) - ENGINE

1

A152478

HOUSING - flywheel

1шт.

2

166-121

12 PT SCREW,Flg, 5/8" - 11 x 3 1/2", Gr 8

BOLT - housing to block, 5/8 x 3-1/2 inch NC ferry head

2шт.

3

166-90

BOLT

- housing to block, 1/2 x 2-1/4 inch NC ferry head

2шт.

4

D30578

SPACER

DOWEL - housing locating

2шт.

5

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing pointer (3.2 x 31.8 mm) 1/8" x 1 1/4", Slotted

1шт.

6

A29068

COVER

- timing hole

1шт.

7

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Cover to housing Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

A51598

COVER - dust, upper

1шт.

10

A51599

COVER

- dust, lower

1шт.

11

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Lower cover to housing Hex, 1/4"-20 x 1/2", G5, Full Thd

3шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

13

95-4

WASHER,1/4"

- flat

3шт.

16

A51086

FLYWHEEL

ASSEMBLY - engine, Incls. Ref. 17

1шт.

17

G11710

GEAR

- ring, starter, flywheel

1шт.

18

28-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

- flywheel to crankshaft, 7/16 x 1-1/2 inch NC hex

4шт.

19

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt

4шт.
