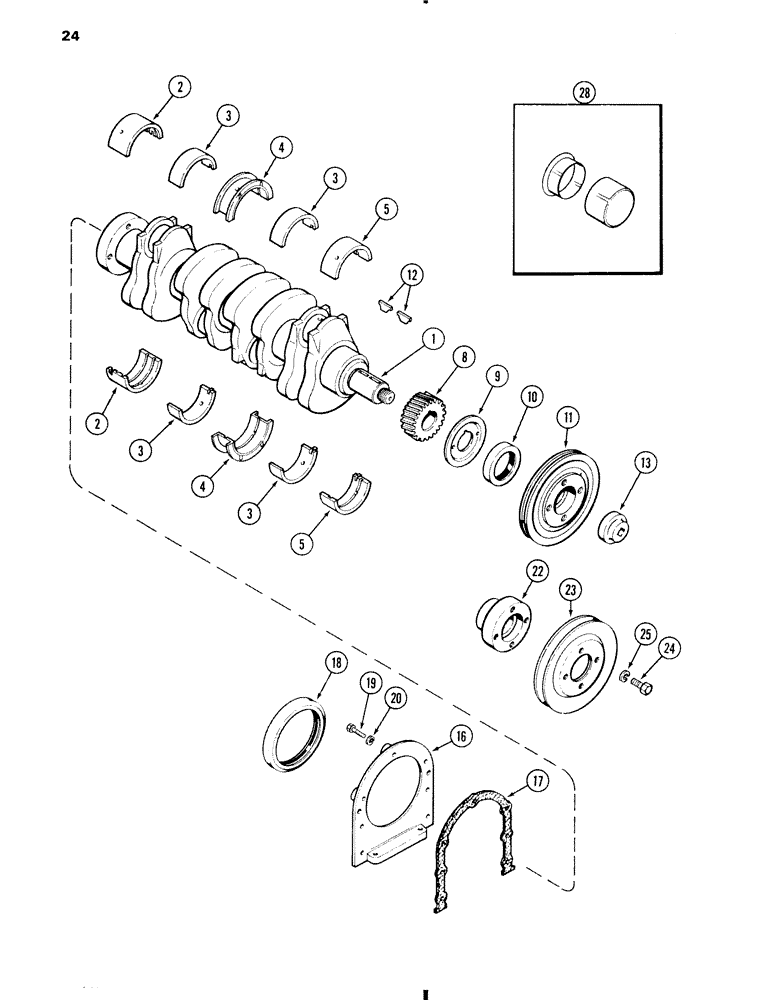

Запчасти Case W11 (024) - CRANKSHAFT, 207 DIESEL ENGINE (02) - ENGINE

1

A144011

CRANKSHAFT

- engine

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER KIT - main bearing, rear, standard (Set of 2)

1шт.

2

A36496

LINING

LINER KIT - main bearing, rear, 0.002 inch (0.06 mm) undersize (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER KIT - main bearing, rear, 0.010 inch (0.26 mm) undersize (Set of 2)

1шт.

2

A36498

KIT

LINER KIT - main bearing, rear, 0.020 inch (0.51 mm) undersize (Set of 2)

1шт.

2

A36499

BEARING LINER

LINER KIT - main bearing, rear, 0.030 inch (0.77 mm) undersize (Set of 2)

1шт.

3

A36485

LINING

LINER KIT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A36486

LINING

LINER KIT - main bearing, intermediate, 0.002 inch (0.06 mm)

1шт.

undersize (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

LINER KIT - main bearing, intermediate, 0.010 inch (0.26 mm) .item0 undersize (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER KIT - main bearing, intermediate, 0.020 inch (0.51 mm)

1шт.

undersize (Set of 2)

2шт.

3

A36489

LINING

LINER KIT - main bearing, intermediate, 0.030 inch (0.77 mm)

1шт.

undersize (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main bearing, center, standard (Set of 2)

1шт.

4

A36491

LINING

LINER KIT - main bearing, center, 0.002 inch (0.06 mm) undersize (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main bearing, center, 0.010 inch (0.26 mm) undersize (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main bearing, center, 0.020 inch (0.51 mm) undersize (Set of 2)

1шт.

4

A36494

LINING

LINER KIT - main bearing, center, 0.030 inch (0.77 mm) undersize (set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

LINER KIT - main bearing, front, standard (Set of 2)

1шт.

5

A36481

LINING

LINER KIT - main bearing, front, 0.002 inch (0.06 mm) undersize (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER KIT - main bearing, front, 0.010 inch (0.26 mm) undersize (Set of 2)

1шт.

5

A36483

LINING

LINER KIT - main bearing, front, 0.020 inch (0.51 mm) undersize (Set of 2)

1шт.

5

A36484

LINING

LINER KIT - main bearing, front, 0.030 inch (0.77 mm) undersize (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front

1шт.

11

A155856

PULLEY

- water pump drive

1шт.

12

A39132

KEY

- pulley and gear

2шт.

13

A35673

NUT

- pulley retaining

1шт.

16

A38390

RETAINER

- rear oil seal

1шт.

17

A39188

GASKET

- retainer

1шт.

18

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear

1шт.

Ref #18A - A49851 Wear Sleeve for the A51339 Seal

1шт.

19

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer, 1/4 x 3/4 inch NC hex

4шт.

19

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer, 1/4 x 1 inch NC hex

3шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

22

A156746

HUB

- pulley (Order Ref 11)

1шт.

23

A166049

PULLEY

- crankshaft (Order Ref 11)

1шт.

24

A13-716

BOLT - 7/16 x 1 inch NC hex

4шт.

25

92-7

LOCK WASHER,7/16"

4шт.

28

A155893

SLEEVE

KIT - wear, crankshaft front

1шт.
