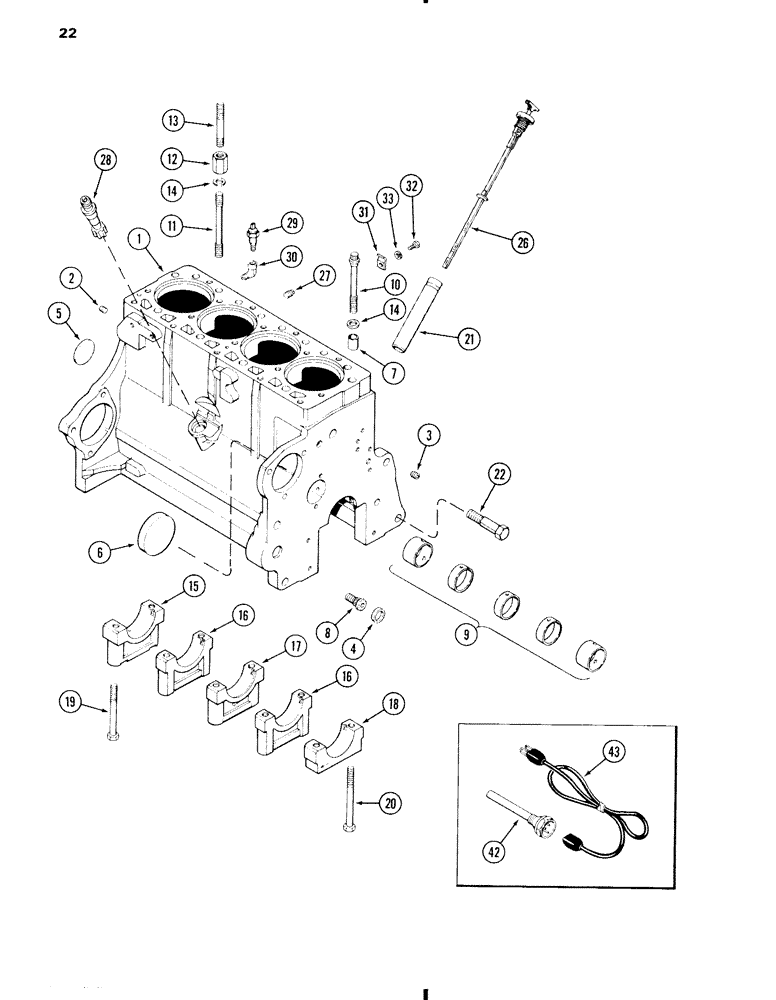

Запчасти Case W11 (022) - CYLINDER BLOCK, 207 DIESEL ENGINE (02) - ENGINE

A46381

SHORT ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, piston assy., connecting rods and bearings, crankshaft and bearings

1шт.

camshaft, oil pump and timing gears)

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY - stripped (Casting No. A152625)(See Note) Incls. Ref. 2-22

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery, Rear Hex Soc, 1/4"-18 NPTF

3шт.

3

G49070

PLUG

- oil gallery, front, 1/4 inch PT, drilled head

1шт.

4

41-1016

PLUG,Cup, 1"

- adapter hole, 1 inch cup (25.4 mm)

1шт.

5

41-1030

PLUG,Cup, 1 7/8"

- camshaft hole, 2-1/8 inch expansion (53.98 mm)

1шт.

6

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive hole, 3-1/4 inch cup (82.55 mm)

1шт.

7

G49608

RING

- dowel, head locating

2шт.

8

A153552

ADAPTER

- oil filter

1шт.

9

REF

INSTRUCTION

BUSHINGS - camshaft (Ref. 21)

1шт.

10

A39047

12 PT SCREW

BOLT - cylinder head, 1/2 x 3-1/2 inch NC, 12 point head

4шт.

10

A39048

12 PT SCREW

BOLT - cylinder head, 1/2 x 5-1/8 inch NC, 12 point head

11шт.

10

A39049

12 PT SCREW

BOLT - cylinder head, 1/2 x 5-5/8 inch NC, 12 point head

2шт.

11

A36902

STUD

- cylinder head, 1/2 NC x 5-5/8 inch

2шт.

12

A51114

NUT

- cylinder head studs, 1/2 NC and 3/8 inch NC

2шт.

13

A51271

STUD

- cylinder head cover, 3/8 NC x 3-3/4 inch

2шт.

14

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- hardened

19шт.

15

A38385

CAP

- main bearing, rear

1шт.

16

G2128

CAP

- main bearing, intermediate

2шт.

17

G2127

CAP

- main bearing, center thrust)

1шт.

18

G2126

CAP

- main bearing, front

1шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps, 1/2 x 4-1/2 inch NC hex

8шт.

20

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- bearing caps, 1/2 x 5-1/8 inch NC hex

2шт.

21

A37149

TUBE

- oil filler and dipstick

1шт.

22

A38303

BOLT

BOLT - front support, 5/8 x 3-3/16 inch NC hex

1шт.

26

A150100

DIPSTICK

oil level

1шт.

27

221-662

PLUG,Hex Hd, 1/4"-18

- drain, cylinder block, 1/4 inch PT, square head

1шт.

28

A137572

DRIVE

ASSEMBLY - tachometer

1шт.

29

A162297

SWITCH

UNIT - sending, engine oil pressure

1шт.

30

217-15

ELBOW,45 Degree, 1/8"-27 NPTF, Fem x 1/8"-27 NPTF Male

- street, 45 degree

1шт.

31

A26673

CLIP

- fuel shut off cable

1шт.

32

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

42

A44815

HEATER

ASSEMBLY - block

1шт.

43

A44814

ELECTRIC CABLE

CORD - heater, 12 inch long (304.8 mm), block

1шт.
