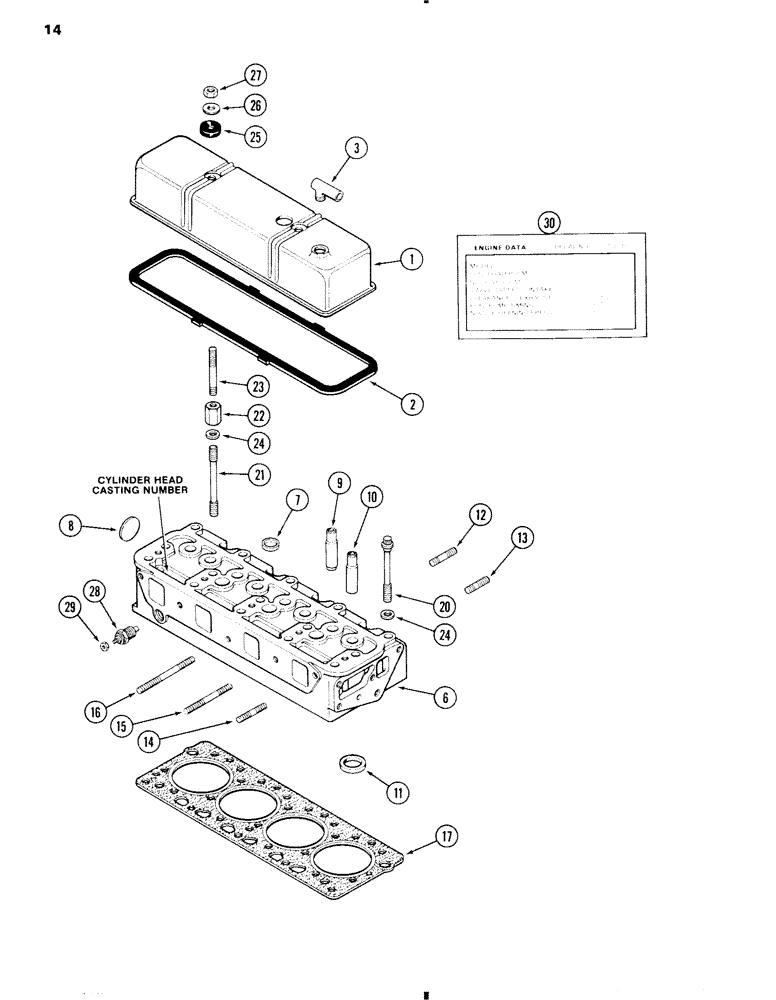

Запчасти Case W11 (014) - CYLINDER HEAD AND COVER, WITH CAST PUSH ROD HOLES, 207 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
- cylinder head
1шт.
2
A43030
GASKET,3.05mm Thk
-, Serial Range: cover-head
1шт.
6
A153261
CYLINDER BLOCK
HEAD ASSEMBLY - cylinder (Casting No. A150384)(Order A166029, Incls. Ref. 7-16
1шт.
See figure 16
1шт.
7
41-1016
PLUG,Cup, 1"
- top, 1 inch cup type (25.4 mm)
3шт.
8
41-1028
PLUG,Cup, 1 3/4"
- rear, 1-3/4 inch cup type (44.45 mm)
1шт.
9
G2069
GUIDE
- exhaust valve
4шт.
In the Artwork, Ref #9 should look like Ref #10, and Ref #10 should look like Ref #9 05/24/96
1шт.
10
G2068
GUIDE
- intake valve
4шт.
11
A39268
INSERT
- exhaust valve seat
4шт.
12
A39129
STUD
- exhaust manifold, clamps, 3/8 NC x 2-1/16 inch
3шт.
13
A29431
STUD
- exhaust manifold, ends, 3/8 NC x 1-3/4 inch
2шт.
14
A140924
STUD
- intake manifold, ends, 3/8 NC x 2-7/16 inch
2шт.
15
A153248
STUD
- intake manifold, intermediate, 3/8 NC x 4-13/16 inch
2шт.
16
A51500
STUD
- intake manifold, center, 3/8 NC x 5-5/16 inch
1шт.
17
REF
INSTRUCTION
GASKET - cylinder head to block (See figure 34)
1шт.
20
A39047
12 PT SCREW
BOLT - head to block, 1/2 x 3-1/2 inch NC, 12 point head
4шт.
20
A39048
12 PT SCREW
BOLT - head to block, 1/2 x 5-1/8 inch NC, 12 point head
11шт.
20
A39049
12 PT SCREW
BOLT - head to block, 1/2 x 5-5/8 inch NC, 12 point head
2шт.
21
A36902
STUD
- cylinder head, 1/2 NC x 5-5/8 inch
2шт.
22
A51114
NUT
- head studs, 1/2 NC and 3/8 inch NC
2шт.
23
A51271
STUD
- cylinder head cover, 3/8 NC x 3-3/4 inch
2шт.
24
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
- stud and bolt
19шт.
25
A142098
GROMMET
- cover (rubber)
2шт.
26
G49400
WASHER
- cover nut
2шт.
27
25-106
NUT,3/8"-16, G5
- cover, 3/8 inch NC hex
2шт.
28
D65446
SENDER UNIT
UNIT - temperature sending
1шт.
29
193-1000
NUT,Keps, w/LW,#10-32
- unit terminal, No. 10 NF hex
1шт.
30
321-5268
DECAL
- engine data
1шт.
Выбрано товаров: 30
