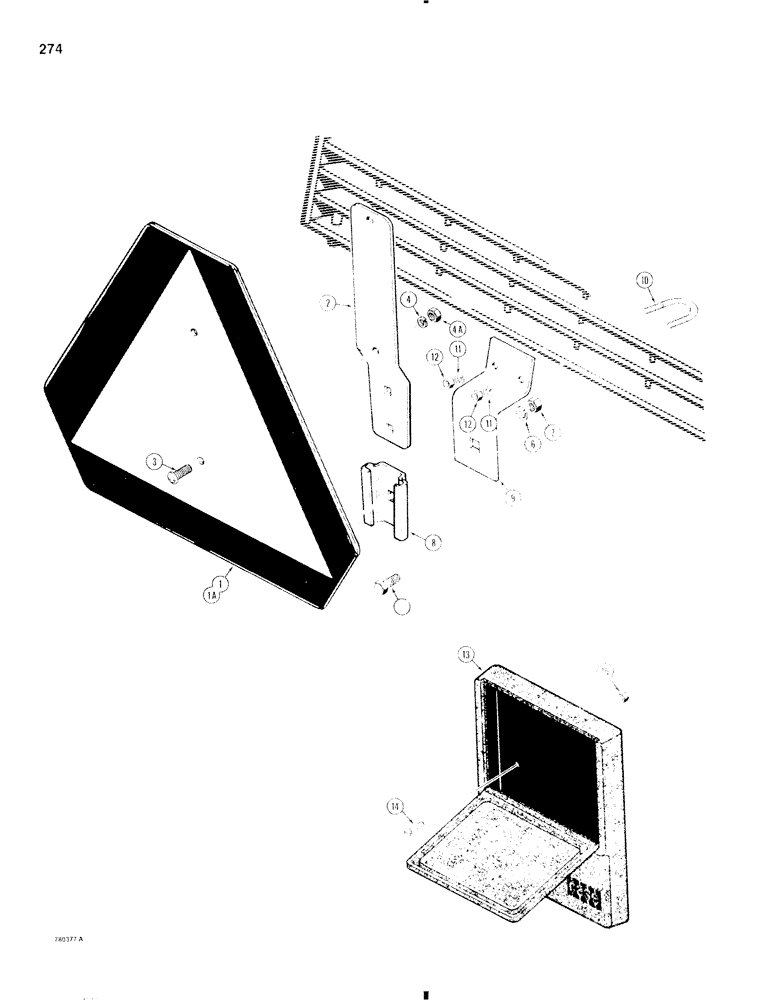

Запчасти Case W11 (274) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - plate and decal, Incls. Ref. 1-2

1шт.

1

321-1751

DECAL

- slow moving vehicle emblem

1шт.

1a

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - mounting, emblem

1шт.

3

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head, No. 10 - 24 NC x 1/2", if used

2шт.

4

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

4a

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, if used

2шт.

5

12-716

BOLT - hex head, 7/16" - 14 NC x 1"

1шт.

6

92-7

LOCK WASHER,7/16"

1шт.

7

25-107

NUT,7/16"-14, G5

- hex, 7/16" - 14 NC

1шт.

8

A60977

BRACKET

SOCKET - plate

1шт.

9

L78242

BRACKET

- socket

1шт.

10

L42674

HARDWARE

U-BOLT - 1/4" - 20 NC

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

A141933

BOX

- operator's manual

1шт.

14

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- slotted, 1/4" - 20 NC x 1/2", operator's manual box

3шт.

15

129-501

NUT,Crown, 1/4"-20

- hex crown, 1/4" - 20 NC, if used, operator's manual box

3шт.
