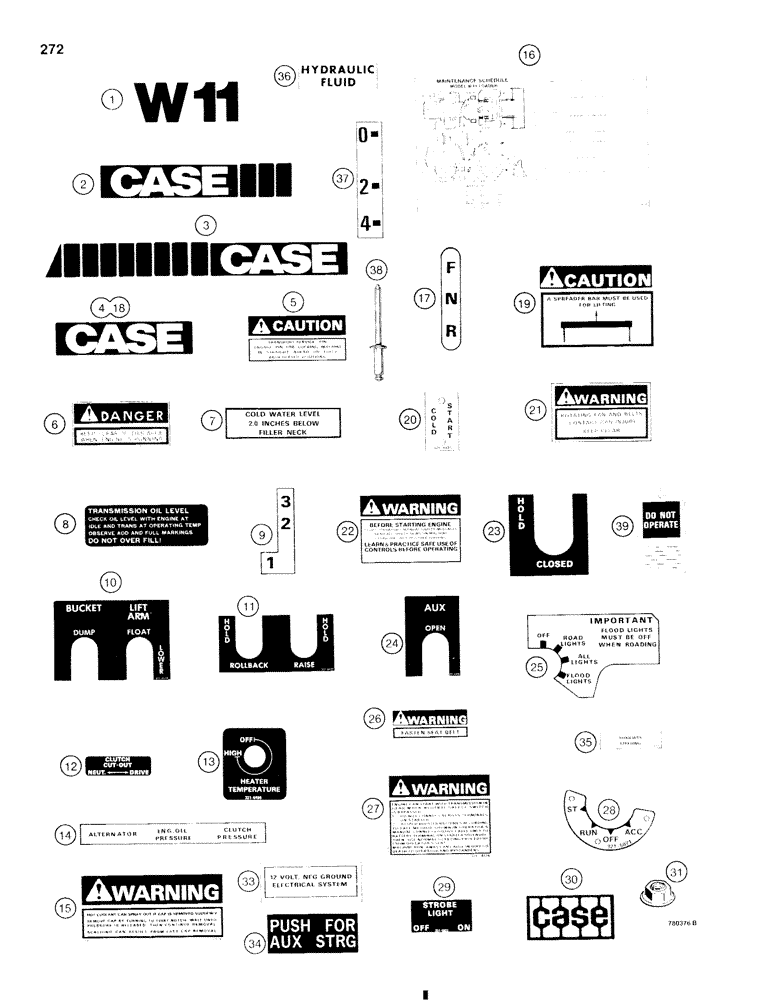

Запчасти Case W11 (272) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-4228

DECAL

- W11, cab models, 6" (152 mm)

1шт.

Part of Decal Kit, P/N L36176

1шт.

1

321-5111

DECAL

- W11, loader arms, 4" (112 mm) canopy models

2шт.

Part of Decal Kit, P/N L36176

1шт.

2

321-5033

DECAL

- Case, right-hand hood

1шт.

Part of Decal Kit, P/N L36176

1шт.

3

321-5032

DECAL

- Case, left-hand hood

1шт.

Part of Decal Kit, P/N L36176

1шт.

4

321-5031

DECAL

- Case, front

1шт.

Part of Decal Kit, P/N L36176

1шт.

5

321-3927

DECAL

- articulation lock pin

1шт.

Part of Decal Kit, P/N L36176

1шт.

6

321-3205

DECAL

- Danger, rear chassis

2шт.

Part of Decal Kit, P/N L36176

1шт.

7

321-4380

DECAL

- cold water level

1шт.

Part of Decal Kit, P/N L36176

1шт.

8

321-1980

DECAL

- Transmission oil level

1шт.

Part of Decal Kit, P/N L36176

1шт.

9

321-5874

DECAL

PLATE - range control, replaces 321-3921 decal

1шт.

Part of Decal Kit, P/N L36176

1шт.

10

321-4478

DECAL

- loader controls, front

1шт.

Part of Decal Kit, P/N L36176

1шт.

11

321-4477

DECAL

- loader controls, rear

1шт.

Part of Decal Kit, P/N L36176

1шт.

12

321-2785

DECAL

- clutch cut out

1шт.

Part of Decal Kit, P/N L36176

1шт.

13

321-4498

DECAL - heater temperature

1шт.

14

321-5875

DECAL

PLATE - engine warning lights, replaces 321-3922 decal

1шт.

Part of Decal Kit, P/N L36176

1шт.

15

321-5734

DECAL

- Warning, pressure cap, radiator

1шт.

Part of Decal Kit, P/N L36176

1шт.

16

321-3919

DECAL

PLATE - maintenance chart

1шт.

Part of Decal Kit, P/N L36176

1шт.

17

321-5872

DECAL

PLATE - transmission direction shift, replaces 321-3923 decal

1шт.

Part of Decal Kit, P/N L36176

1шт.

18

321-5031

DECAL

- Case rear

1шт.

Part of Decal Kit, P/N L36176

1шт.

19

321-3574

DECAL

- lift and tie down instructions

1шт.

Part of Decal Kit, P/N L36176

1шт.

20

321-4425

DECAL

PLATE - cold start, replaces 321-4278 decal

1шт.

21

321-3596

DECAL

- warning, fan

2шт.

Part of Decal Kit, P/N L36176

1шт.

22

321-3705

DECAL

- warning, before operation of machine

1шт.

Part of Decal Kit, P/N L36176

1шт.

23

321-4476

DECAL

- auxiliary lever, front

1шт.

Part of Decal Kit, P/N L36176

1шт.

24

321-4475

DECAL

- auxiliary lever, rear

1шт.

Part of Decal Kit, P/N L36176

1шт.

25

321-5873

DECAL

PLATE - light switch, replaces 321-4691 decal

1шт.

Part of Decal Kit, P/N L36176

1шт.

26

321-3060

DECAL

- Warning-fasten seat belt

1шт.

Part of Decal Kit, P/N L36176

1шт.

27

321-4126

DECAL

- Warning- engine can start

1шт.

Part of Decal Kit, P/N L36176

1шт.

28

321-5871

DECAL

PLATE - key switch, replaces 321-4921 decal

1шт.

Part of Decal Kit, P/N L36176

1шт.

29

321-4922

DECAL

- strobe light switch, if used

1шт.

30

321-4739

EMBLEM

MEDALLION - Case Mark

1шт.

Part of Decal Kit, P/N L36176

1шт.

31

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, medallion

2шт.

Part of Decal Kit, P/N L36176

1шт.

32

D82934

DECAL

- Warning, high voltage, strobe light, not shown

1шт.

33

321-5831

DECAL

- 12 volt

1шт.

Part of Decal Kit, P/N L36176

1шт.

34

321-4952

DECAL

- Push for auxiliary steering

1шт.

35

321-5009

DECAL

- Auxiliary Steering

1шт.

36

321-299

DECAL - Hydraulic Fluid

1шт.

37

321-1708

DECAL

- clam bucket

1шт.

38

151-525

RIVET,Pop, 1/8" x .275"

POP RIVET - decal plate attaching

18шт.

Part of Decal Kit, P/N L36176

1шт.

39

321-4614

TAG

- do not operate

1шт.

L36176

KIT

- decal, Includes: ref. nos. 1 - 12, 14 - 19, 21 - 28, 30, 31, 33, and 38

1шт.
