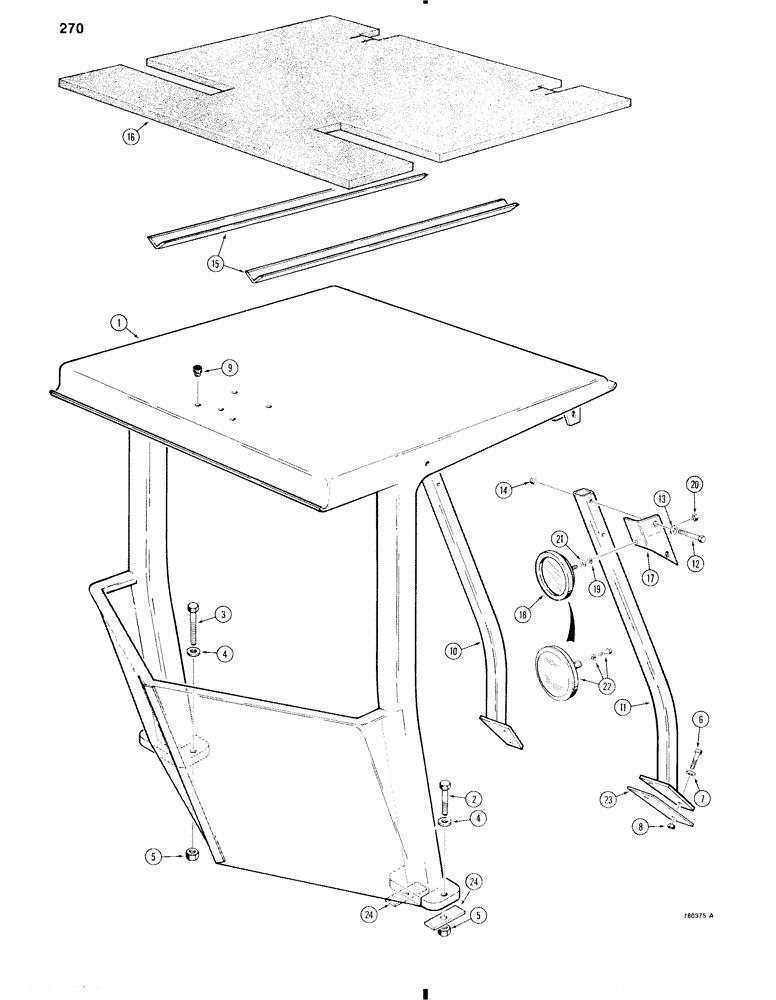

Запчасти Case W11 (270) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROLL OVER PROTECTION STRUCTURE - machinery item, see Fig. 2 for ordering

1шт.

2

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex head, 3/4" - 10 NC x 3-1/2", grade 8

2шт.

3

26-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

- hex head, 3/4" - 10 NC x 5, grade 8

2шт.

4

L79179

WASHER

- hardened

8шт.

5

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

4шт.

6

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

7

R24718

WASHER

- hardened

8шт.

8

131-473

HARDWARE

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

9

L60224

BUMPER

PLUG - if used

5шт.

10

L77808

POST

- left-hand

1шт.

11

L77807

POST

- right-hand

1шт.

12

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

13

R24718

WASHER

- hardened

8шт.

14

131-473

HARDWARE

NUT - hex, self-locking, 1/2" - 13 NC

4шт.

15

L100510

RETAINER

- headliner pad

2шт.

16

L100509

ROOF LINING

PAD - headliner

1шт.

17

L100949

BRACKET

- mirror

1шт.

18

L79999

MIRROR

- 5" (127 mm) diameter, if used, see Ref. 22, Incls. Ref. 20 & 27

1шт.

19

195-103

WASHER,5/16"

- lock, 5/16"

1шт.

20

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC plated

1шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used withRef. 18 only

2шт.

22

L110136

MIRROR

- 6" (152 mm) diameter, includes mounting screw, if used, see Ref. 18

1шт.

23

L100567

PAD

CUSHION - front

2шт.

24

L100569

PAD

CUSHION - rear

4шт.
