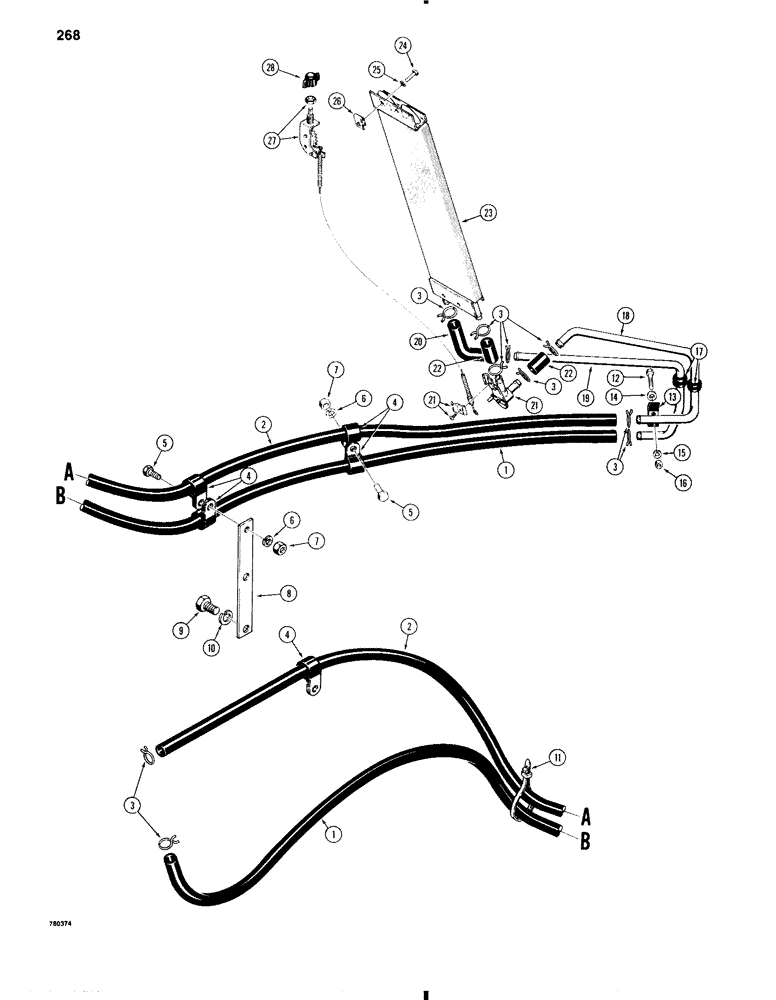

Запчасти Case W11 (268) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

L79484

HOSE

- 5/8" (16 mm) ID x 78" (1961 mm) long

1шт.

2

L13462

HOSE

- 5/8" (16 mm) ID x 82" (2083 mm) long

1шт.

3

214-110

CLAMP,#15, 15/16", Spring

- hose

10шт.

4

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

5шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

L78901

BRACKET

- hose clamp

1шт.

9

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

L76747

STRAP

TIE STRAP - hoses

1шт.

12

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex head, 5/16" - 18 NC x 1-3/4"

1шт.

13

D33316

CLAMP

- tube

1шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

17

L78860

GROMMET

- tube

2шт.

18

L78796

HEATER TUBE,0.625" OD

TUBE - heater

1шт.

19

L78797

HEATER TUBE,0.625" OD x 13.71, 6.58" L

TUBE - heater

1шт.

20

L79703

HOSE

ELBOW - 90 degree, hose

1шт.

21

F63865

VALVE

- heater

1шт.

22

F43183

HEATER HOSE

HOSE - 5/8" (16 mm) ID x 2" (51 mm) long

2шт.

23

L78074

HEAT-EXCHANGER

CORE - heater

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

131-120

NUT

- U-type, 1/4" - 20 NC

4шт.

27

L104585

CABLE PULLING GRIP

CABLE - control

1шт.

28

L74694

KNOB

- control

1шт.
