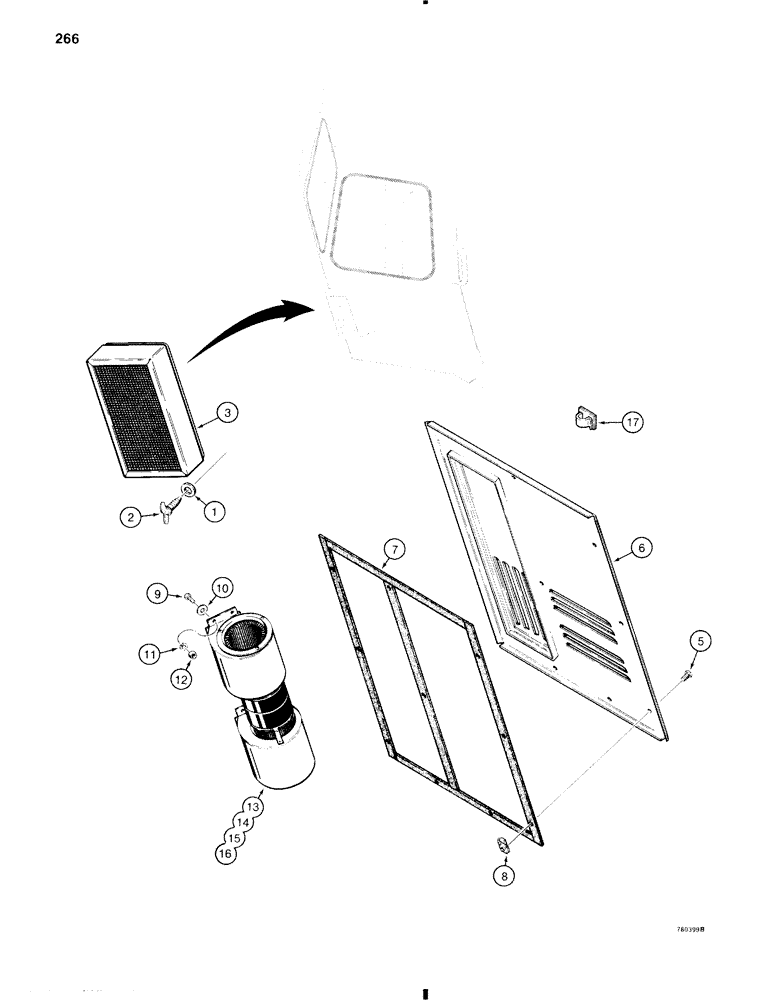

Запчасти Case W11 (266) - CAB BLOWER AND FILTER (09) - CHASSIS/ATTACHMENTS

1

D80651

RETAINER

- ring

2шт.

2

D80652

FASTENER

SCREW - ring

2шт.

3

D80648

FILTER

- air

1шт.

4

RESERVED

1шт.

5

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- Phillips, 1/4" - 20 NC x 1/2"

1шт.

6

D80661

COVER

- blower

1шт.

7

REF

INSTRUCTION

FOAM - 8' (2.4 m) long, cut from D70611

1шт.

8

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type

10шт.

9

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- Phillips, 1/4" - 20 NC x 1/2"

8шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

8шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

12

25-104

NUT,1/4"-20, G5

8шт.

13

D80657

BLOWER

ASSEMBLY - cab, Incls. Ref. 14-16

1шт.

14

N7389

MOTOR, ELECTRIC

MOTOR - blower assembly, not shown separately

1шт.

15

N7390

RESISTOR

- blower motor, not shown separately

1шт.

16

D72761

FAN

WHEEL - fan, blower assembly, not shown separately

2шт.

17

L100659

CLIP

- blower wire

1шт.

D70611

RUBBER JOINT

FOAM - bulk, 50' (15.2 m) long

1шт.
