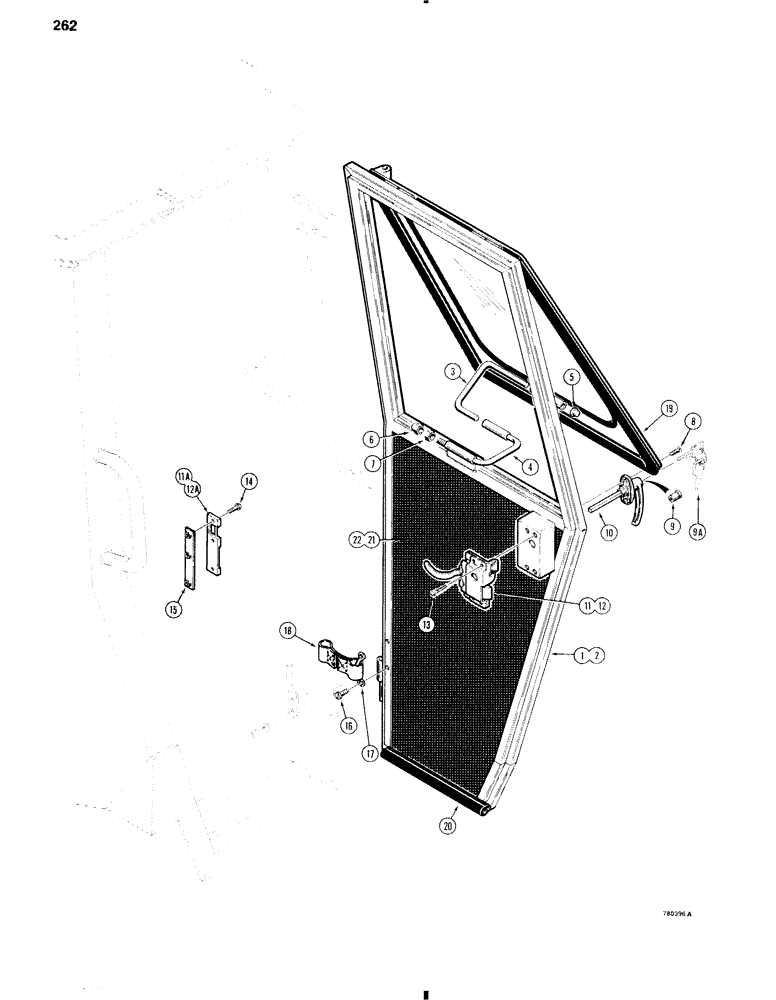

Запчасти Case W11 (262) - CAB DOORS AND LATCHES (09) - CHASSIS/ATTACHMENTS

1

D80667

DOOR

- right-hand

1шт.

2

D80668

DOOR

- left-hand

1шт.

3

D80669

LATCH

- outer

2шт.

4

D80670

LATCH

- inner

2шт.

5

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , Round Push, 1/2"

2шт.

6

129-544

NUT,Crown, 1/2"-13

- domed, 1/2" - 13 NC

2шт.

7

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

8

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- flat head slotted, No. 10 - 24 NC x 5/8"

4шт.

9

D83099

LOCK

ASSEMBLY - cylinder

2шт.

9a

A77313

SET OF 2 KEYS

KEYS - set of two

1шт.

10

D80653

HANDLE

- door

2шт.

D80654

LATCH

AND STRIKER PLATE ASSEMBLY - right-hand, Incls. Ref. 11 & 11A

1шт.

11

NSS

NOT SOLD SEPARAT

LATCH - right-hand

1шт.

11a

N9739

PLATE

- striker, left-hand

1шт.

D80655

LATCH

AND STRIKER PLATE ASSEMBLY - left-hand, Incls. Ref. 12 & 12A

1шт.

12

NSS

NOT SOLD SEPARAT

LATCH - left-hand

1шт.

12a

N9739

PLATE

- striker, left-hand

1шт.

13

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- round head, slotted, No. 10 - 24 NC x 3/4"

8шт.

14

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- round head, Phillips, 1/4" - 20 NC x 1"

6шт.

15

D80642

RUBBER

PLATE - backing

2шт.

16

171-116

SCREW - flathead, slotted, No. 10 - 24 NC x 1/2"

4шт.

17

D80649

BRACKET - strap, if used

2шт.

18

D80650

FITTING

STRAP - web, if used

2шт.

19

REF

INSTRUCTION

SEAL - 89" (2261 mm) cut from F43117

2шт.

20

REF

INSTRUCTION

SEAL - 24" (51 mm) cut from D80645

2шт.

21

D83103

INSULATOR

PAD - left-hand

1шт.

22

D83102

INSULATOR

PAD - right-hand

1шт.

F43117

SEAL

- bulk, 50' (15.2 m)

1шт.

D80645

SEAL

- bulk, 50' (15.2 m)

1шт.
