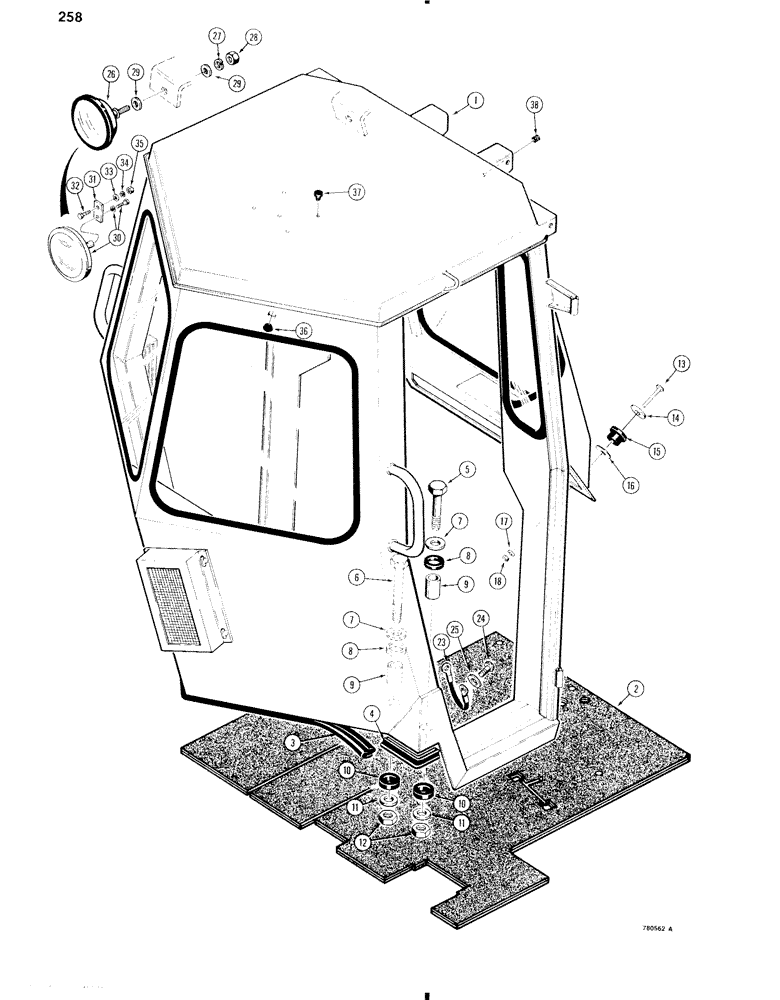

Запчасти Case W11 (258) - CAB MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - machinery item, see Fig. 2 for ordering

1шт.

2

L78035

MAT

- floor

1шт.

3

L79438

SEAL

- rear

1шт.

4

L79437

SEAL

- side

2шт.

5

26-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- hex head, 3/4" - 10 NC x 4-1/2", grade 8

2шт.

6

26-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

- hex head, 3/4" - 10 NC x 6", grade 8

2шт.

7

L79117

WASHER

- special

4шт.

8

L79118

PAD

- upper

4шт.

9

L79119

SLEEVE

- bolt

4шт.

10

L79120

PAD

- lower

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

12

129-572

NUT,3/4"-10, G8

4шт.

13

164-577

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 2 1/2"

SCREW - round head, hex socket, 1/2" - 13 NC x 2-1/4", grade 8

2шт.

14

195-2054

WASHER,17/32" x 2" x .238"

- flat, 1/2"

2шт.

15

L46821

SHOCK ABSORBER

CUSHION - rubber

2шт.

16

L79139

WASHER

- special

2шт.

17

R24718

WASHER

- special

2шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

23

L79143

ELECTRICAL WIRE

WIRE - ground

1шт.

24

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - self-tapping No. 8 - 32 NC x 3/8"

1шт.

25

195-10

WASHER,#8

1шт.

26

L79999

MIRROR

- 5" (127 mm) diameter, if used, see Ref. 30, Incls. Ref. 27 & 28

1шт.

27

195-103

WASHER,5/16"

- lock, 5/16"

1шт.

28

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC plated

1шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16", used with item 26 only

2шт.

30

L110136

MIRROR

- 6" (152 mm) diameter, includes mounting screw, if used

1шт.

see item 26

1шт.

31

L17660

BAR

PLATE - mirror to bracket, required only when replacing a 5" mirror

1шт.

with a 6" mirror, if used

1шт.

32

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

If used Hex, 1/4"-20 x 1", G5

1шт.

33

95-4

WASHER,1/4"

- flat, , if used 1/4"

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

35

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

1шт.

36

D83100

BUTTON

PLUG - button, used on models without rear wipers

2шт.

37

D83101

BUTTON

PLUG - rubber, if used

2-11шт.

38

T34938

GROMMET - head lamp wire

2шт.
