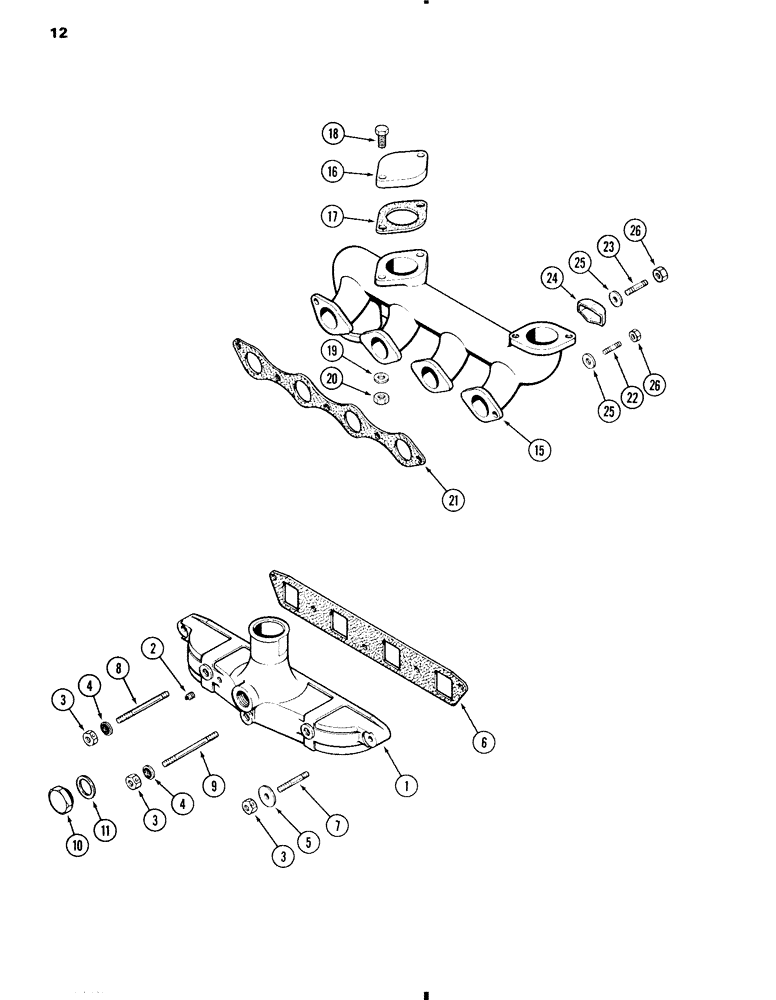

Запчасти Case W11 (012) - MANIFOLDS, 207 DIESEL ENGINE, INTAKE MANIFOLD (02) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY - intake, Incls, Ref. 2-5

1шт.

2

221-11

PLUG,Sq Hd, 1/8"-27

- 1/8 inch PT, square head

1шт.

3

25-166

NUT,3/8"-16, G5, Hvy

- 3/8 inch NC hex

5шт.

4

A50694

DISC

WASHER - with rubber insert (Used with center and intermediate studs)

3шт.

5

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (end studs) 9.5 x 20.6 x 1.6 mm)

2шт.

6

G46871

GASKET

-, Serial Range: manifold-head

1шт.

7

A140924

STUD

- end holes, 3/8 NC x 2-7/16 inch

2шт.

8

A153248

STUD

- intermediate holes, 3/8 NC x 4-13/16 inch

2шт.

9

A51500

STUD

- center hole, 3/8 NC x 5-5/16 inch

1шт.

10

A20917

PLUG

- manifold (Heater hole)

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

15

A39233

MANIFOLD

ASSEMBLY - exhaust, Incls. Ref.16-20

1шт.

16

A38188

PLATE

- cover, exhaust manifold

2шт.

17

G46853

MANIFOLD GASKET

- cover plate, exhaust manifold

2шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover plate, exhaust manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

19

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (9.5 x 20.6 x 1.6 mm), exhaust manifold

4шт.

20

131-903

NUT,3/8"-16

NUT - 3/8 inch NC hex (Seez-pruf), exhaust manifold

4шт.

21

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

22

A29431

STUD

- end holes, 3/8 NC x 1-3/4 inch, exhaust manifold

2шт.

23

A140924

STUD

- manifold clamps, 3/8 NC x 2-1/16 inch, exhaust

3шт.

24

A35028

CLAMP

- manifold, exhaust

3шт.

25

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (9.5 x 20.6 x 1.6 mm), exhaust manifold

5шт.

26

131-903

NUT,3/8"-16

NUT - 3/8 inch NC hex (Seez-pruf), exhaust manifold

5шт.
