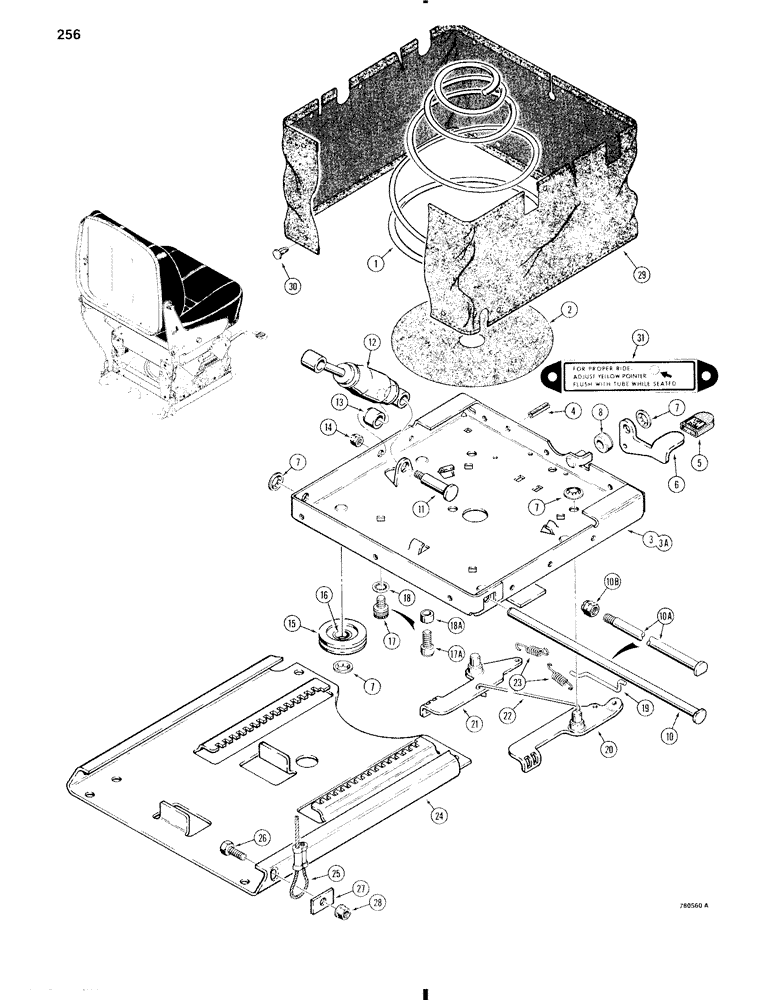

Запчасти Case W11 (256) - L79455 SUSPENSION SEAT, INCLUDES PARTS ON PAGES 253-257 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
L79455
SEAT
ASSEMBLY - includes parts on Fig. 52-256, and Ref. 1-31
1шт.
1
A45497
SPRING
- seat
1шт.
2
A45530
PAD
- spring base
1шт.
3
D82811
HOUSING
- lower, uses Ref. 10, no longer available, order Ref. 3A, 10A, and 10B
1шт.
3a
N6858
HOUSING
- lower, uses items 10A and 10B
1шт.
4
138-134
LOCK PIN,1/4" x 1", Slotted
PIN, 1/4" x 1", Slotted
1шт.
5
D82819
CAP
AND DECAL - slide lever
1шт.
6
D82817
LEVER
- slide
1шт.
7
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, , Used with item 10 only Push, 1/2"
8шт.
8
NSS
NOT SOLD SEPARAT
SPACER - lever
1шт.
9
RESERVED
1шт.
10
A45057
SHAFT
- used with items 3 and 7 only
1шт.
10a
A47762
SHAFT
- with threaded end for self-locking nut
1шт.
10b
131-542
LOCK NUT,3/8"-16
NUT - hex, self-locking, 3/8" - 16 NC, used with item 10A
1шт.
11
A45056
STEP BOLT
BOLT - shoulder
1шт.
12
D82835
SHOCK ABSORBER
- seat
1шт.
13
D45501
BEARING - shock absorber
1шт.
14
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 1/2" - 13 NC
1шт.
15
D82820
ROLLER
- slide track, Incls. Ref. 16
4шт.
16
D82821
BEARING
- roller
1шт.
17
D82818
BOLT
- special, if used
1шт.
17a
165-181
BOLT,1/2" - 13 x 7/8"
- hex socket head, 1/2" - 13 NC x 7/8", if used
1шт.
18
193-77
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, , If used Int Tooth, 1/2"
1шт.
18a
N6713
SPACER
- used with item 17A only, if used
1шт.
19
D82814
ROD
- latch
1шт.
20
D82813
LATCH
- right-hand
1шт.
21
D82812
LATCH
- left-hand
1шт.
22
D82816
LINK
- latch
1шт.
23
D82815
SPRING
- latch
2шт.
24
N6848
TRACK CHAIN
PLATE AND TRACK - seat
1шт.
25
D82874
CABLE
- plate
2шт.
26
113-293
BOLT
- hex head, 3/8" - 16 NC x 1", plated
2шт.
27
NSS
NOT SOLD SEPARAT
PLATE - retaining
2шт.
28
131-542
LOCK NUT,3/8"-16
NUT - hex, self-locking, 3/8" - 16 NC
2шт.
29
N6295
BOOT
APRON - vinyl
1шт.
30
151-705
CLIP,Rd 1/2" Hd, 1/4" Hole
FASTENER - button
23шт.
31
A47778
DECAL
- For Proper Ride
1шт.
Выбрано товаров: 37
