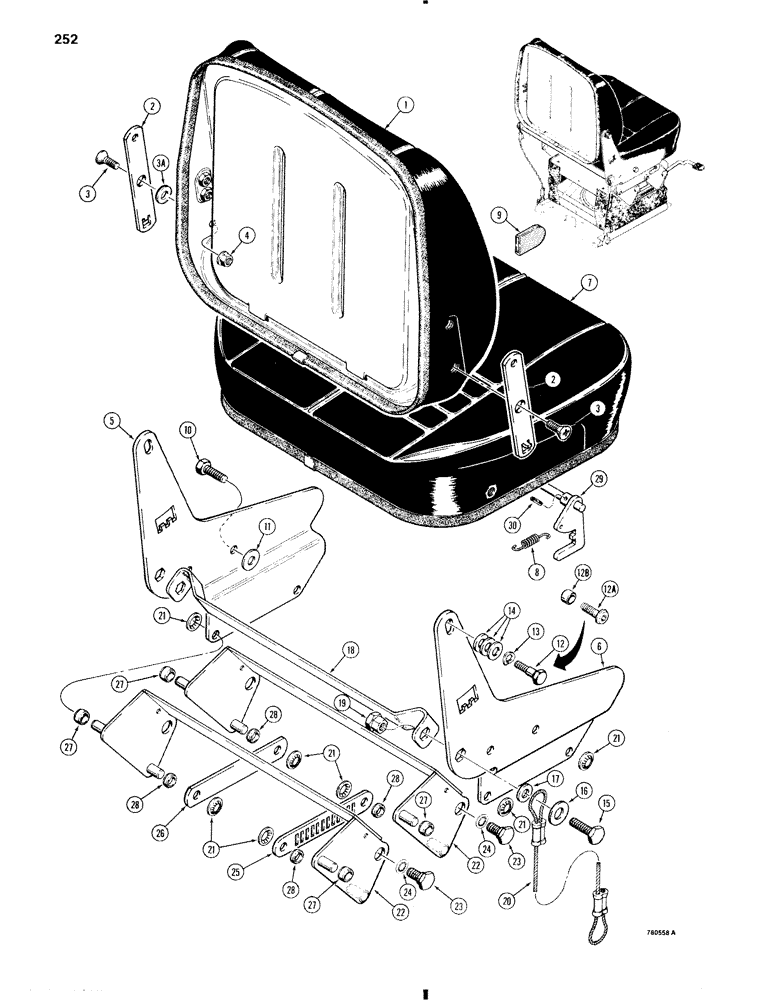

Запчасти Case W11 (252) - L79455 SUSPENSION SEAT, INCLUDES PARTS ON PAGES 253-257 (09) - CHASSIS/ATTACHMENTS

L79455

SEAT

ASSEMBLY - includes parts on Fig. 253-257, Incls. Ref. 1-12 and P/N D82785

1шт.

D82785

CUSHION ASSY.

CUSHION ASSEMBLY - seat back, Incls. Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat back

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - cushion

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- flat head, Phillips, 3/8" - 16 NC x 1", plated

2шт.

3a

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

4

131-1352

LOCK NUT,Flg, 3/8"-16

NUT - hex flange, 3/8" - 16 NC, plated

2шт.

5

D82786

BRACKET - left-hand

1шт.

6

D82787

BRACKET - right-hand

1шт.

7

D82784

CUSHION

- seat bottom

1шт.

8

D82869

SPRING

- tilt shaft

2шт.

9

A47347

CAP

AND DECAL - tilt lever

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

11

195-533

WASHER,1/2", SAE

2шт.

12

D82788

BOLT

- shoulder, no longer available, order Ref. 12A and 12B

2шт.

12a

164-417

HEX SOC SCREW,Btn Hd, 3/8" - 16 x 1 1/4"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/4", grade 8, if used

2шт.

12b

N6875

SPACER

- bolt, if used, Incls. Ref. 13-30

2шт.

13

D82791

WASHER

- spring

2шт.

14

A45110

WASHER

- special, if used

1шт.

15

D82872

BOLT

- shoulder

2шт.

16

195-541

WASHER,5/8", SAE

- flat, 5/8"

2шт.

17

195-533

WASHER,1/2", SAE

- flat, 1"

2шт.

18

D82871

BAR

- spacer

1шт.

19

D82873

SPECIAL NUT

- hex, special

2шт.

20

D82874

CABLE

- side brackets

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

12шт.

22

A47379

LINK

BRACKET - tie

2шт.

23

A45473

STEP BOLT

BOLT - shoulder

4шт.

24

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

25

D82860

LINK

LEVER - adjusting

1шт.

26

D82860

LINK

LEVER - brackets

1шт.

27

A47760

BUSHING

BEARING - brackets

4шт.

28

NSS

NOT SOLD SEPARAT

SPACER - levers

4шт.

29

D82868

SHAFT

ASSEMBLY - seat tilt

1шт.

30

138-2057

PIN,5/32" x 5/8", Coiled

1шт.
