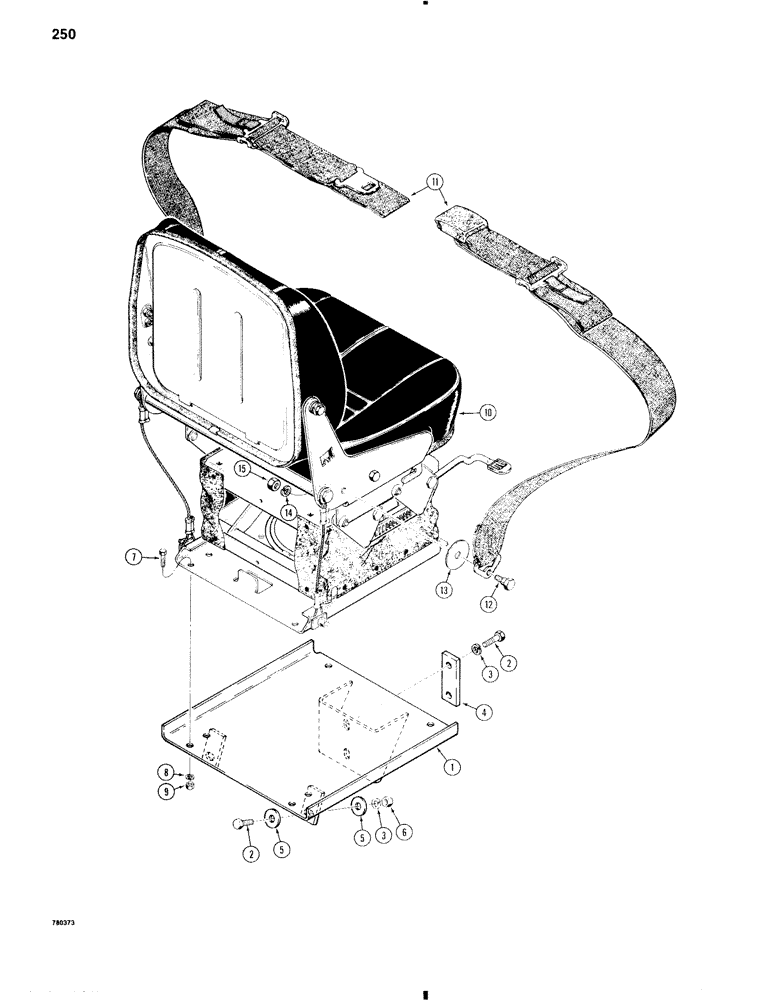

Запчасти Case W11 (250) - SUSPENSION SEAT AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

L78849

MOUNTING PARTS

BRACKET - seat support

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

L76670

PLATE

- retaining

1шт.

5

95-8

WASHER,1/2"

flat 1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

10

L79455

SEAT

- suspension, parts list figures 252 thru 256

1шт.

11

D85816

SAFETY BELT

BELT SET - seat, 3"

1шт.

12

F42236

STEP BOLT

BOLT - shoulder - 7/16" - 14 NC x 1-1/4"

2шт.

13

L79092

WASHER

- hardened

2шт.

14

92-7

LOCK WASHER,7/16"

2шт.

15

25-117

NUT,7/16"-20, G5

- hex, 7/16" - 14 NC

2шт.
