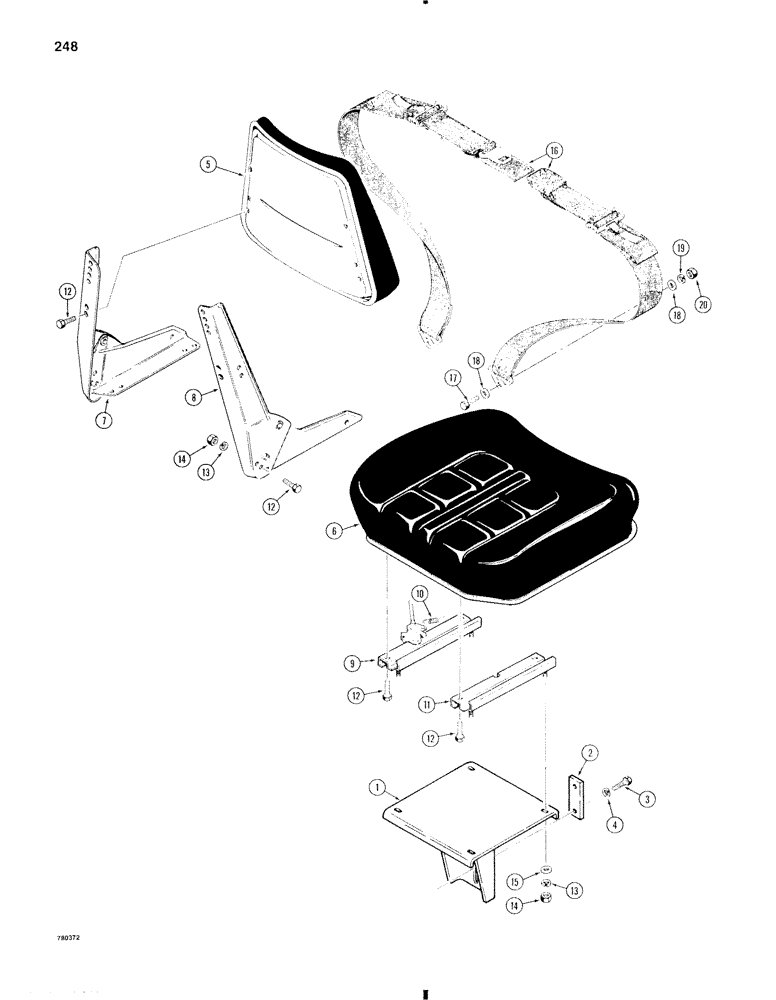

Запчасти Case W11 (248) - STANDARD SEAT AND SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

L74942

BRACKET

- seat support

1шт.

2

L76670

PLATE

- retaining

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

L54089

SEAT

- standard, Incls. Ref. 5-14

1шт.

5

D56884

BACKREST

- seat

1шт.

6

D56883

SEAT

CUSHION - seat

1шт.

7

D56885

RAIL ASSY.

FRAME - left-hand

1шт.

8

D56886

RAIL ASSY.

FRAME - right-hand

1шт.

9

L35629

ADJUSTER

SLIDE - left-hand

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - slide

1шт.

11

L35272

ADJUSTER

SLIDE - right-hand

1шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

14шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

14

9635082

NUT,5/16" - 18, Gr 5

6шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

16

D85816

SAFETY BELT

BELT SET - seat, optional, 3"

1шт.

16

D75428

SAFETY BELT

SAFETY BELT, Standard,, 2"

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

18

R24718

WASHER

- special

4шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.
