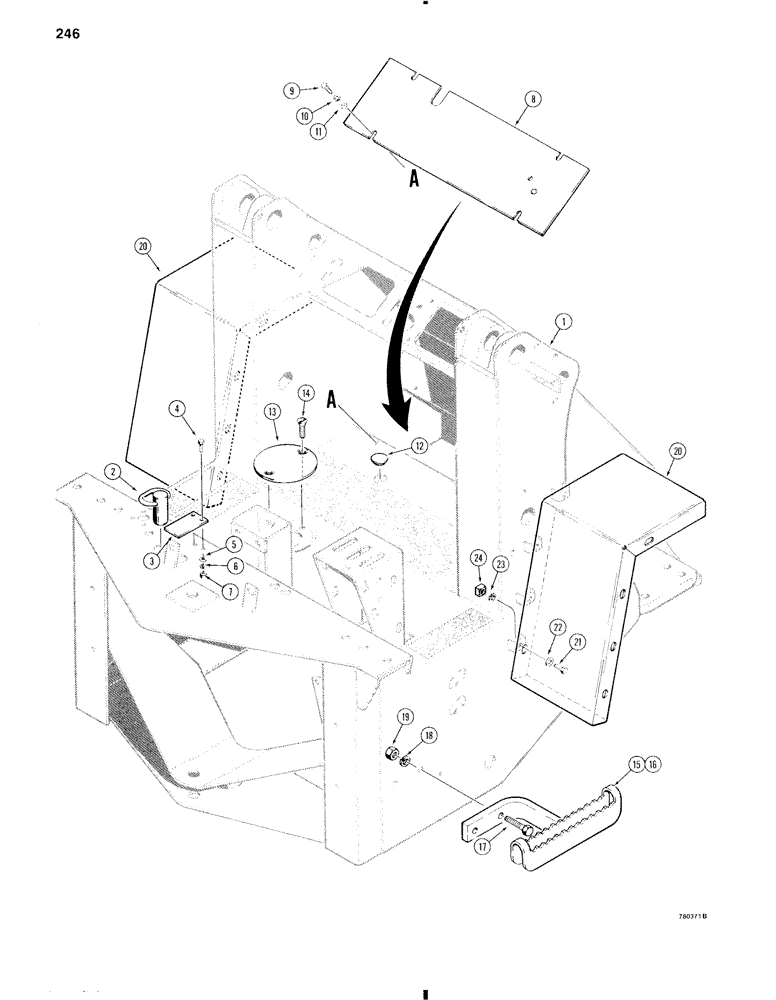

Запчасти Case W11 (246) - FRONT FRAME AND FENDERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - front chassis, parts list Fig. 244

1шт.

2

L77202

PIN

Lock

1шт.

3

L78519

SEAL

Lock, if used

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

Flat, 5/16"

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

L77719

PLATE

Operators compartment

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

4шт.

12

353-415

PLUG,Dome, 1.500" hole, Nylon

1шт.

13

L76312

COVER

Access

1шт.

14

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

Slotted flat head, 5/16" - 18 NC x 3/4"

2шт.

15

L77744

STEP

RH

1шт.

16

L77745

STEP

LH

1шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

25-108

NUT,1/2"-13, G5

4шт.

20

L76447

FENDER

Front

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

22

95-6

WASHER,3/8"

8шт.

23

92-6

LOCK WASHER,3/8"

8шт.

24

25-226

SQUARE NUT,Sq, 3/8"-16

8шт.
