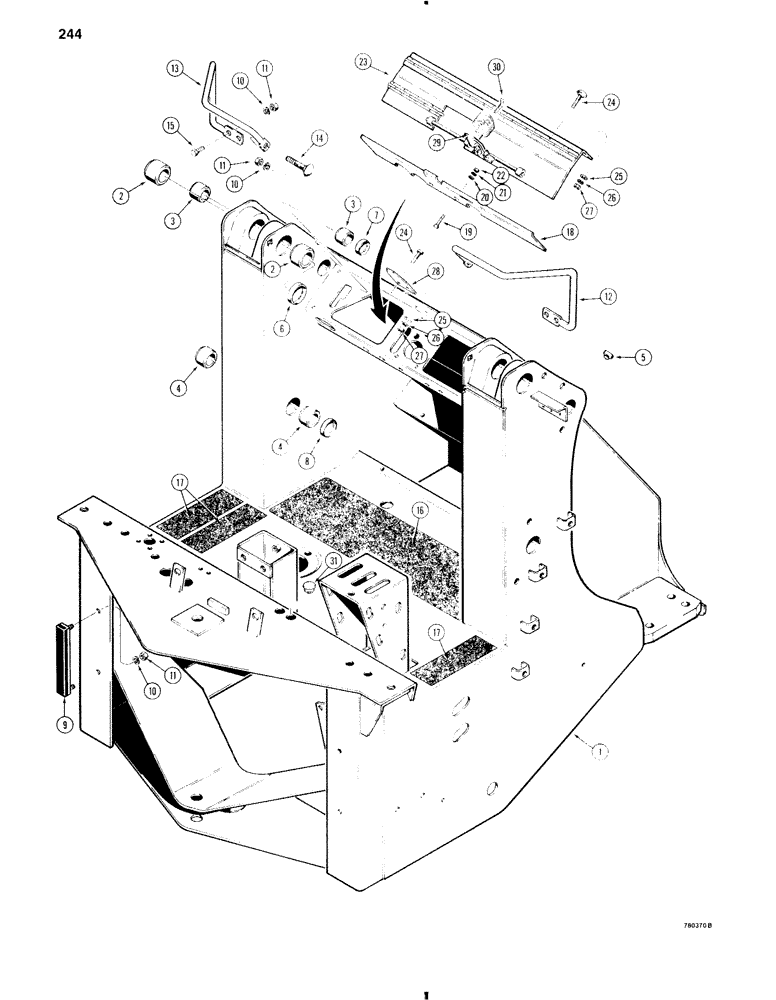

Запчасти Case W11 (244) - FRONT FRAME, COVERS, AND HANDLES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L111830
CHASSIS
FRAME - front chassis, when replacing front frame with 7/8" lower mounting bolt, also order L36243 kit, see Fig. 238 for kit components Incls Ref. 2-4
1шт.
2
L77537
BUSHING
- at loader lift frame
4шт.
3
D43056
BUSHING
- at loader links
4шт.
4
D34340
BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L
- at loader lift cylinders
4шт.
5
L60224
BUMPER
PLUG - if used
2шт.
6
41-1038
PLUG,Cup, 2 3/8"
- if used
2шт.
7
41-1030
PLUG,Cup, 1 7/8"
- if used
2шт.
8
41-1034
PLUG,Cup, 2 1/8"
- if used
2шт.
9
L77094
BUMPER
- rubber
2шт.
10
92-6
LOCK WASHER,3/8"
4-8шт.
11
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4-8шт.
12
L77635
HANDLE
- grab, right-hand, used on canopy models
1шт.
13
L77636
HANDLE
- grab, left-hand, used on canopy models
1шт.
15
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
2шт.
17
L48674
PAD
- non skid, rear, 3-1/2" (89 mm) x 9-1/2" (241 mm) if used
3шт.
17
D55216
PAD,2" x 9"
PAD - non skid, rear, 2" (51 mm) x 9" (229 mm) if used
3шт.
18
L78696
LARGE PLATE
PLATE - bottom
1шт.
19
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex head, 3/8" - 16 NC x 1-1/2"
2шт.
20
195-25
WASHER,3/8"
- flat, 3/8"
2шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
2шт.
23
L78700
COVER ASSY
COVER - instrument panel
1шт.
24
21-512
CARRIAGE BOLT - 5/16" - 18 NC x 3/4"
5шт.
25
95-5
WASHER,3/8" x 7/8" x .083"
- flat, 5/16"
5шт.
26
92-5
LOCK WASHER,5/16"
5шт.
27
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
5шт.
28
L79372
BRACKET
1шт.
29
D93753
PADLOCK
- includes keys, Ref. 30
1шт.
30
R29555
KEY
- for Master padlock only
2шт.
30
D93751
SET OF 2 KEYS
KEY - for Yale padlock only
2шт.
31
353-411
PLUG,Dome, 1.000" hole, Nylon
Models without heater, If used Dome, 1.000" hole, Nylon
2шт.
