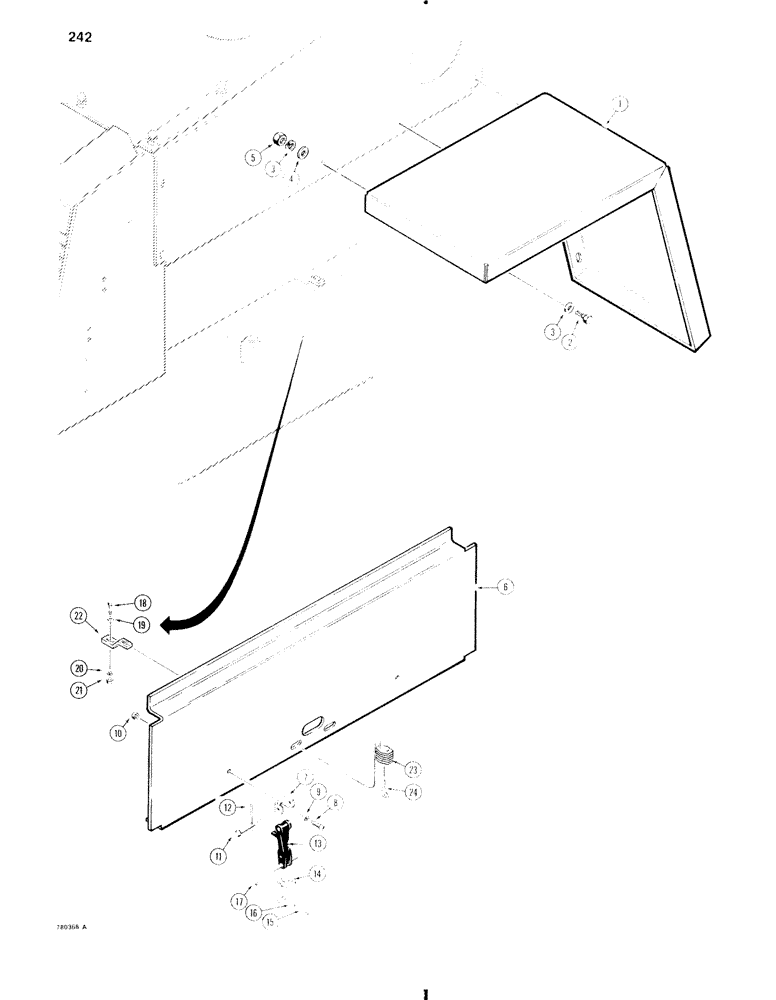

Запчасти Case W11 (242) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

L103993

FENDER

- rear

2шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

12шт.

4

92-6

LOCK WASHER,3/8"

8шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

6

L76897

PANEL, SIDE

PANEL - side

2шт.

7

L47159

BRACKET

- anchor

4шт.

8

182-242

SCREW,Sl Pan Hd, 5/16" - 18 x 3/4"

- slotted, 5/16" - 18 NC x 3/4"

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

11

T11232

PIN

CLEVIS PIN - latch

4шт.

12

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

4шт.

13

L47157

HOOK

LATCH - rubber

4шт.

14

L47158

BRACKET

- lock

4шт.

15

163-12

SCREW,Hex, #10 - 24 x 3/4"

MACHINE SCREW - hex head, No. 10 - 24 NC x 3/4"

8шт.

16

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

17

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

8шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

19

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

22

L78760

BAR - lock

2шт.

23

D93753

PADLOCK

- includes keys, Incls. Ref. 24

2шт.

24

R29555

KEY

- for Master padlock only

2шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
