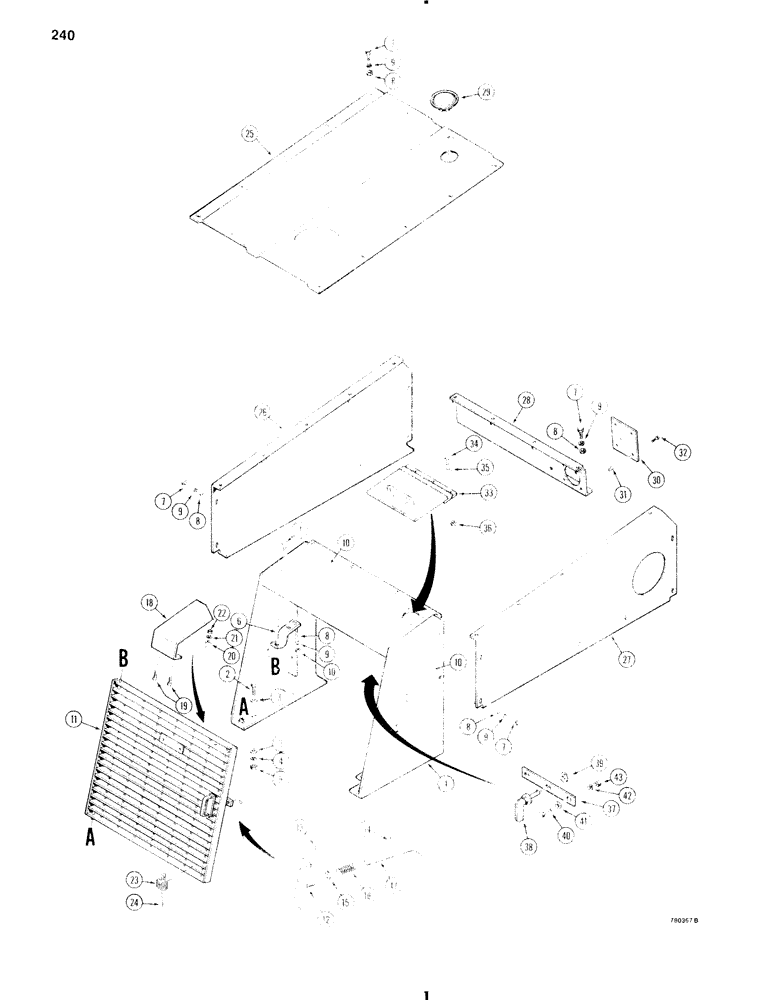

Запчасти Case W11 (240) - GRILLE AND HOOD (09) - CHASSIS/ATTACHMENTS

1

L104312

GUARD ASSY.

SHROUD - radiator

1шт.

2

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

3

95-12

WASHER,3/4"

- flat, 1/2"

8шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

6

L76889

SUPPORT

BRACKET - grille

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

24-28шт.

8

95-6

WASHER,3/8"

- flat, 3/8"

28-32шт.

9

92-6

LOCK WASHER,3/8"

24-28шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

11

L101715

GRILLE

- rear

1шт.

12

L73738

HANDLE

- grille

1шт.

13

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

14

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

15

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

16

L76665

SPRING

- latch

1шт.

17

L73742

ROD

- latch

1шт.

18

NSS

NOT SOLD SEPARAT

COVER - used on some machine, order Ref. 33-43

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

23

D93753

PADLOCK

- includes keys, if used, Incls. Ref. 24

1шт.

24

R29555

KEY

- for Master padlock only

2шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

25

L106480

HOOD

- top, when replacing the hood before tractor SN 9141069 except for 9141056, also order (2) G46853 gaskets and move the

1шт.

muffler to rear exhaust manifold port

1шт.

26

L77664

PANEL - left-hand

1шт.

27

L77666

PANEL - right-hand

1шт.

28

L103725

PANEL

- front, used before tractor SN 9141264 only, Serial Range: -9141264

1шт.

29

L52474

PLUG

- used on models without air cleaner

1шт.

30

L54570

COVER

- protective, Lexan, if used

1шт.

31

L72459

SPACER

- cover, if used

4шт.

32

187-491

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - No. 14 x 1", self-tapping

4шт.

33

L104315

COVER

- radiator

1шт.

34

163-15

SCREW,Hex, #10 - 24 x 5/8"

- No. 10 x 5/8"

2шт.

35

95-3

WASHER,#12

- flat, 3/16"

2шт.

36

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

37

L101459

PLATE

- retainer, if used

1шт.

38

L104816

RETAINER

- cover

1шт.

39

L48760

WASHER

- special

1шт.

40

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

41

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.
