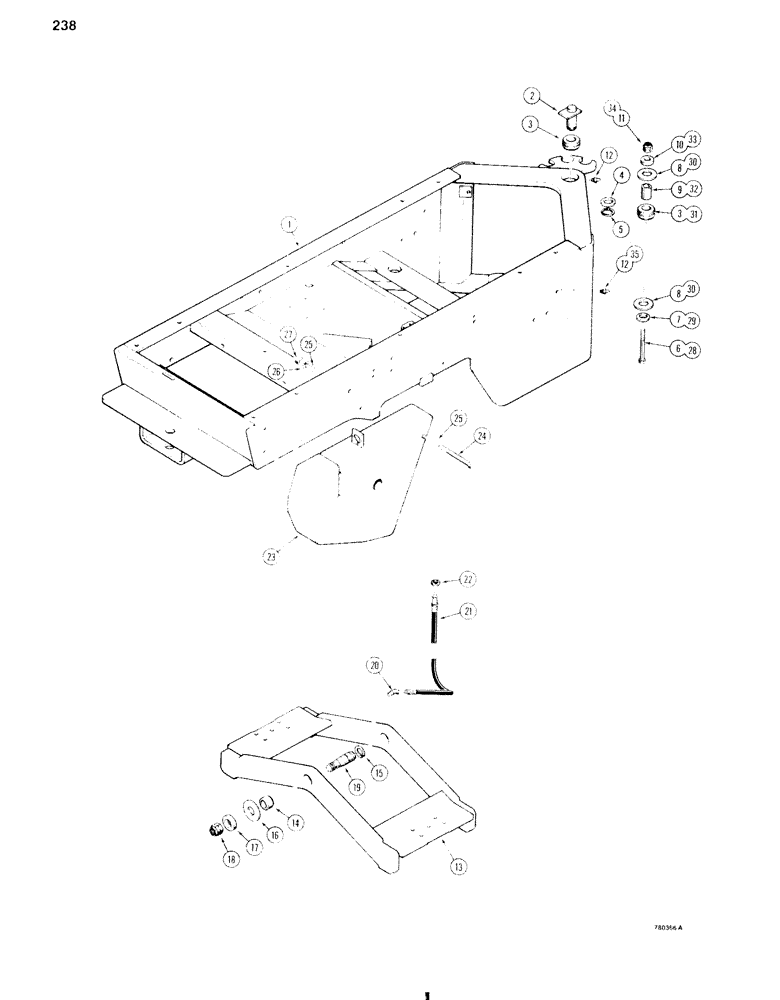

Запчасти Case W11 (238) - REAR FRAME AND TRUNNION (09) - CHASSIS/ATTACHMENTS

1

L111831

CHASSIS

FRAME - rear, when replacing frame with 7/8" lower pivot

1шт.

bolt (Ref. 6) also order L36243 kit below

1шт.

2

L74169

PIN,38.1mm OD x 102.62mm L

- upper

1шт.

3

L74160

BEARING

- self-aligning

2шт.

4

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- flat, 1-1/2"

1шт.

5

T37909

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

6

26-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

- hex head, 7/8" - 9 NC x 5-1/2", grade 8

1шт.

7

L79570

WASHER

- hardened

1шт.

8

L74364

WASHER

SPACER - washer

2шт.

9

L79572

SPACER

- tube

1шт.

10

L79571

SPACER

WASHER - special

1шт.

11

L101074

NUT

- hex self-locking, 7/8" - 9 NC, special

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

13

L74223

TRUNNION

- rear frame, Incls. Ref. 14

1шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- trunnion

2шт.

15

T37909

SNAP RING,#150, Ext

Ring, Snap, , if used #150, Ext

2шт.

16

L77874

WASHER

- special, steel, 1/4" (6 mm) thick, if used

1шт.

16

L105175

WASHER

- special, steel, 3/16" (5 mm) thick, if used

1шт.

16

L60775

WASHER

- special, polyethylene, 1/4" (6 mm) thick, if used

1шт.

16

L60774

WASHER

- special, polyethylene, 3/16" (5 mm) thick, if used

1шт.

17

L76697

WASHER

- special

2шт.

18

131-41

LOCK NUT,1 1/4"-12, GB

NUT - hex, self-locking, 1-1/4" - 12 NF

2шт.

19

L74168

PIN

- threaded, has groove for snap ring, Ref. 15, if used

2шт.

19

L60132

PIN

- threaded, does not use snap ring, Ref. 15, if used

2шт.

20

219-81

ELBOW,45 Degree, 1/8"-27

FITTING - 45 degree

2шт.

21

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

AND FITTING - 21" (533 mm) long

2шт.

22

F53473

LOCK NUT,1/8-27 NPSM

- lock, special

2шт.

23

L78151

WEIGHT

COUNTERWEIGHT - rear

2шт.

24

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex head, 3/4" - 10 NC x 6-1/2"

6шт.

25

L79179

WASHER

- special

12шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

27

25-1012

NUT,3/4"-10, G5

6шт.

L36243

KIT

- includes all parts to convert to 1" lower pivot bolt, includes ,instructions

1шт.

28

26-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 8

- hex head, 1" - 8 NC x 5-1/2", grade 8, parts used with 1 inch lower pivot

1шт.

29

L111089

WASHER,26.42mm ID x 63.5mm OD x 6.35mm Thk

- hardened, parts used with 1 inch lower pivot bolt

1шт.

30

L110896

WASHER,45.21mm ID x 85.85mm OD x 8.43mm Thk

SPACER - washer, parts used with 1 inch lower pivot bolt

2шт.

31

S229376

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - self-aligning, parts used with 1 inch lower pivot bolt

1шт.

32

L111090

SPACER

- tube, parts used with 1 inch lower pivot bolt

1шт.

33

L111088

WASHER

- special, parts used with 1 inch lower pivot bolt

1шт.

34

L111114

NUT

- hex, self-locking, 1" - 8 NC, special, parts used with 1 inch lower pivot bolt

1шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, parts used with 1 inch lower pivot bolt

1шт.
