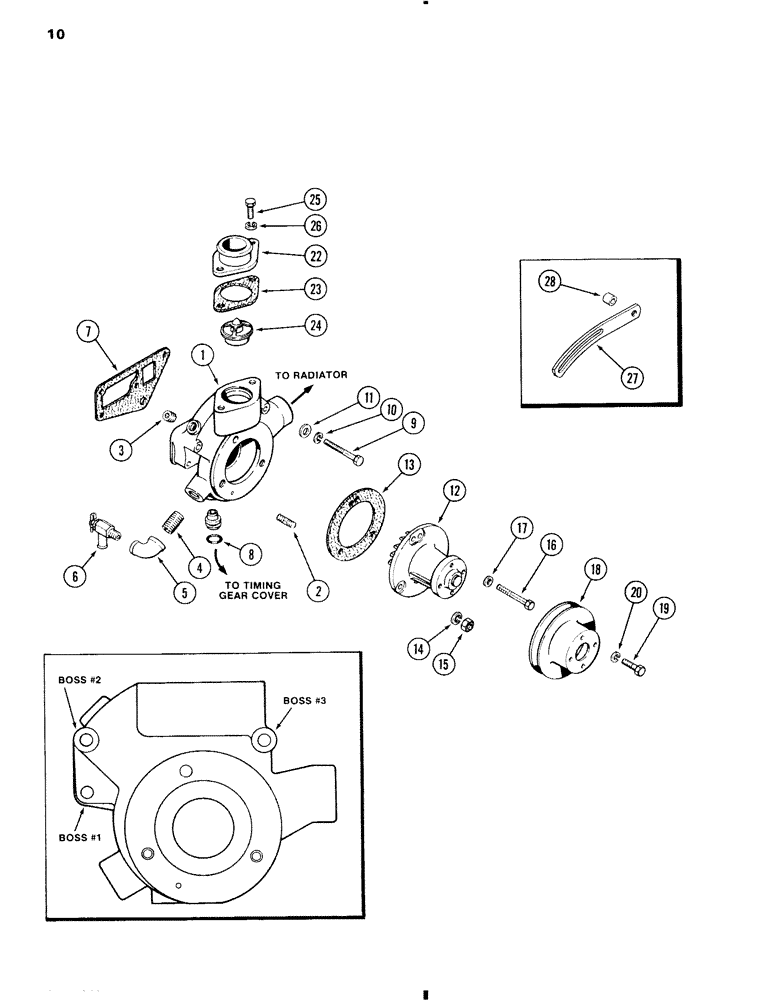

Запчасти Case W11 (010) - WATER PUMP AND THERMOSTAT, 207 DIESEL ENGINE (02) - ENGINE

1

A152801

BODY

BODY ASSEMBLY - water pump Incls. Ref. 1-3

1шт.

2

A29433

STUD

STUD - water pump to body, 3/8 NC x 1 inch

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8 inch PT, socket head

1шт.

3

221-844

PLUG,Hex Soc, 1/2"-14

PLUG - 1/2 inch PT, socket head (not used with this model)

1шт.

4

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - 1/2 PT x 1-1/8 inch (in housing body)

1шт.

5

221-382

ELBOW

ELBOW - reducing, 1/2 PT to 3/8 inch PT

1шт.

6

A16764

VALVE

VALVE ASSEMBLY - shut-off

1шт.

7

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - body to timing gear cover, 3/4 x 1 x 1/8 inch

1шт.

The fitting above item no. 8 o'ring is part no. a152715 w/p fitting.mck9/97

1шт.

.

(19.05 x 25.4 x 3.18 mm)

1шт.

9

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

BOLT - body to cylinder head (Boss No. 1)(3/8 x 1-7/8 inch NC hex)

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - body to cylinder head (Boss No. 2 and No. 3) (3/8 x 2-3/4 inch NC hex)

2шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

11

195-104

WASHER,3/8"

WASHER - flat, 7/16 x 1 x 5/64 inch (11.1 x 25.4 x 2 mm)

2шт.

12

A146584

PUMP, WATER

PUMP ASSEMBLY - water Incls. Ref. 13

1шт.

12

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

12

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

12

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

12

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

12

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

13

A38083

GASKET

GASKET - water, Serial Range: pump-body

1шт.

14

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

NUT - 3/8 inch NC hex

2шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - pump to body, 3/8 x 2-3/4 inch NC hex

1шт.

17

A7085

WASHER

WASHER - copper

1шт.

18

G11339

PULLEY

PULLEY - water pump

1шт.

19

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , Pulley to pump Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

20

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

22

G2144

FITTING

HOUSING - thermostat

1шт.

23

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

24

A57641

THERMOSTAT

THERMOSTAT - water, 180\(deF (82\(deC)

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Housing to body Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

27

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

28

G11271

SPACER

SPACER - adjusting strap, 3/8 x 5/8 x 1/8 inch (9.53 x 15.88 x 3.18 mm)

1шт.
