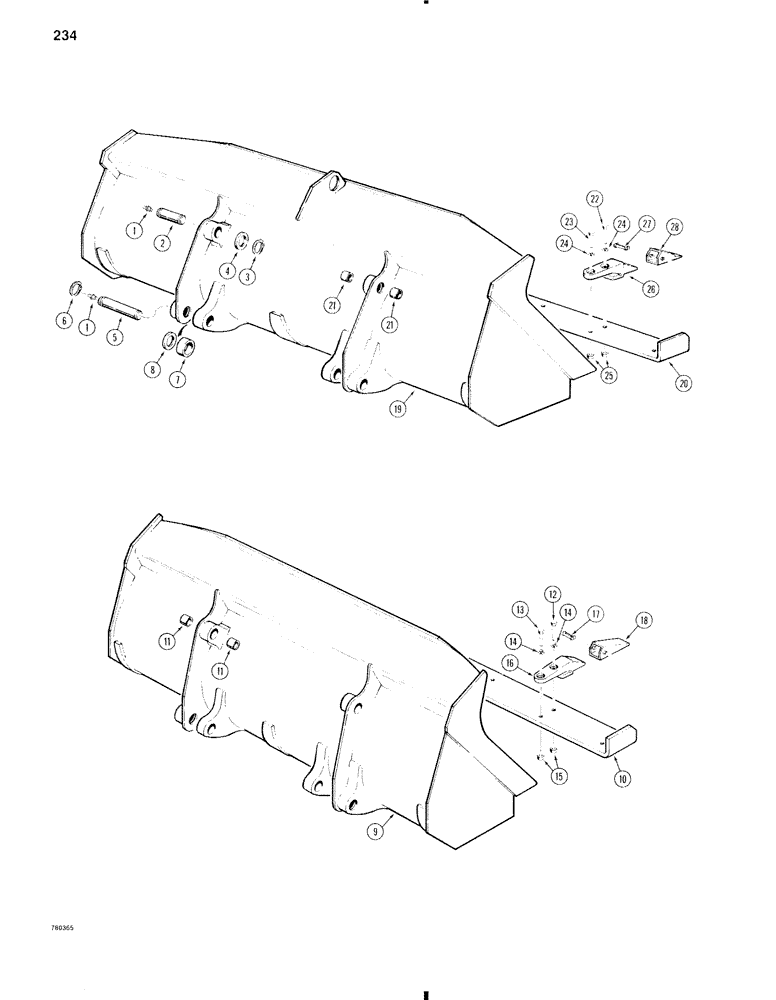

Запчасти Case W11 (234) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

2

D40037

PIN,38.1mm OD x 127mm L

- upper

2шт.

3

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

4

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer

1шт.

5

L77784

PIN

- lower

2шт.

6

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

7

L77785

SPACER

- loader frame

2шт.

8

D27770

WASHER

- hardened

2шт.

L100105

BUCKET - machinery item, Fig. 2 for ordering, 3/4 cubic yard (.57 cubic , Incls. Ref. 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3/4 cubic yard (.57 cubic metre)

1шт.

10

L76451

EDGE

CUTTING EDGE - bucket, 3/4 cubic yard (.57 cubic metre)

1шт.

11

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- bucket, 3/4 cubic yard (.57 cubic metre)

4шт.

12

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

3/4 cubic yard (.57 cubic metre) bucket Hex, 5/8"-11 x 2 1/4", G5

6шт.

13

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3/4 cubic yard (.57 cubic metre) bucket Hex, 5/8"-11 x 2", G5

6шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 3/4 cubic yard (.57 cubic metre) bucket 5/8"

12шт.

15

25-1010

NUT,5/8"-11, G5

3/4 cubic yard (.57 cubic metre) bucket 5/8"-11, G5

12шт.

L77908

TOOTH

ASSEMBLY - bucket, 3/4 cubic yard (.57 cubic metre), Incls. Ref. 16-18

6шт.

16

NSS

NOT SOLD SEPARAT

SHANK - tooth, 3/4 cubic yard (.57 cubic metre) bucket

1шт.

17

D39094

BUCKET TOOTH KEY

PIN - flex, 3/4 cubic yard (.57 cubic metre) bucket

1шт.

18

D51750

BUCKET TOOTH POINT

POINT - tooth, 3/4 cubic yard (.57 cubic metre) bucket

1шт.

L100104

BUCKET - machinery item, Fig. 2 for ordering, 1 cubic yard (.76 cubic metre), Incls. Ref. 19-21

1шт.

19

NSS

NOT SOLD SEPARAT

BUCKET - loader, 1 cubic yard (.76 cubic metre)

1шт.

20

L107436

EDGE

CUTTING EDGE - bucket, 1 cubic yard (.76 cubic metre)

1шт.

Ref. item #20 weld in for the bolt on edge from ship direct is the 15" flat blank ZPC993222 used w/ bolt on edge ZPC9932211 use 5/8" bolts on 6" centers. Cut old edge off inside the radius on each edge and weld in the flat blank. by bb 4/8/96

1шт.

21

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- bucket, 1 cubic yard (.76 cubic metre)

4шт.

22

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

1 cubic yard (.76 cubic metre) bucket Hex, 5/8"-11 x 2 1/4", G5

8шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1 cubic yard (.76 cubic metre) bucket Hex, 5/8"-11 x 2", G5

8шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 1 cubic yard (.76 cubic metre) bucket 5/8"

16шт.

25

25-1010

NUT,5/8"-11, G5

1 cubic yard (.76 cubic metre) bucket 5/8"-11, G5

16шт.

L77908

TOOTH

ASSEMBLY - bucket, 1 cubic yard (.76 cubic metre), Incls. Ref. 26-28

8шт.

26

NSS

NOT SOLD SEPARAT

SHANK - tooth, 1 cubic yard (.76 cubic metre) bucket

1шт.

27

D39094

BUCKET TOOTH KEY

PIN - flex, 1 cubic yard (.76 cubic metre) bucket

1шт.

28

D51750

BUCKET TOOTH POINT

POINT - tooth, 1 cubic yard (.76 cubic metre) bucket

1шт.
