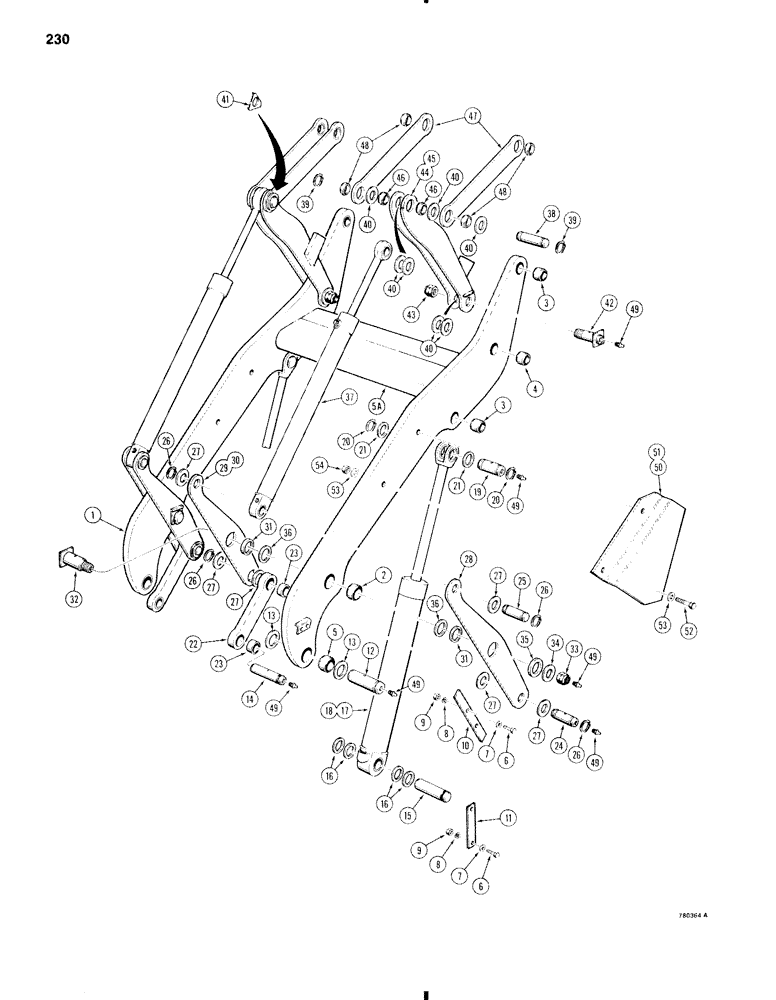

Запчасти Case W11 (232) - LOADER LIFT FRAME AND RELATED PARTS (09) - CHASSIS/ATTACHMENTS

1

L108293

LIFT ARM

FRAME - loader lift, when replacing lift frame on loaders also order (1) L108232 magnet, see Ref. 15 on Figure 228, Incls. Ref. 2-5A, Serial Range: -9141115

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at bellcrank

2шт.

3

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- at lift cylinder and bucket

4шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at guide link

2шт.

5

L77542

BUSHING

- at main frame

2шт.

5a

L111336

PLATE

BRACE - center, welds between loader lift frame arms

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

7

95-8

WASHER,1/2"

flat 1/2"

8шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

10

L77538

PLATE

- pin lock

2шт.

11

L77539

PLATE

- pin lock

2шт.

12

L77535

PIN

- loader frame to main frame

2шт.

13

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2", used as a spacer

1шт.

14

L77536

PIN

- link to main frame

2шт.

15

L77534

PIN

- lift cylinder to main frame

2шт.

16

D27770

WASHER

- hardened

8шт.

17

G101052

CYLINDER ASSY.

CYLINDER - lift, right-hand, parts list Fig. 216

1шт.

18

G101053

CYLINDER ASSY.

CYLINDER - lift, left-hand, parts list Fig. 216

1шт.

19

D34658

PIN,44.45mm OD x 101.6mm L

- lift cylinder to lift frame

2шт.

20

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

21

195-2181

WASHER,1 13/16" x 2 1/2" x .238"

- flat, 1-3/4"

4шт.

22

L73948

LINK ASSY.

LINK - bellcrank to main frame; Incl. Ref 23

2шт.

23

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

2шт.

24

D34656

PIN,38.1mm OD x 101.6mm L

-, Serial Range: bellcrank-link

2шт.

25

D28037

AXLE PIN

PIN - bellcrank to bucket cylinder

2шт.

26

D25279

SNAP RING,M35, Int

- pin retaining

8шт.

27

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer

1шт.

28

L78738

ARM ASSY.

BELLCRANK - outer

2шт.

29

L78736

ARM ASSY.

BELLCRANK - right-hand inner

1шт.

30

L78737

ARM ASSY.

BELLCRANK - left-hand inner, Incls. Ref. 31

1шт.

31

L74094

BUSHING,38.33mm ID x 47.63mm OD x 15.75mm L

- all bellcranks

2шт.

REF: #31 - BUSHING - THESE BUSHING GO IN THE ENDS OF REF # 31 & 32. THE PICTURE IS WRONG IN SHOWING THE BUSHING GOES IN THE CENTER HOLE.

1шт.

32

L73955

PIN

- bellcrank to lift frame

2шт.

33

131-43

LOCK NUT,1 1/2"-12

NUT - hex, self-locking, 1-1/2" - 12 NF

2шт.

34

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

SPACER - washer

1шт.

35

L76643

SPACER

WASHER - special

2шт.

36

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- special

4шт.

37

G101054

CYLINDER

- bucket, parts list Fig. 218

2шт.

38

D32930

PIN,38.1mm OD x 127mm L

- bucket cylinder, rod end

2шт.

39

D25279

SNAP RING,M35, Int

4шт.

40

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

1шт.

41

L100090

INDICATOR

Bucket, If Used

1шт.

42

L74098

PIN

Threaded

2шт.

43

131-43

LOCK NUT,1 1/2"-12

2шт.

44

L79709

LINK

Right-Hand, Guide; Incl. Ref 46

1шт.

45

L79710

LINK

Left-Hand, Guide; Incl. Ref 46

1шт.

46

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

2шт.

47

L100089

LINK

Bucket; Incl. Ref 48

4шт.

48

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

2шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

12шт.

50

L77845

PLATE

Guard, Right-Hand, Lift Cylinder

1шт.

51

L77846

PLATE

Guard, Left-Hand, Lift Cylinder

1шт.

52

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

53

L79179

WASHER

8шт.

54

25-1012

NUT,3/4"-10, G5

4шт.
