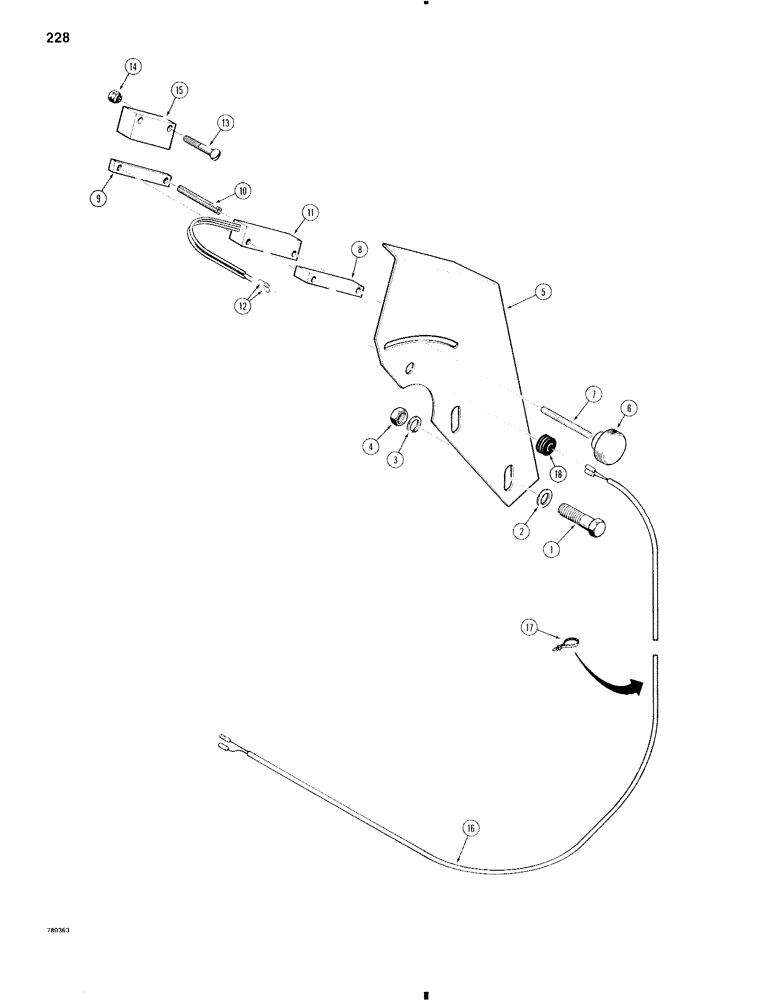

Запчасти Case W11 (228) - LOADER HEIGHT CONTROL PARTS (09) - CHASSIS/ATTACHMENTS

1

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

2шт.

2

95-8

WASHER,1/2"

flat 1/2"

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

5

L79073

PLATE

- switch mounting

1шт.

L79129

KNOB

ASSEMBLY - adjustment control, Incls. Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB - adjustment control

1шт.

7

NSS

NOT SOLD SEPARAT

STUD - adjustment control knob

1шт.

8

L78924

SPACER

- switch

1шт.

9

L78926

PLATE

- switch, Incls. Ref. 10

1шт.

10

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

11

L74809

SWITCH

- loader height control

1шт.

12

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet syle

2шт.

13

71-424

SCREW

- slotted, 1/4" - 20 NC x 1-1/2"

2шт.

14

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

15

L77034

MAGNET

- used before tractor SN 9141115, 1-1/2" (38 mm) between mounting holes

1шт.

15

L108232

MAGNET

- used on tractor SN 9141115 and after, 2-1/4", (57 mm) between mounting holes

1шт.

16

L77347

HARNESS

- loader height control

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

A23870

GROMMET

- harness

1шт.
