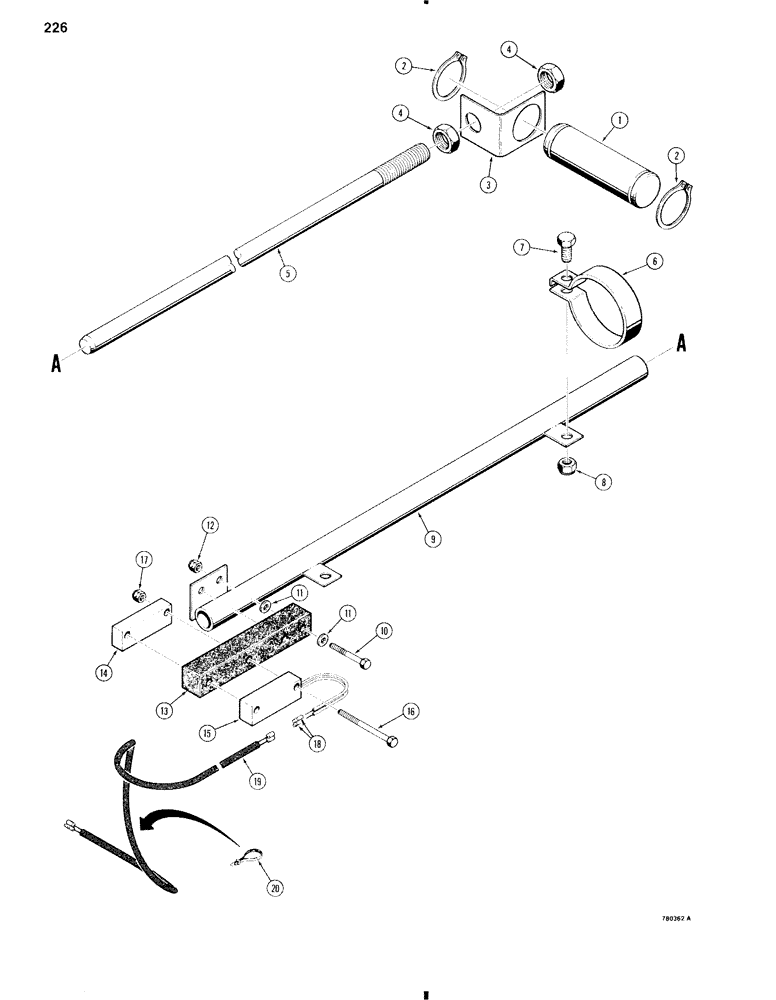

Запчасти Case W11 (226) - LOADER RETURN-TO-DIG PARTS (09) - CHASSIS/ATTACHMENTS

1

D32930

PIN,38.1mm OD x 127mm L

- cylinder pivot

1шт.

2

D25279

SNAP RING,M35, Int

- pin

2шт.

3

L78538

BRACKET

- rod

1шт.

4

25-1412

JAM NUT,Jam, 3/4"-10, G5

JAM NUT - 3/4" - 10 NC

2шт.

5

L76654

ROD

- return-to-dig

1шт.

6

L103262

CLAMP

- tube

2шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2"

2шт.

8

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

9

L76667

HYD TUBE

TUBE - return-to-dig

1шт.

10

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

11

95-4

WASHER,1/4"

- flat, 1/4"

2-4шт.

12

131-650

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

13

L110300

BLOCK

BRACKET - magnet

1шт.

14

L108232

MAGNET

- return-to-dig

1шт.

15

L108231

SWITCH

- return-to-dig, when replacing switch , also order a new magnet (Ref. 14), Serial Range: -9141154

1шт.

16

L101231

SCREW

BOLT - hex head, 1/4" - 20 NC x 3", nylon, replaces steel bolt

2шт.

17

L101200

NUT

- hex, self-locking, 1/4" - 20 NC, nylon, replaces steel nut

2шт.

18

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet style

2шт.

19

L76694

HARNESS

- return-to-dig

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - harness, 15 inch, if used

1шт.
