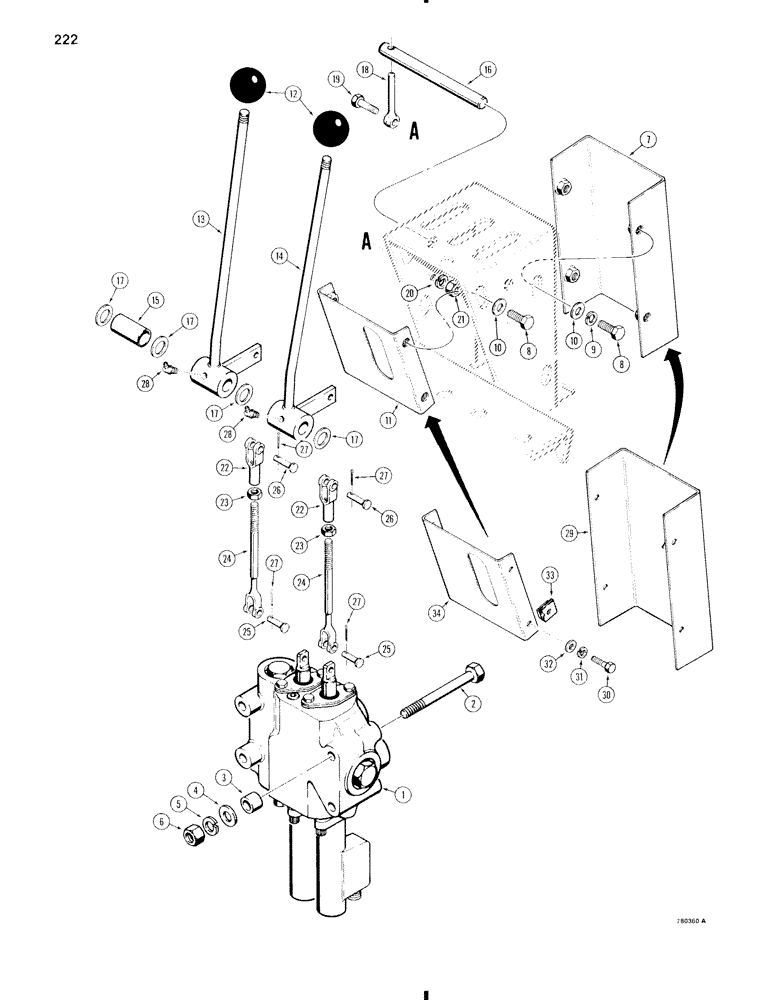

Запчасти Case W11 (222) - LOADER CONTROL VALVE AND LEVERS (TWO SPOOL) (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - 2 spool, parts list Fig. 205

1шт.

2

13-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

3шт.

3

T30946

BUSHING

SPACER - control valve mounting

3шт.

4

95-8

WASHER,1/2"

flat 1/2"

3шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

7

L78261

COVER

CONSOLE - has welded nuts and uses 3/8" hardware, order Ref. 29

1шт.

and 1/4" hardware, Fig. 30 - 33

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with Ref. 7 and 11 only Hex, 3/8"-16 x 1", G5, Full Thd

4-8шт.

9

92-6

LOCK WASHER,3/8"

used with Ref. 7 only 3/8"

4шт.

10

95-6

WASHER,3/8"

- flat, , used with Ref 7 and 11 only 3/8"

4-8шт.

11

L78270

COVER

- cab models, has welded nuts and uses 3/8" hardware

1шт.

order items 34 and 1/4" hardware, Ref. 30 - 33

1шт.

12

L56064

KNOB

- ball, 5/8" - 18 NF, if used

2шт.

12

A23885

KNOB

- ball, 1/2" - 13 NC, if used

2шт.

13

L102852

LEVER

CONTROL LEVER - bucket, 5/8" diameter, if used

1шт.

13

L78720

LEVER

CONTROL LEVER - bucket, 1/2" diameter, if used

1шт.

14

L102856

LEVER

CONTROL LEVER - loader lift, 5/8" diameter, if used

1шт.

14

L78716

LEVER

CONTROL LEVER - loader lift, 1/2" diameter, if used

1шт.

15

L77835

BOSS

SPACER - control lever

1шт.

16

L78279

PIN

SHAFT - lever

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spacer

1шт.

18

L74982

END

PIN - shaft

1шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

22

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8"

2шт.

23

25-156

JAM NUT,Jam, 3/8"-24, G5

JAM NUT - 3/8" - 24 NF

2шт.

24

L78276

ROD

-, Serial Range: lever-valve

2шт.

25

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

2шт.

26

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

28

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT

2шт.

29

L107490

COVER

CONSOLE - uses U-type nuts and 1/4" hardware

1шт.

30

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Used with Ref. 29 and 34 only Hex, 1/4"-20 x 1", G5

4-8шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with Ref. 29 and 34 only 1/4"

4-8шт.

32

95-4

WASHER,1/4"

- flat, , used with Ref. 29 and 34 only 1/4"

4-8шт.

33

131-646

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4" - 20 NC, used with Ref. 29 and 34 only

4-8шт.

34

L107489

COVER

- cab models, uses U-type nuts and 1/4" hardware

1шт.

35

L78085

SEAL

- foam, console, left-hand side, cab models, not shown

1шт.

36

L79122

SEAL

- foam, console, right-hand side, cab models, not shown

1шт.
