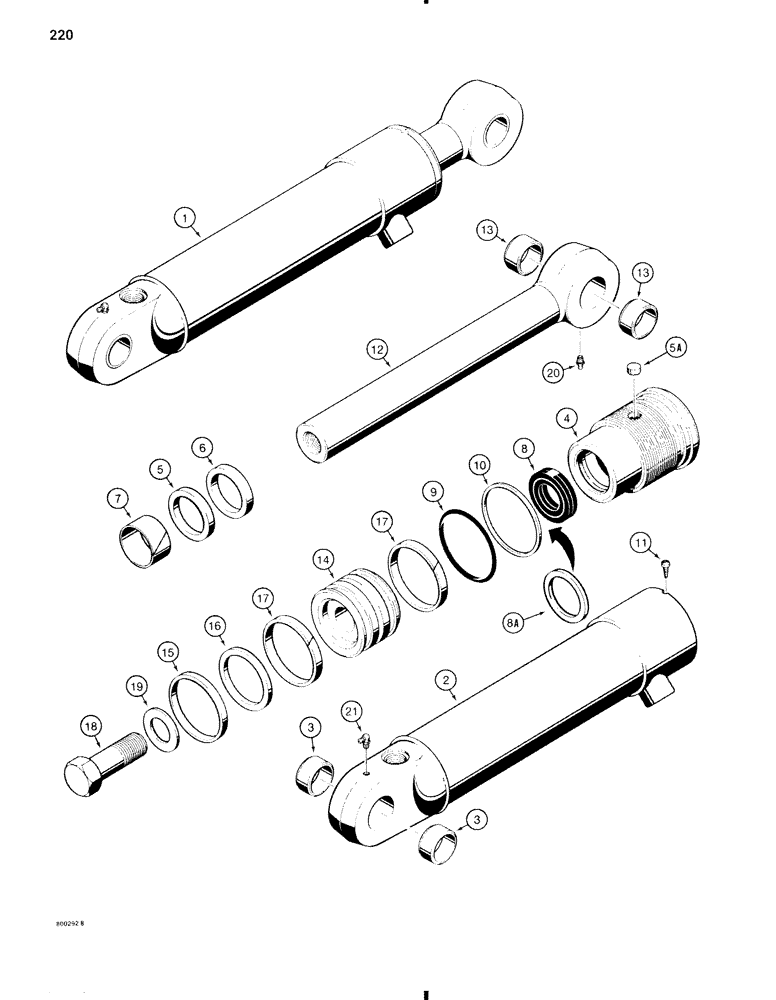

Запчасти Case W11 (220) - G101190 AND G101191 LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

G101190

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, right-hand, 3" (76 mm) ID x 9" (229 mm), Incls. Ref. 2-21

1шт.

stroke, see footnote

1шт.

1

87454017R

REMAN-HYD CYLINDER

W11 CASE UNIT LOADER, CYLINDER ASSEMBLY, clam, right-hand, 3" (76 mm) ID x 9" (229 mm), Reman for New PN G101190

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

G101191

CYLINDER ASSY.

CYLINDER ASSEMBLY - clam, left-hand, 3" (76 mm) ID x 9" (229 mm), Incls. Ref. 2-21

1шт.

stroke, see footnote

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE ASSEMBLY - right-hand cylinder

1шт.

2

G32304

HYD TUBE

TUBE ASSEMBLY - left-hand cylinder

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G104240

GLAND

ASSEMBLY - cylinder, replaces glands without nylon plug, Incls. Ref. 4-10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G34600

RING

RETAINING RING - bushing

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G105549

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N G105549

1шт.

8

D36970

CUP

SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105549

1шт.

8a

G103705

SEAL

- piston rod, narrow, used in addition to item 8 in some glands

1шт.

Part of Seal Kit, P/N G105549

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G105549

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G105549

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required

1шт.

12

G33800

PISTON ROD

ROD ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Incls. Ref. 13

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

G100704

PISTON

- cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit, P/N G105549

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G105549

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of Seal Kit, P/N G105549

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

21

218-55

GREASE FITTING - 90 degree, 1/8" NPT

1шт.

G105549

SEAL

KIT - seal, Includes: ref. nos. 6, 7, 8, 8A, 9, 10, 15, 16, and 17, same as G102405 kit

1шт.

plus item 8A above

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

when nylon plug is used

1шт.
