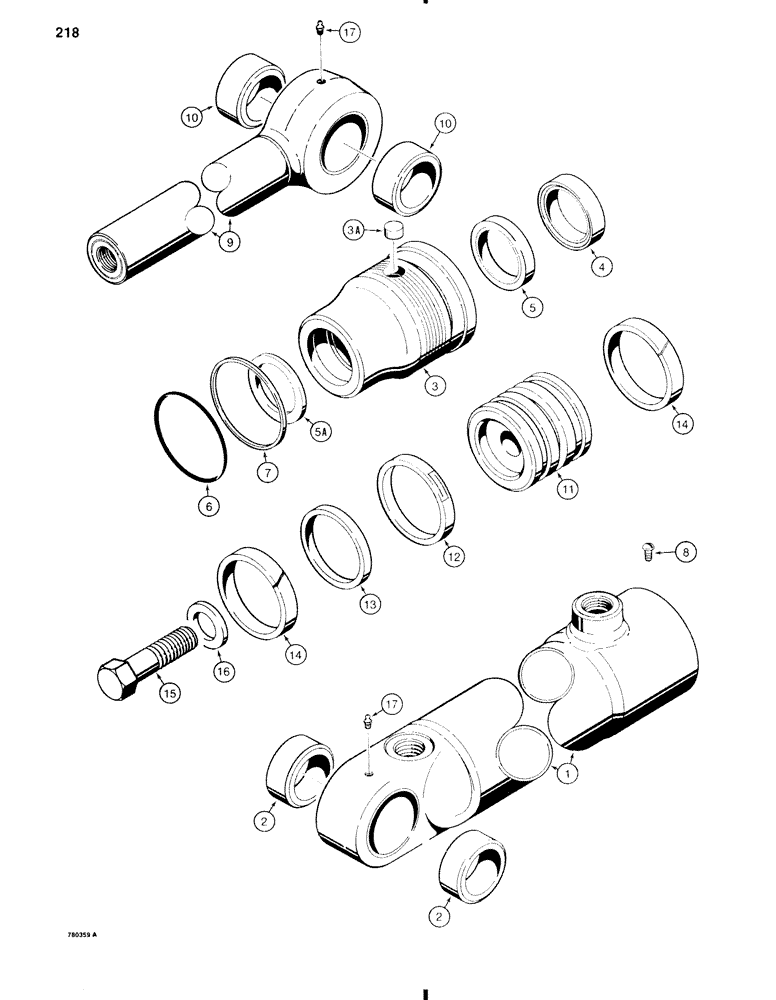

Запчасти Case W11 (218) - G101054 LOADER BUCKET CYLINDER (08) - HYDRAULICS

G101054

CYLINDER

ASSEMBLY - bucket, 2-1/2" (64 mm) ID x 33-9/16" (852 mm) stroke, Incls. Ref. 1-17

1шт.

1

G101134

TUBE,41.37" L

ASSEMBLY - cylinder, Incls. Ref. 2

1шт.

2

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube

2шт.

G104008

GLAND

ASSEMBLY - cylinder, Incl. Ref. 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

Part of Seal Kit, P/N G105550

1шт.

5

D36969

CUP

SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G105550

1шт.

5a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 5 in some glands

1шт.

Part of Seal Kit, P/N G105550

1шт.

6

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G105550

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G105550

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4"

1шт.

9

G101139

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Incls. Ref. 10

1шт.

10

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

11

G100706

PISTON

- cylinder

1шт.

12

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston rod

1шт.

Part of Seal Kit, P/N G105550

1шт.

Seal piston rod, service option - severe heat or cold

1шт.

13

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G105550

1шт.

14

G100714

RING

- wear, piston

2шт.

Part of Seal Kit, P/N G105550

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105550

SEAL

KIT - seal, Includes: ref. nos. 4, 5, 5A, 6, 7, 12, 13, and 14, same as G102406 kit

1шт.

plus item 5A above

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
