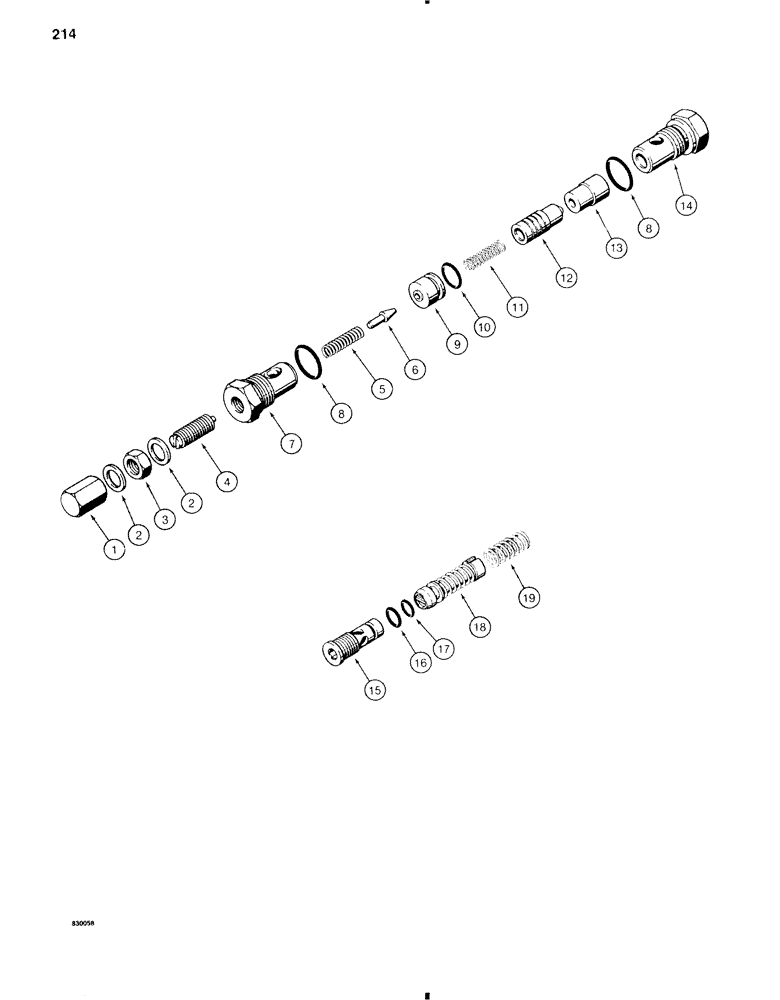

Запчасти Case W11 (214) - LOADER CONTROL VALVE, RELIEF VALVES (08) - HYDRAULICS

1

L32299

NUT

DOME NUT - hex, main relief valve

1шт.

2

D26763

WASHER

- special, main relief valve

2шт.

3

25-158

JAM NUT,Jam, 1/2"-20, G5

JAM NUT - 1/2" - 18 NF, main relief valve

1шт.

4

L32298

ADJUSTMENT SCREW,1/2" - 20 x 1.50"

- special, 1/2" - 18 NF, main relief valve

1шт.

5

D24763

SPRING

- plunger, main relief valve

1шт.

6

D24762

VALVE

PLUNGER - main relief valve

1шт.

7

D82718

BODY

CAP - valve, main relief

1шт.

8

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- cap and plug, main relief valve

2шт.

9

D82716

VALVE

SEAT - plunger, main relief valve

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- seat, main relief valve

1шт.

11

D82724

SPRING

- poppet, main relief valve

1шт.

12

D72745

VALVE

POPPET - main relief valve

1шт.

13

D82715

VALVE

SEAT - poppet, main relief valve

1шт.

14

D82719

PLUG

- main relief valve

1шт.

15

D82714

PLUG - seat, 0.22" (6 mm) diameter end hole, order complete N7100 or N6716 circuit relief valve assembly below, L78075 and L78076 loader control

1шт.

16

D24754

GASKET

O-RING - outer, L78075 and L78076 loader control, circuit relief valve

1шт.

17

A8613

O-RING,0.426" ID x 0.566" OD

- inner, L78075 and L78076 loader control, circuit relief valve

1шт.

18

D82717

CARTRIDGE ASSEMBLY - A port, bucket spool, order N7100, L78075 and L78076 loader control, circuit relief valve

1шт.

18

D82729

CARTRIDGE

ASSEMBLY - B port, bucket spool; A and B ports, L78075 and L78076 loader control, circuit relief valve auxiliary spool, order N6716, L78075 and L78076 loader control, circuit relief valve

1шт.

19

L31739

VALVE SPRING

SPRING - inner, L78075 and L78076 loader control, circuit relief valve

1шт.

N7100

LOCK VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - A port, bucket spool, L104937 and L104938 loader control, circuit relief valve

1шт.

N6716

VALVE

CIRCUIT RELIEF VALVE ASSEMBLY - B port bucket spool; A and B port,, L104937 and L104938 loader control auxiliary spool, L104937 and L104938 loader control, circuit relief valve , Incls. Ref. 15-19

1шт.

15

N6717

PLUG

- seat, 0.44" (11 mm) diameter end hole, L104937 and L104938 loader control, circuit relief valve

1шт.

16

D24754

GASKET

O-RING - outer, L104937 and L104938 loader control, circuit relief valve

1шт.

17

N7330

O-RING

- inner, L104937 and L104938 loader control, circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY - circuit relief valve, L104937 and L104938 loader control

1шт.

19

N6594

VALVE SPRING

SPRING - inner, L104937 and L104938 loader control, circuit relief valve

1шт.
