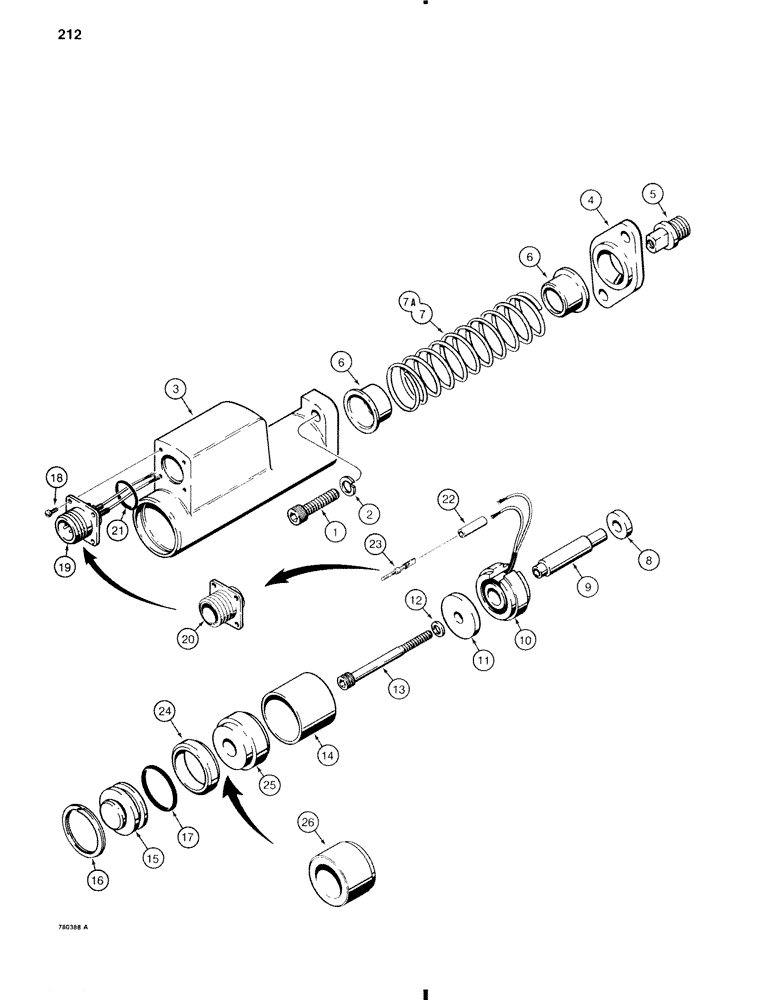

Запчасти Case W11 (212) - LOADER CONTROL VALVE, BUCKET SPOOL DETENT (08) - HYDRAULICS

D80693

DETENT

ASSEMBLY - bucket spool, Incls. Ref. 1-26

1шт.

1

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex socket head, 5/16" - 18 NC x 1-1/4"

2шт.

2

92-5

LOCK WASHER,5/16"

2шт.

3

N9063

COVER ASSY

COVER - detent

1шт.

4

D80682

PLATE

- retaining

1шт.

5

D80681

PLUG

- spool end

1шт.

6

D24777

COLLAR

SEAT - spring

2шт.

7

D80692

SPRING

CENTERING SPRING - spool, used with Ref. 24 and 25 only

1шт.

7a

D24776

VALVE SPRING

CENTERING SPRING - spool, used with Ref. 26 only

1шт.

8

D80685

SPACER

- washer

1шт.

9

D80687

SPACER

- tube

1шт.

10

D80688

SOLENOID

COIL - magnetic detent

1шт.

11

D80689

ARMATURE

WASHER - magnetic detent

1шт.

12

D80686

SPACER

- sleeve

1шт.

13

61-448

HEX SOC SCREW,1/4"-20 x 3"

BOLT - hex, socket head, 1/4" - 20 NC x 3"

1шт.

14

D82711

SPACER

- sleeve

1шт.

15

D80683

PLUG

- end

1шт.

16

D80691

SNAP RING,#150, 1.567, Int, Spiral

RING - retaining

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- detent assembly

1шт.

18

187-1709

SELF-TAP SCREW,Slotted Pan Hd, #4 x 3/8"

SCREW - self-tapping, No. 4 - 40 NC x 3/8"

4шт.

19

D80694

CONNECTION,ELECTRIC

CONNECTOR - electrical receptacle, does not have replaceable pins, if used

1шт.

20

N7172

CONNECTOR, ELEC

CONNECTOR - uses replaceable pins, if used

1шт.

21

S16824

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- connector

1шт.

22

D83095

ELECTRICAL WIRE

CONNECTOR - wire

2шт.

23

N7173

TERMINAL STRIP

PIN - connector, used with Ref. 20 only

2шт.

24

D82713

SPACER

- outer, used with Ref. 7 and 25 only

1шт.

25

D82712

SPACER

- inner, used with Ref. 7 and 24 only

1шт.

26

N6601

SPACER

- one piece, used with Ref. 7A only

1шт.
